DTC 3-6: Pedal Angle Sensor

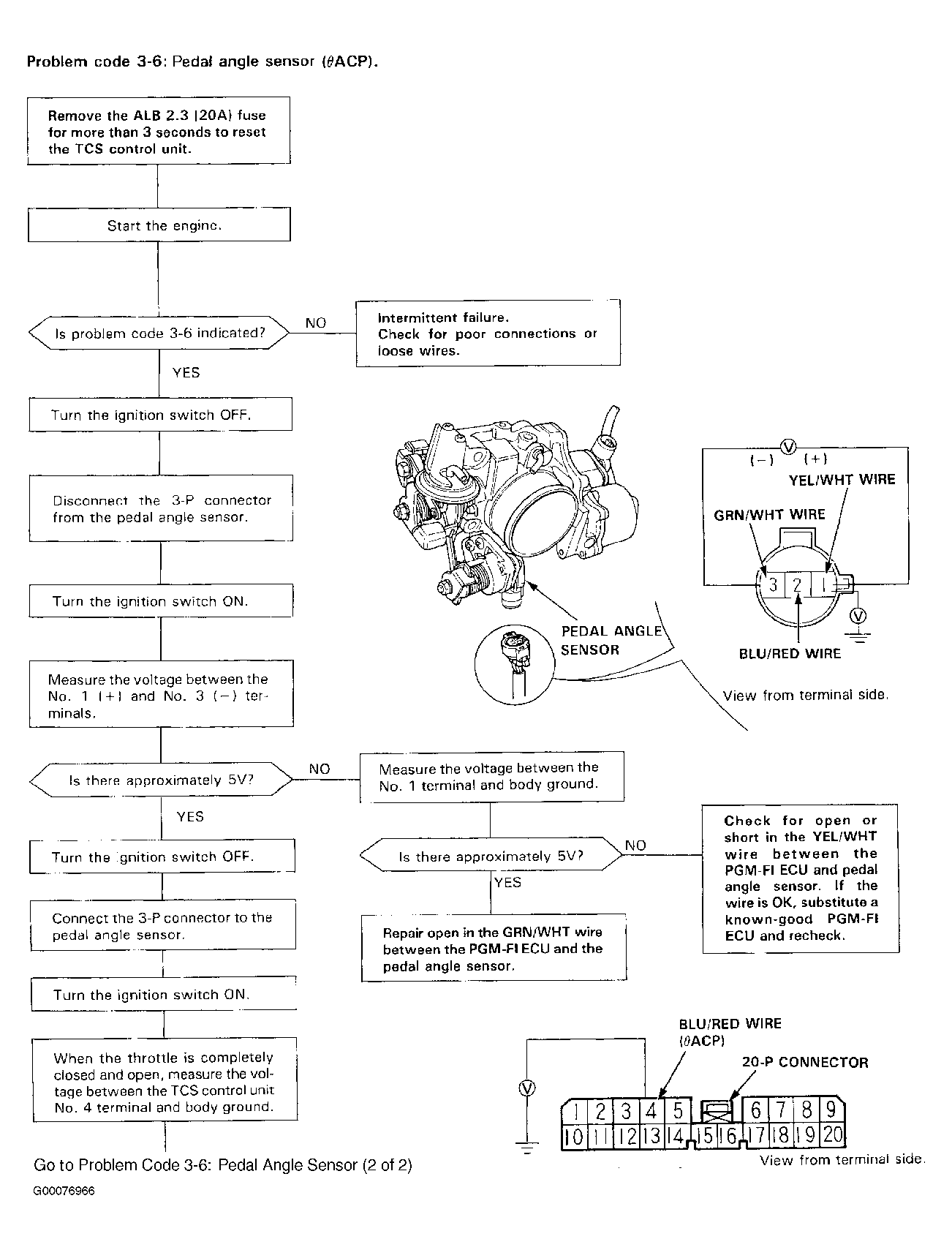

Fig 1: Problem Code 3-6: Pedal Angle Sensor (1 Of 2)
G00076966Courtesy of AMERICAN HONDA MOTOR CO., INC.

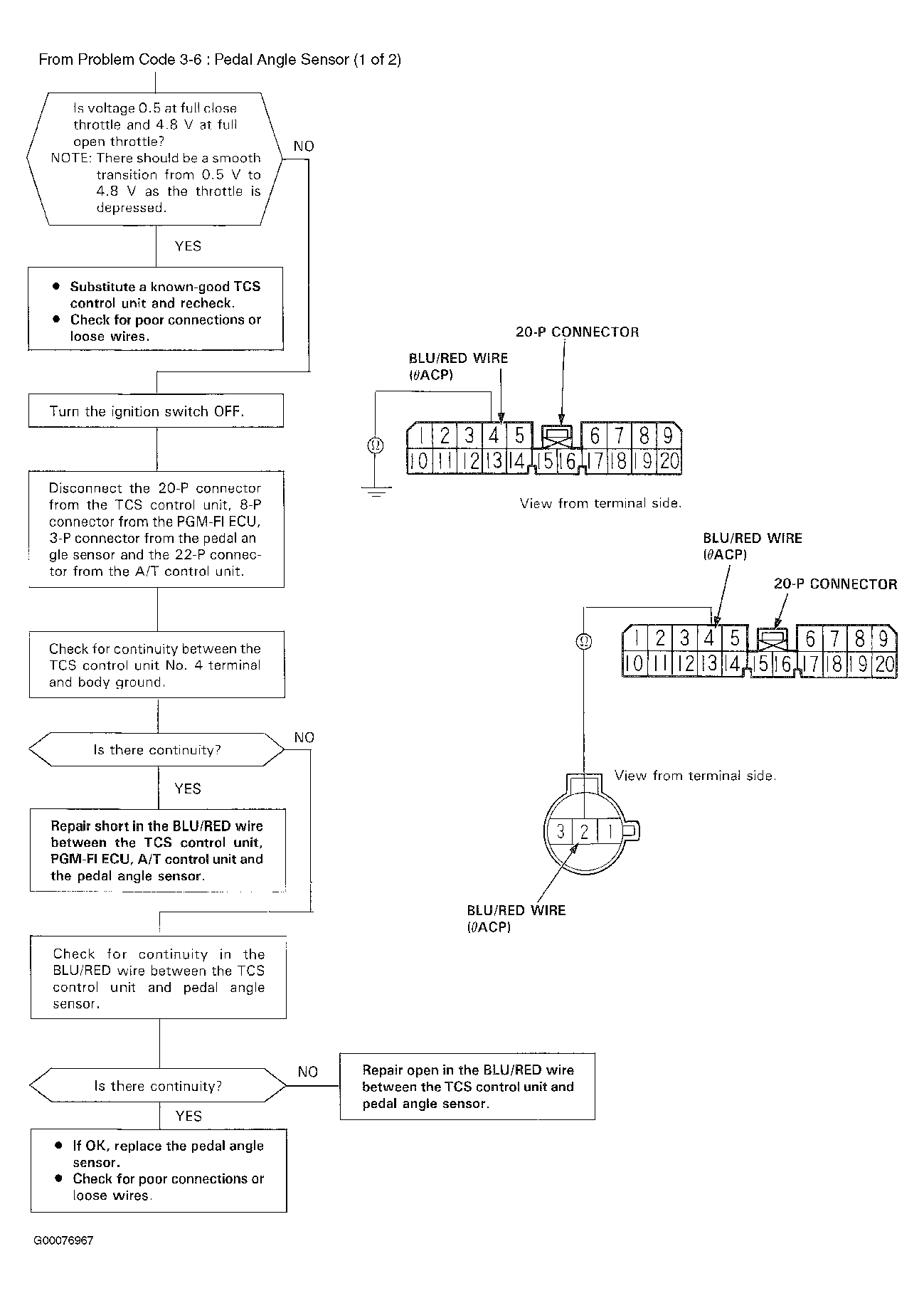

Fig 2: Problem Code 3-6: Pedal Angle Sensor (2 Of 2)
G00076967Courtesy of AMERICAN HONDA MOTOR CO., INC.
