Driver's Switch

  1. Remove the door trim panel. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION.
  2. Check for continuity between the terminals in each switch position according to the tables. See Fig 1 .

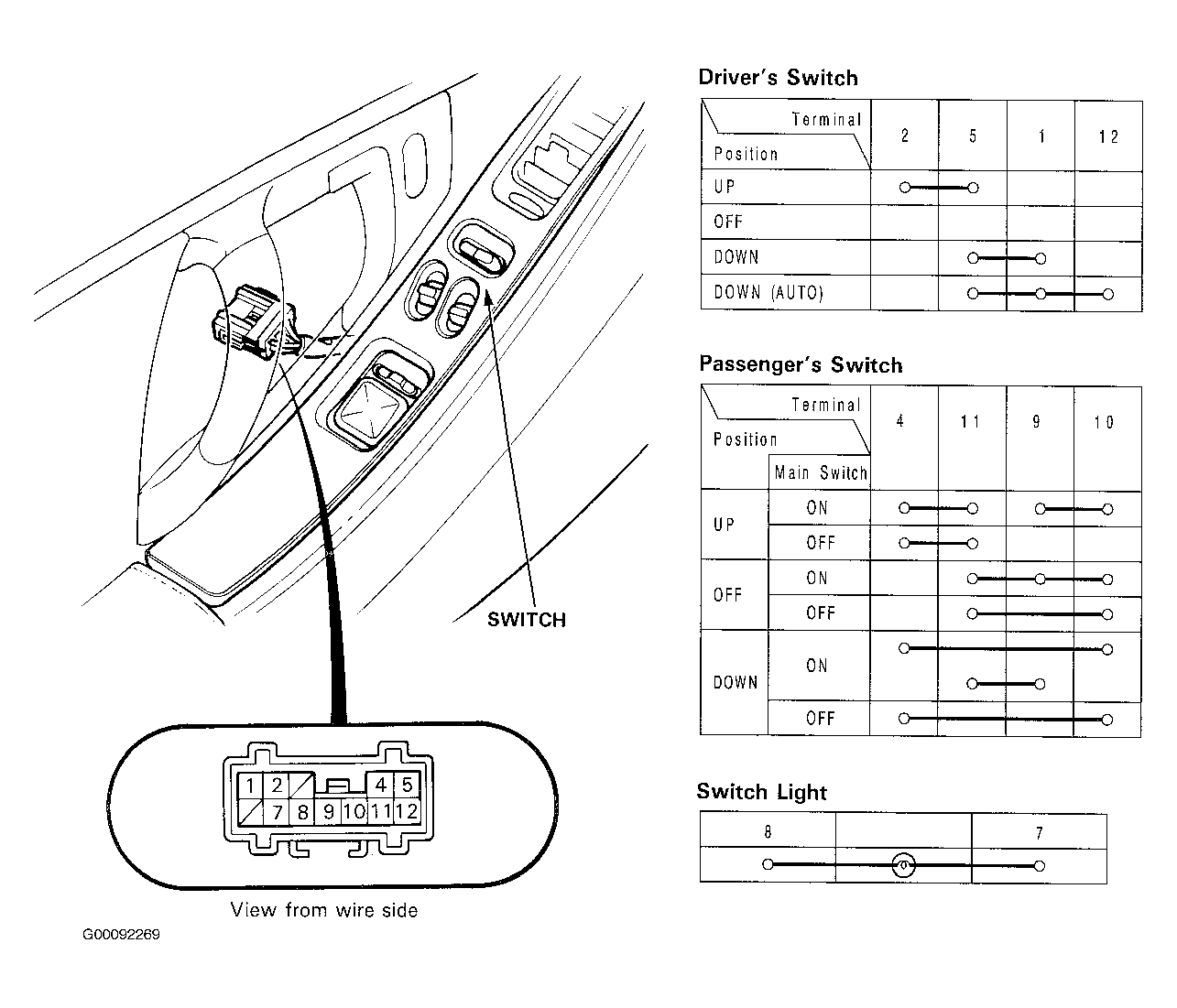

Fig 1: Testing Driver's Switch
G00092269Courtesy of AMERICAN HONDA MOTOR CO., INC.
