Legend & Vigor

  1. Disable air bag system. See appropriate AIR BAG article in the ACCESSORIES/SAFETY EQUIPMENT Section. Connect SRS Test Harness "C" (07MAZ-SP00600) to cable reel 7-pin connector. Using a DVOM, check for continuity between SRS Test Harness "C" connector terminal No. 2 (Light Green/Red wire on cable reel harness) and terminal No. 3 (Blue/Red wire on cable reel harness) with SET pressed. See Fig 1 . Continuity should be present. If continuity is present, go to next step. If continuity is not present, go to step 4).
  2. Using a DVOM, check for continuity between SRS Test Harness "C" connector terminal No. 1 (Light Green/Black wire on cable reel harness) and terminal No. 3 (Blue/Red wire on cable reel harness) with RESUME pressed. See Fig 1 . Continuity should be present. If continuity is present, go to next step. If continuity is not present, go to step 4).
  3. Using a DVOM, check for continuity between SRS Test Harness "C" connector terminal No. 1 (Light Green/Black wire on cable reel harness) and terminal No. 3 (Blue/Red wire on cable reel harness) with CANCEL pressed. See Fig 1 . Check for continuity between SRS Test Harness "C" connector terminal No. 2 (Light Green/Red wire on cable reel harness) and terminal No. 3 (Blue/Red wire on cable reel harness) with CANCEL pressed. See Fig 1 . Continuity should be present at both sets of terminals. If continuity is present, SET/RESUME/CANCEL switch and cable reel are functioning properly. If continuity is not present, go to next step.

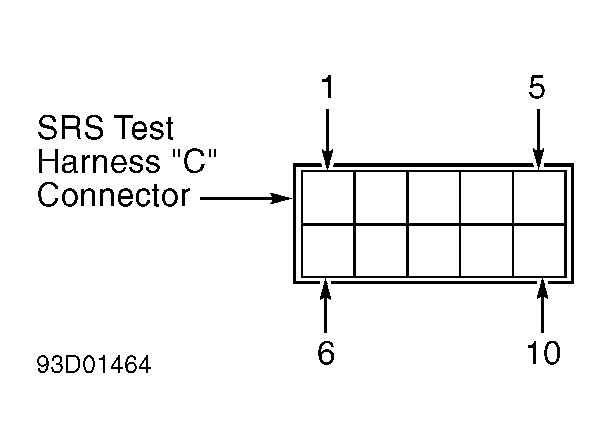

    Fig 1: SRS Test Harness "C" Terminal ID (Legend & Vigor)
    G93D01464Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove SET/RESUME/CANCEL switch from steering wheel. See SET/RESUME/CANCEL SWITCH under REMOVAL & INSTALLATION  . If testing Legend, go to next step. If testing Vigor, go to step 8).
  5. Using a DVOM, check for continuity between SET/RESUME/CANCEL switch terminals "B" and "C" with SET pressed. See Fig 2 . Continuity should be present. If continuity is present, go to next step. If continuity is not present, replace malfunctioning SET/RESUME/CANCEL switch.
  6. Using a DVOM, check for continuity between SET/RESUME/CANCEL switch terminals "A" and "C" with RESUME pressed. See Fig 2 . Continuity should be present. If continuity is present, go to next step. If continuity is not present, replace malfunctioning SET/RESUME/CANCEL switch.
  7. Using a DVOM, check for continuity between SET/RESUME/CANCEL switch terminals "A" and "C" with CANCEL pressed. See Fig 2 . Check for continuity between SET/RESUME/CANCEL switch terminals "B" and "C" with CANCEL pressed. Continuity should be present at both sets of terminals. Go to step 11) if continuity is present. If continuity is not present, replace malfunctioning SET/RESUME/CANCEL switch. See SET/RESUME/CANCEL SWITCH under REMOVAL & INSTALLATION  .

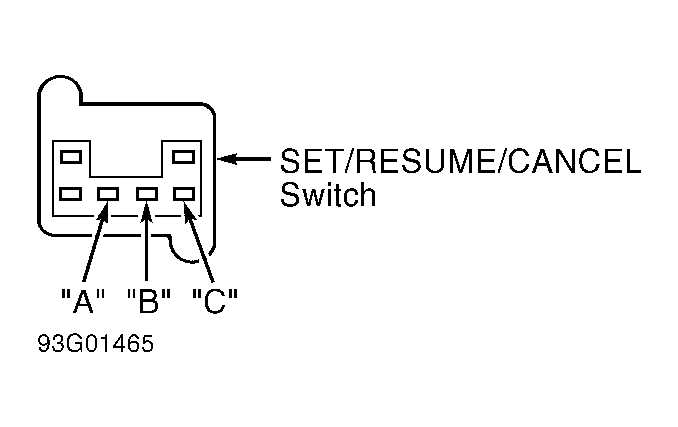

    Fig 2: SET/RESUME/CANCEL Switch Terminal ID (Legend)
    G93G01465Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Using a DVOM, check for continuity between SET/RESUME/CANCEL switch terminals "A" or "A' " and "C" with SET pressed. See Fig 3 . Continuity should be present. If continuity is present, go to next step. If continuity is not present, replace malfunctioning SET/RESUME/CANCEL switch.
  9. Using a DVOM, check for continuity between SET/RESUME/CANCEL switch terminals "A" or "A' " and "B" with RESUME pressed. See Fig 3 . Continuity should be present. If continuity is present, go to next step. If continuity is not present, replace malfunctioning SET/RESUME/CANCEL switch.
  10. Using a DVOM, check for continuity between SET/RESUME/CANCEL switch terminals "A" or "A' " and "B" with CANCEL pressed. See Fig 3 . Check for continuity between SET/RESUME/CANCEL switch terminals "A" or "A' " and "C" with CANCEL pressed. Continuity should be present at both sets of terminals. If continuity is present, go to next step. If continuity is not present, replace malfunctioning SET/RESUME/CANCEL switch. See SET/RESUME/CANCEL SWITCH under REMOVAL & INSTALLATION  .
  11. Replace malfunctioning cable reel. See CABLE REEL under REMOVAL & INSTALLATION  .

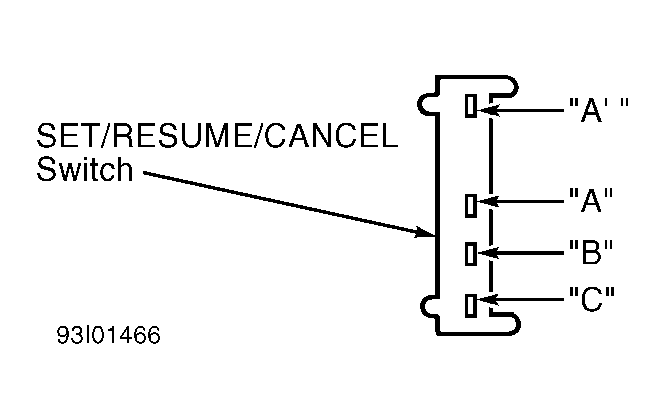

Fig 3: SET/RESUME/CANCEL Switch Terminal ID (Vigor)
G93I01466Courtesy of AMERICAN HONDA MOTOR CO., INC.
