Wiring Diagrams

For 1992 model wiring diagrams, See appropriate chassis wiring diagram in the WIRING DIAGRAMS section.

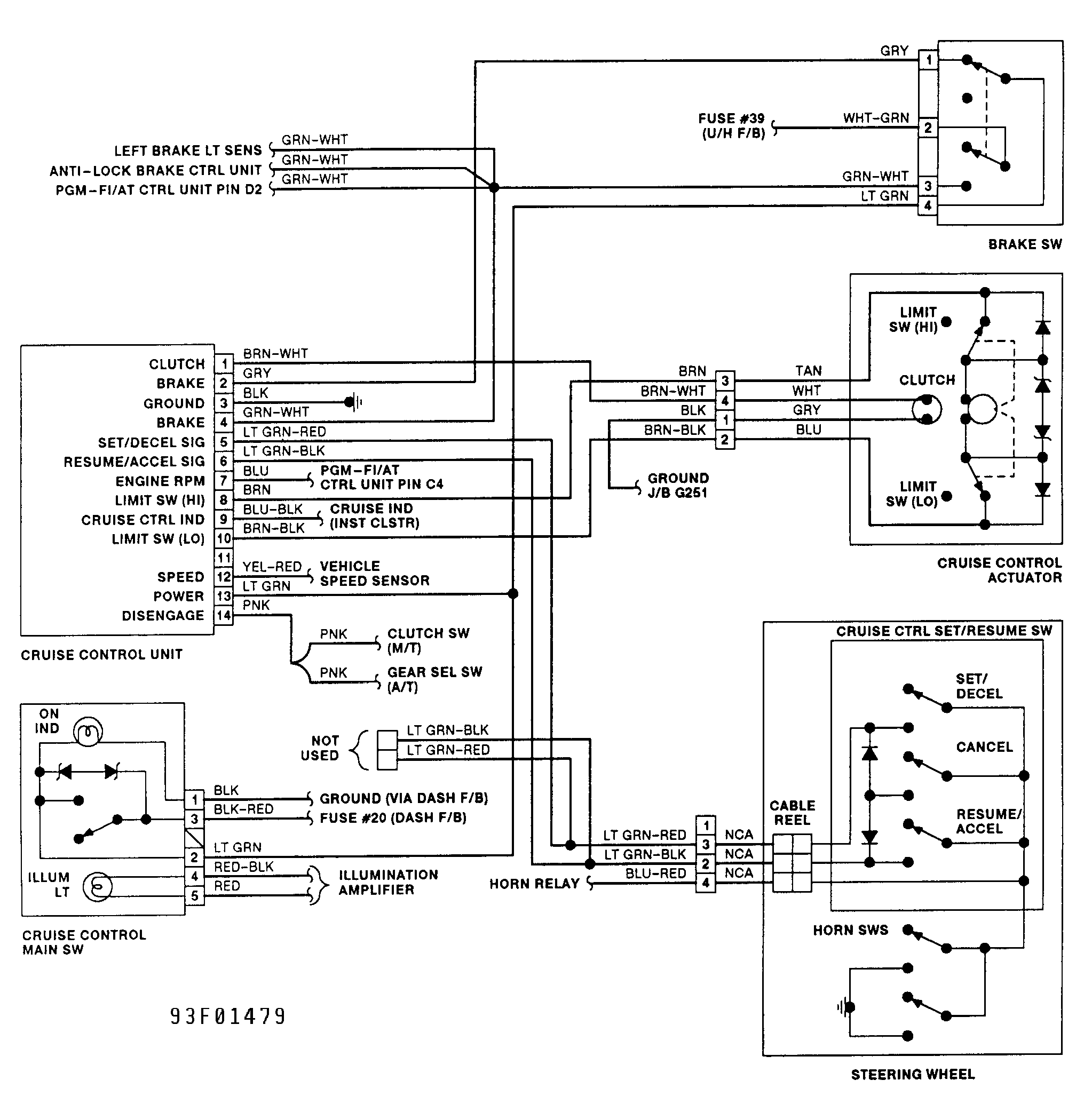

Fig 1: Cruise Control System Wiring Diagram (1991 Integra)

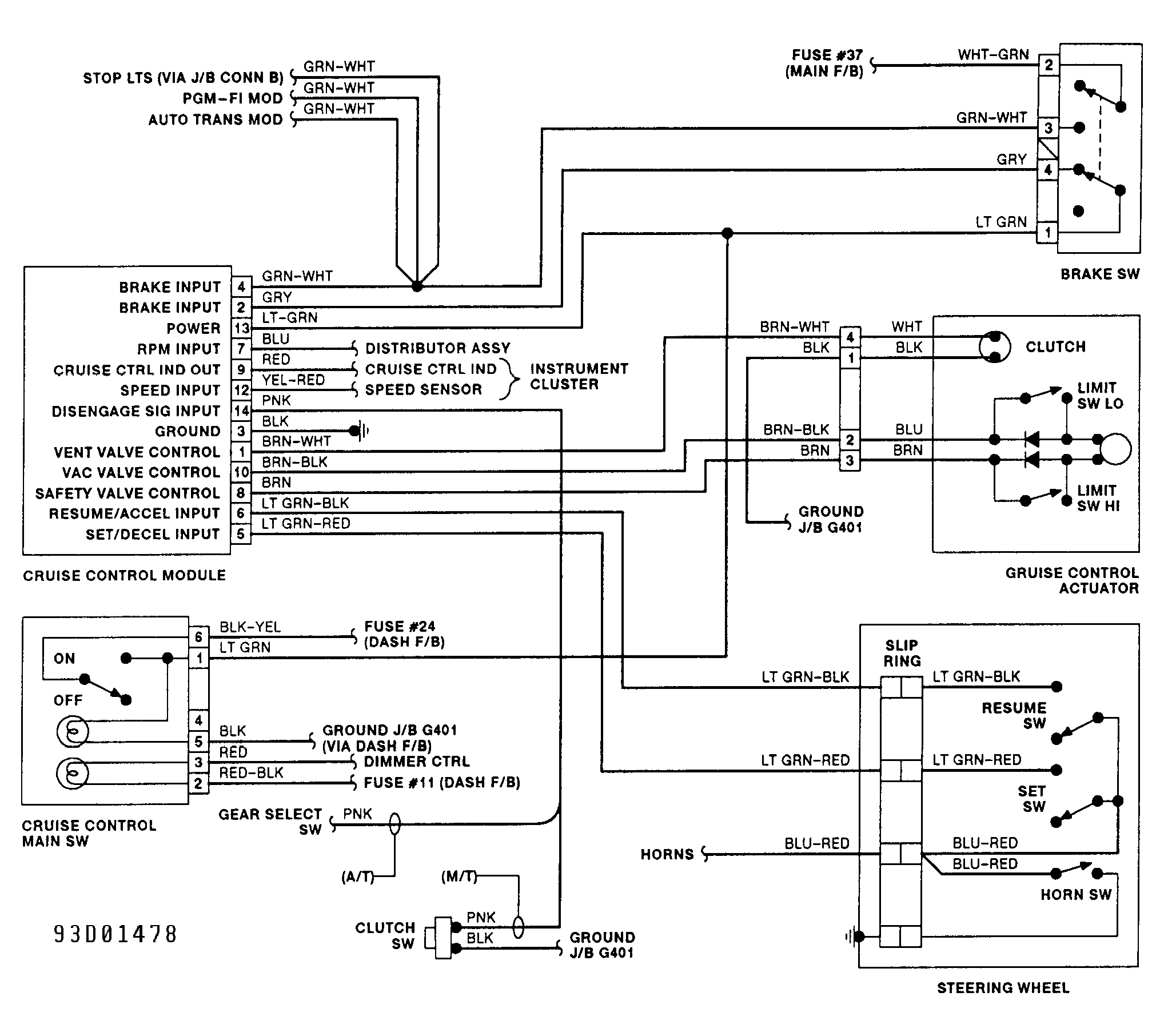

Fig 2: Cruise Control System Wiring Diagram (1991 Legend)
