Power Steering Pump: Reassembly
- Check pump bearing for excessive play. Replace bearing if defective. Install new bearing with shielded side facing down. Coat new oil seal with Power Steering Grease (08733-B070E
). Using hand pressure, install oil seal. Install pump seal spacer and pump drive shaft.

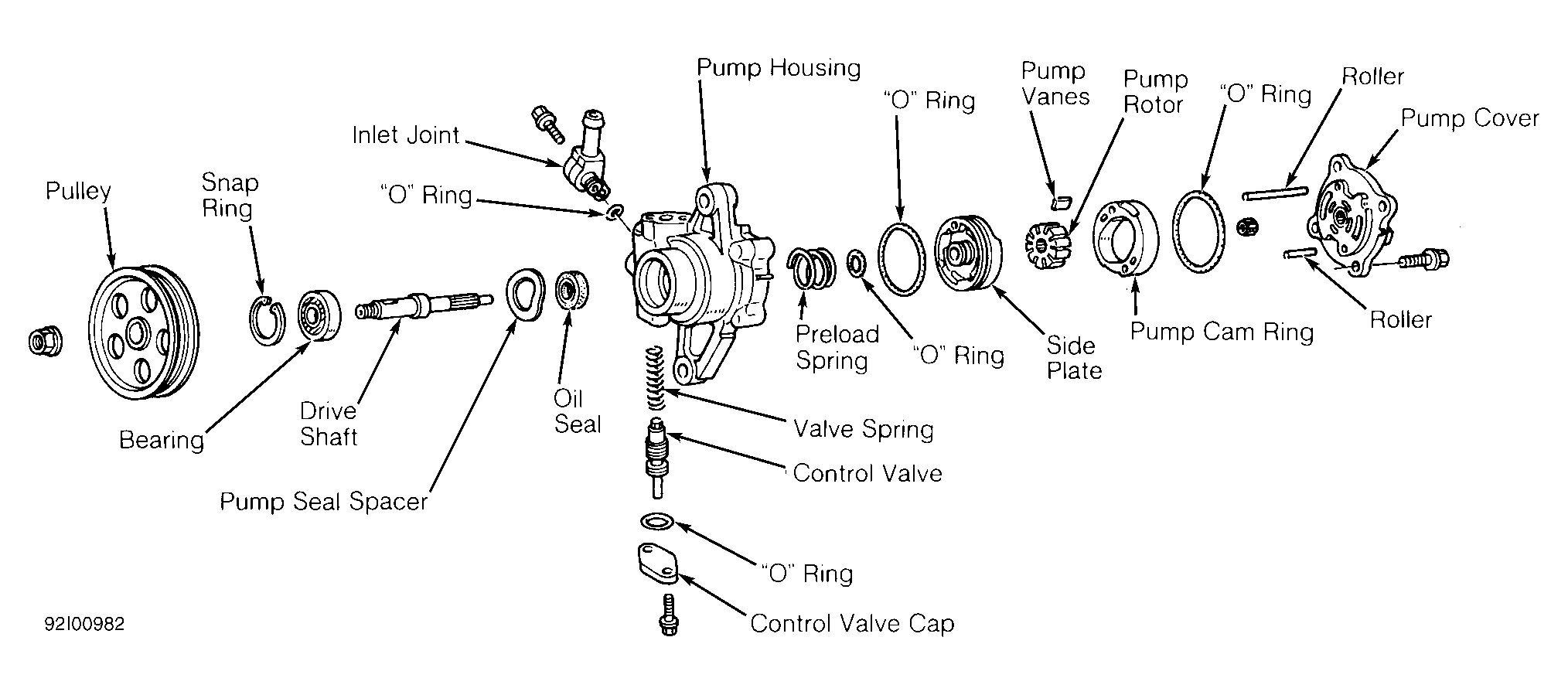

- Install drive shaft snap ring. Oil and install new "O" rings on side plate. Install preload spring in pump housing. Install one roller into hole in pump housing. Align hole in side plate with roller, and install side plate. See Fig 1. Install remaining roller in side plate.
- Install pump cam ring with "0" (zero) mark on cam ring facing upward. Install pump rotor onto drive shaft with "0" (zero) mark on rotor facing upward. Install vanes into rotor grooves. Ensure round end of vane faces toward cam ring. To complete reassembly, reverse disassembly. Ensure pump turns smoothly when rotating pump pulley.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
