Lights-On Reminder

For testing procedure, see Fig 1 .

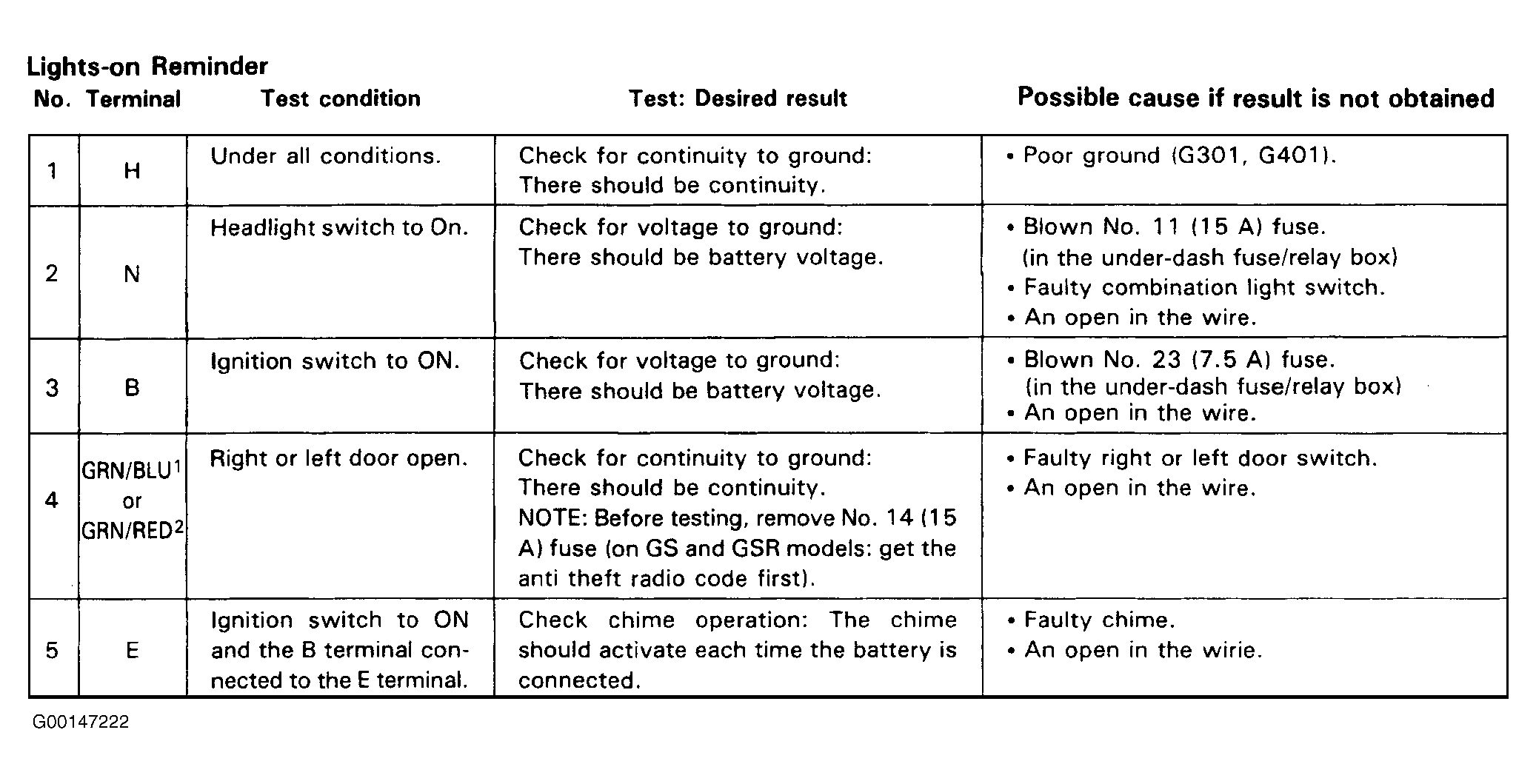

Fig 1: Light-On Warning System Input Test
G00147222Courtesy of AMERICAN HONDA MOTOR CO., INC.
