Wiring Diagrams - Vigor

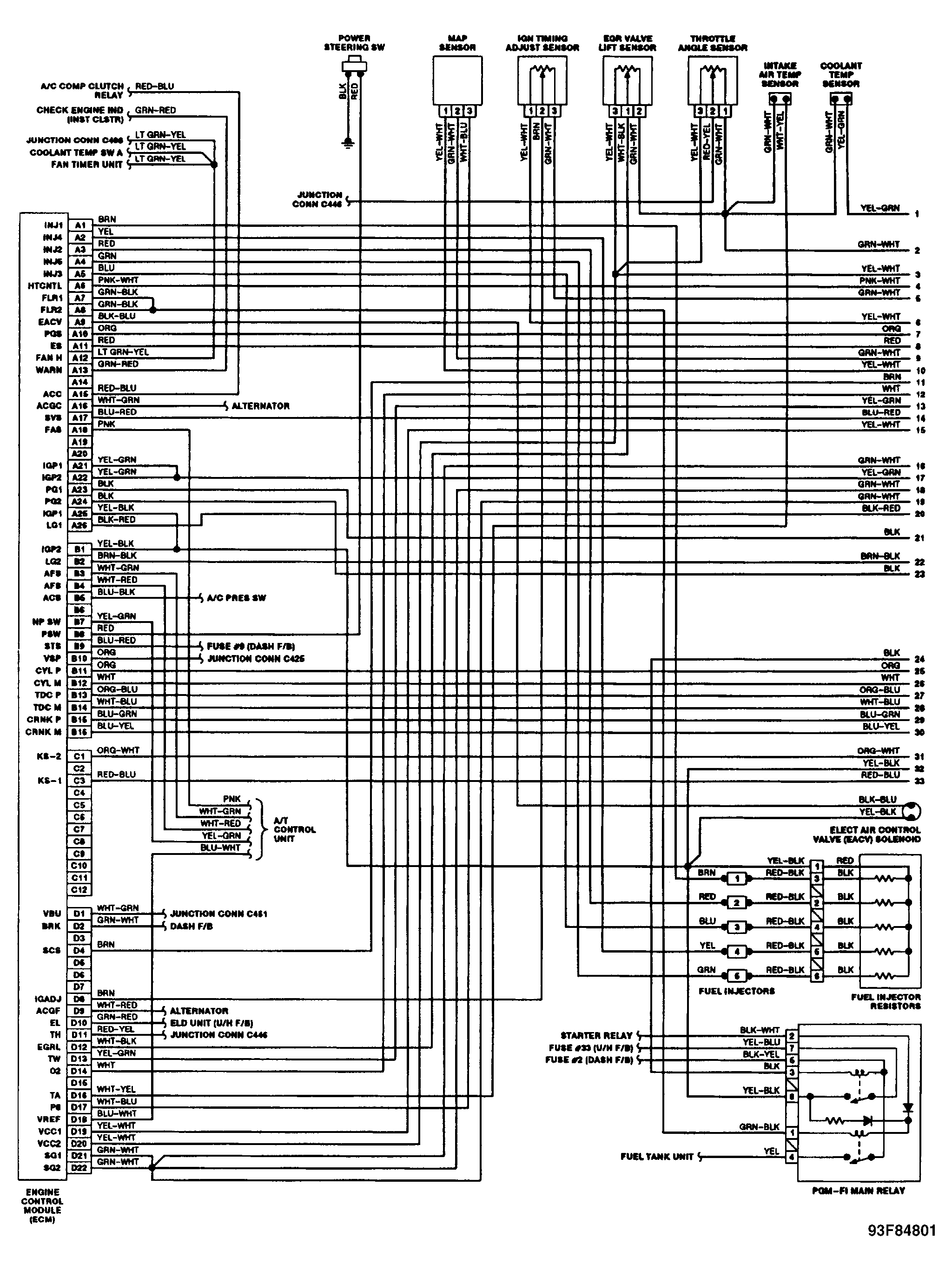

Fig 1: Wiring Diagram (Vigor 2.5L - 1 Of 2)

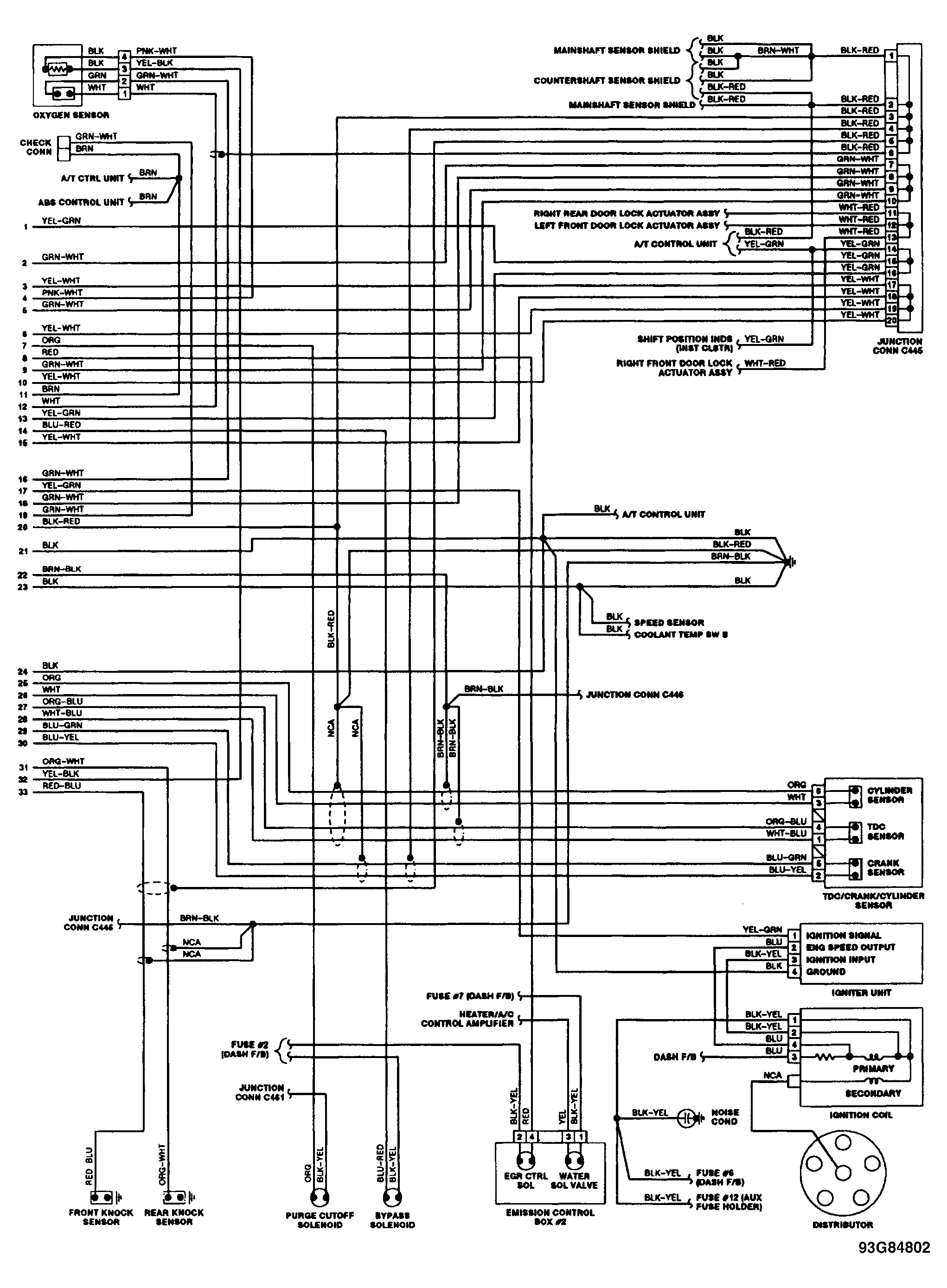

Fig 2: Wiring Diagram (Vigor 2.5L - 2 Of 2)
