Security Control Module Input Test

NOTE: Different wires with the same color have been a suffix number. For example, Yellow/Green(1) and Yellow/Green(2) are not the same wires.

Remove driver's side instrument panel lower cover. Disconnect security system control module 16-pin and 22-pin connectors. Inspect connectors to ensure terminals are making good contact. If terminals are bent, loose or corroded, repair as necessary and recheck system. If terminals are okay, use a Digital Volt/Ohmmeter to perform SECURITY CONTROL MODULE INPUT TEST . See Fig 1 -Fig 4 . If input test is okay, replace control module.

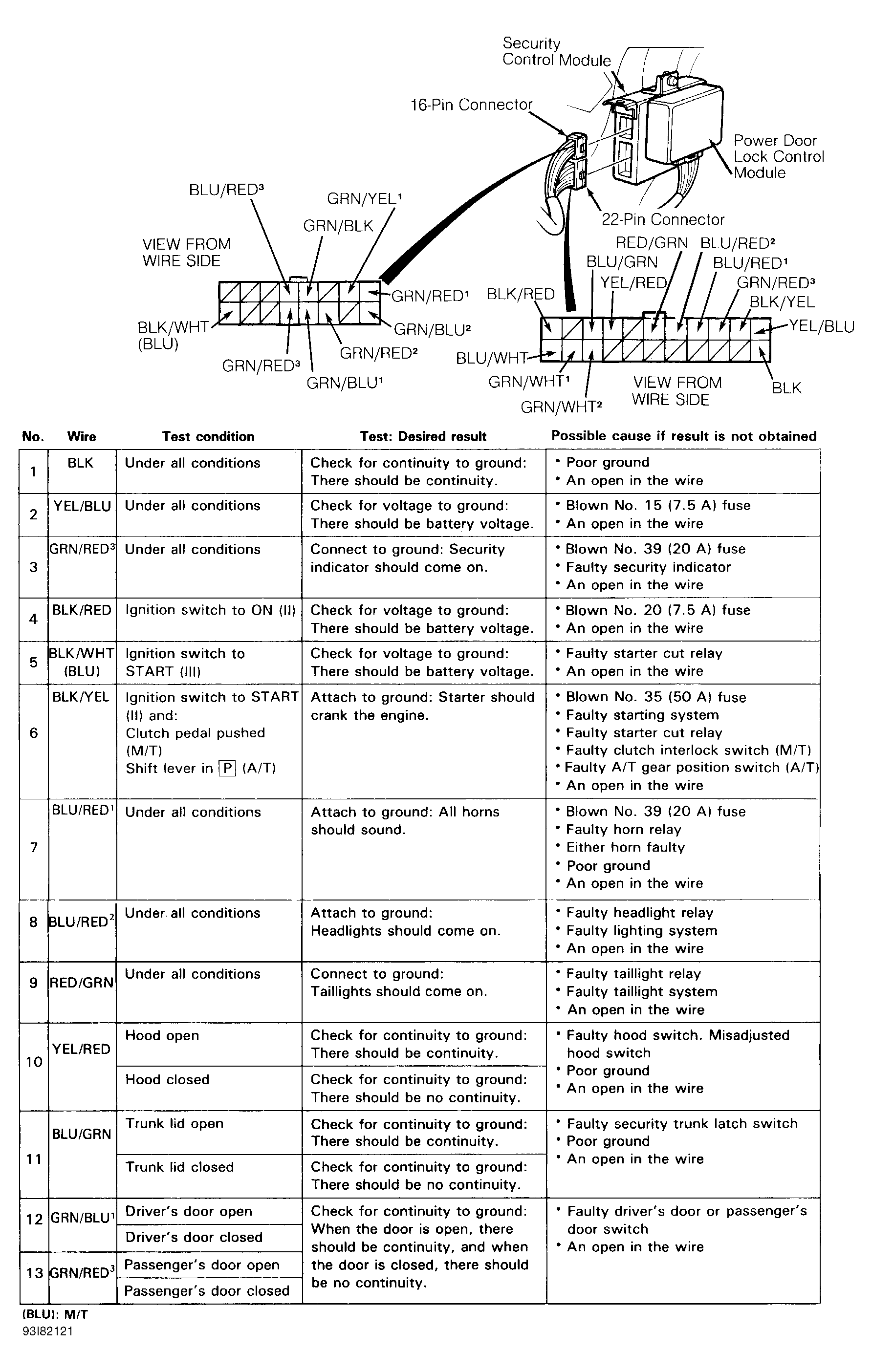

Fig 1: Security Control Module Input Test (Legend Coupe - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

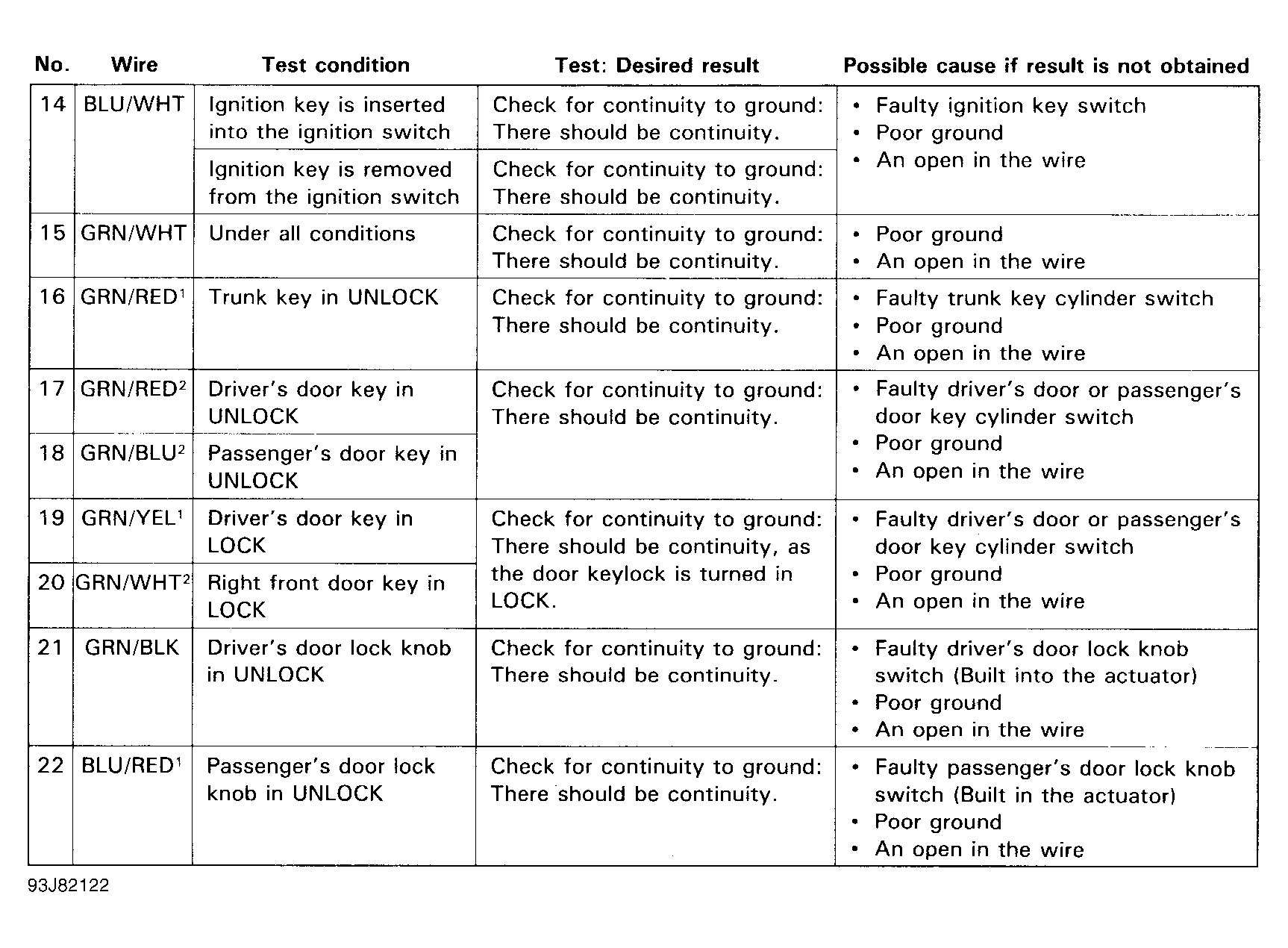

Fig 2: Security Control Module Input Test (Legend Coupe - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Security Control Module Input Test (Legend Sedan - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Security Control Module Input Test (Legend Sedan - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
