Entry Light Control System

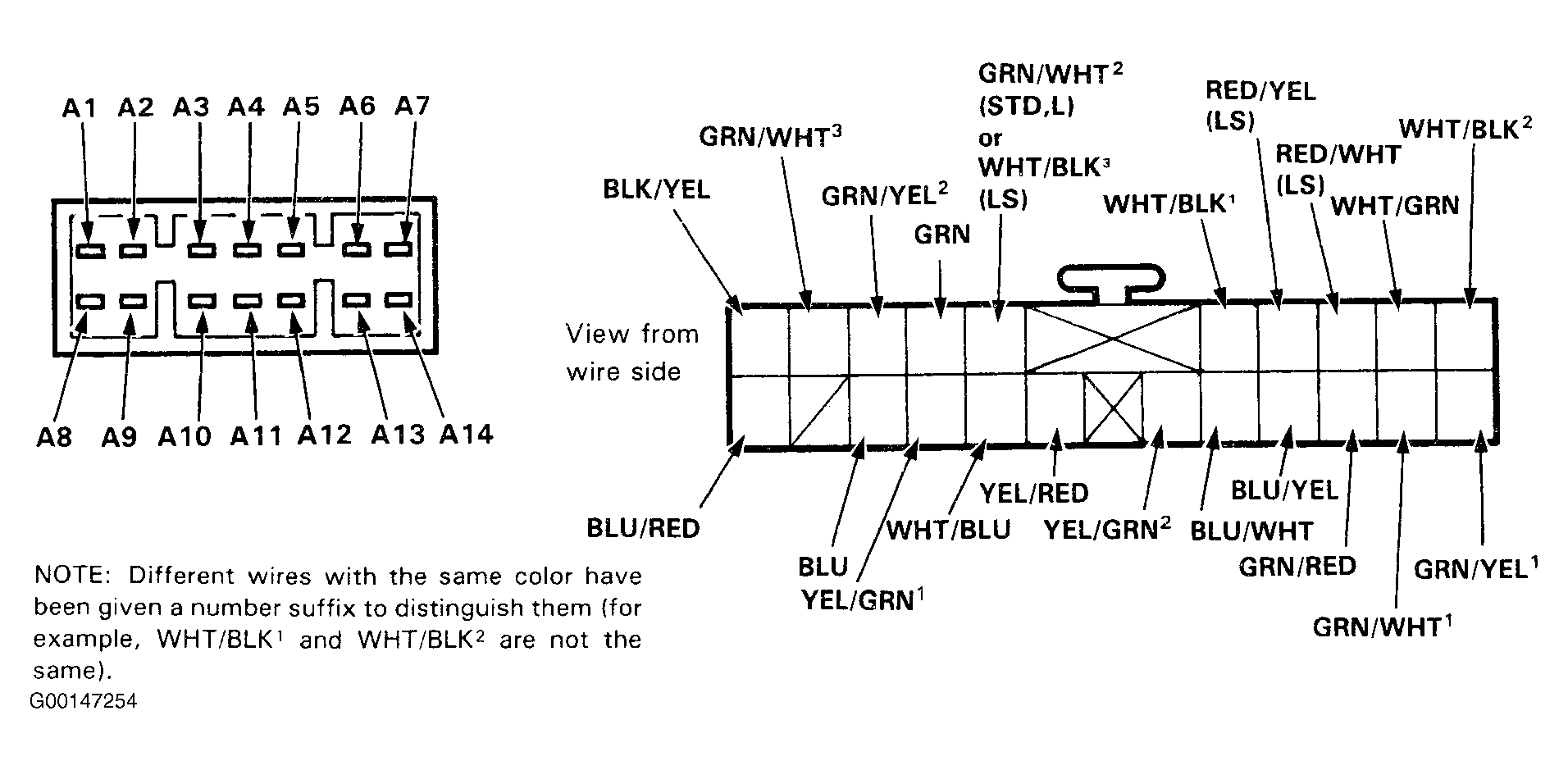

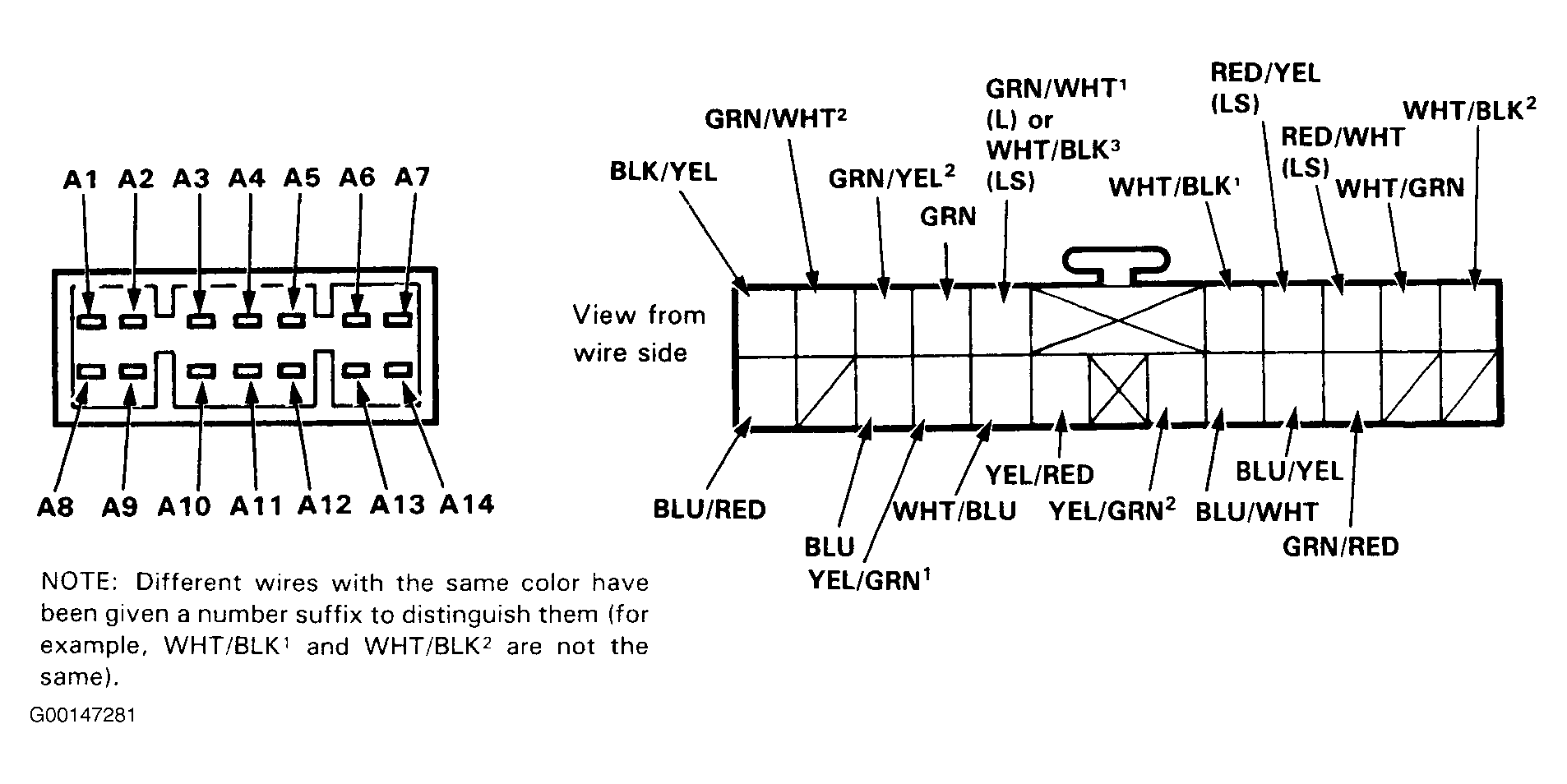

NOTE: See Figure or Figure for connector terminal identification.

For testing procedures, see Fig 1 and Fig 2 .

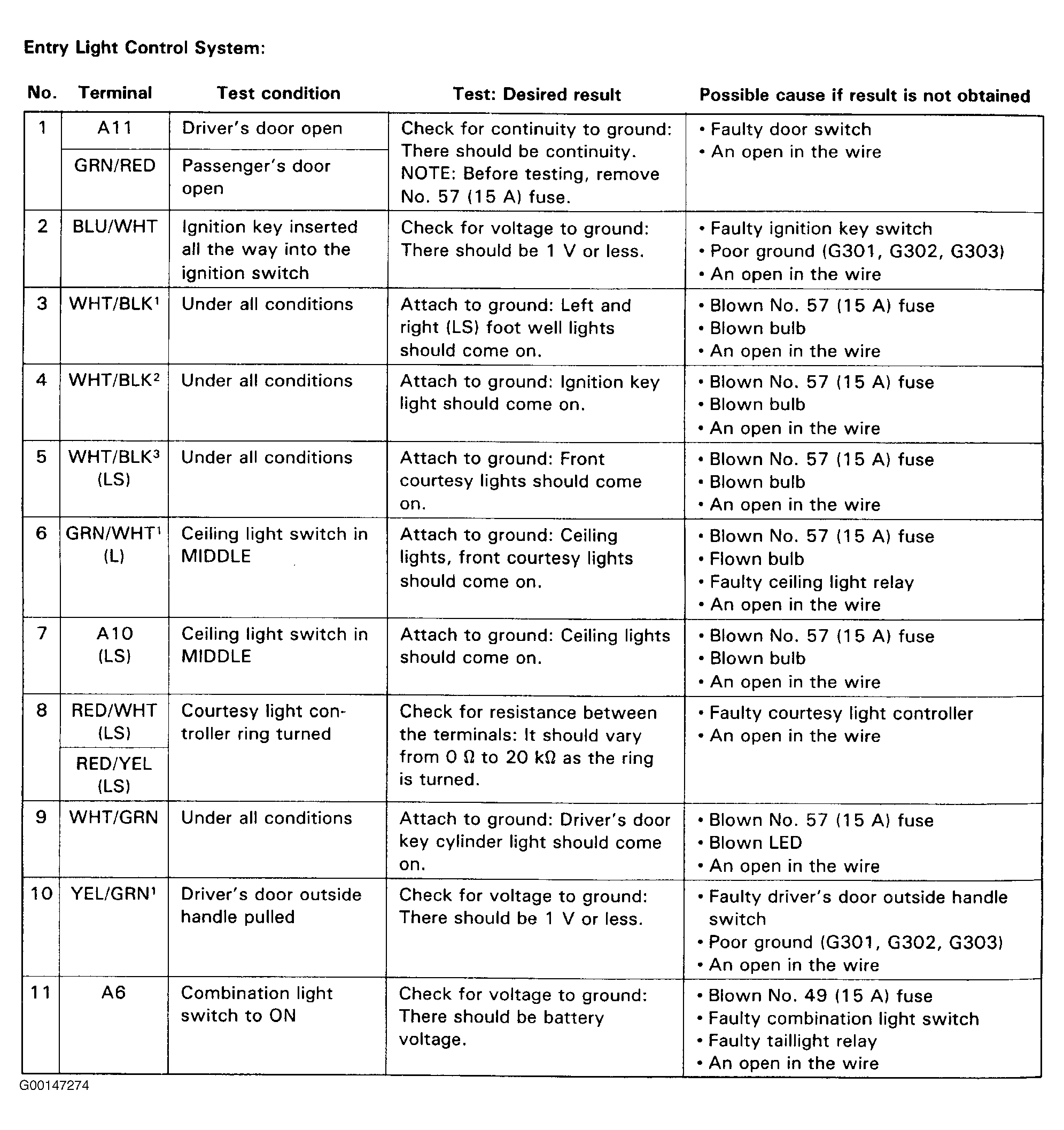

Fig 1: Entry Light Control System Input Test (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

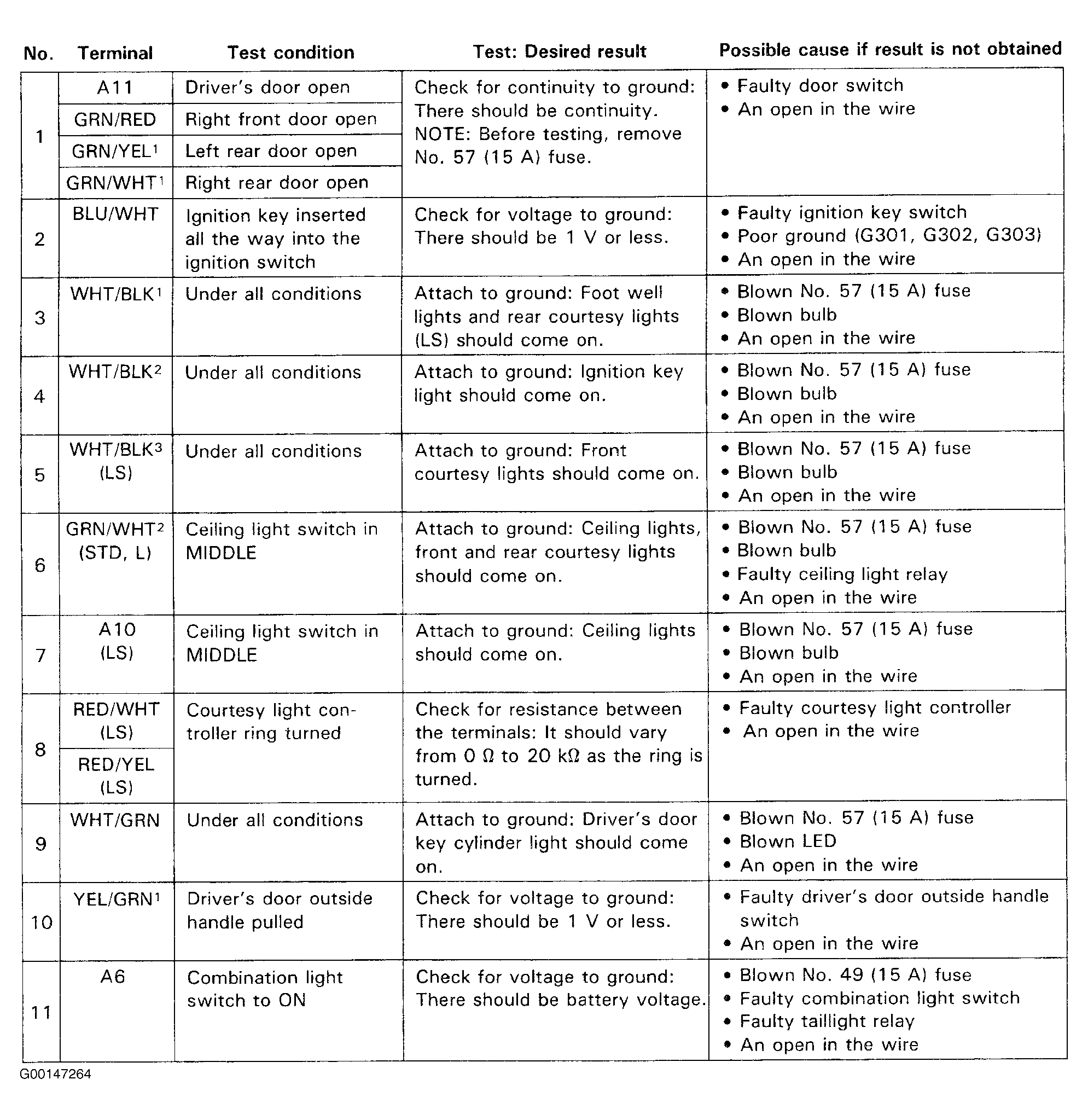

Fig 2: Entry Light Control System Input Test (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
