Key-In Reminder System

NOTE: See Figure or Figure for connector terminal identification.

For testing procedures, see Fig 1 .

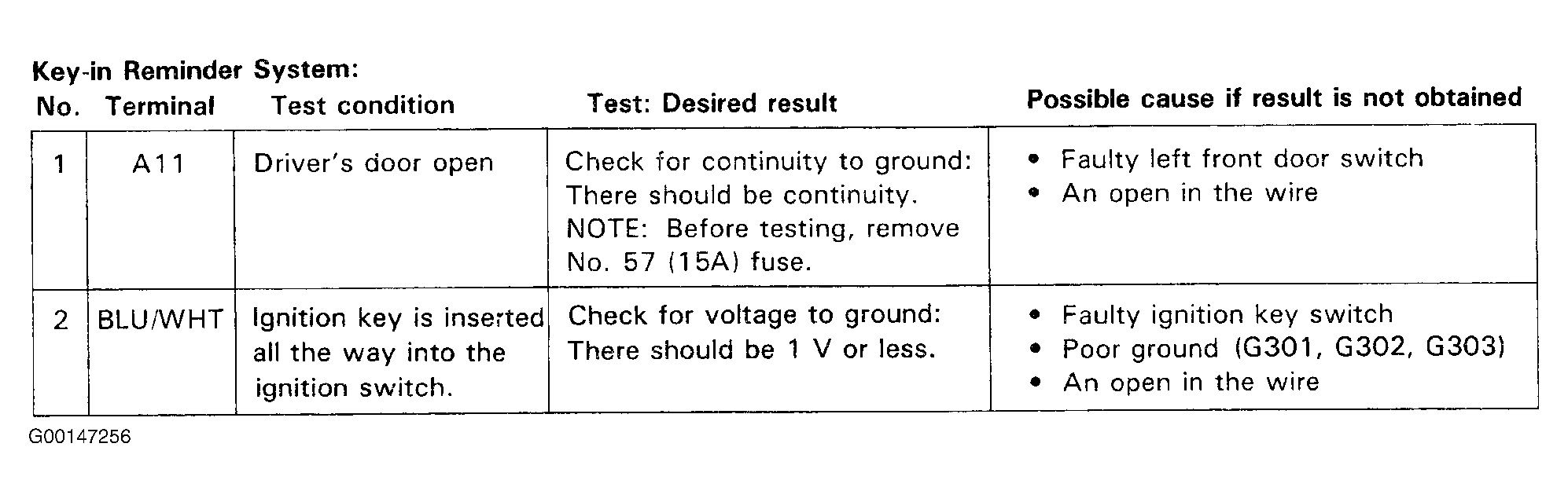

Fig 1: Key-In Reminder System Input Test
G00147256Courtesy of AMERICAN HONDA MOTOR CO., INC.
