Overhaul

Overhaul

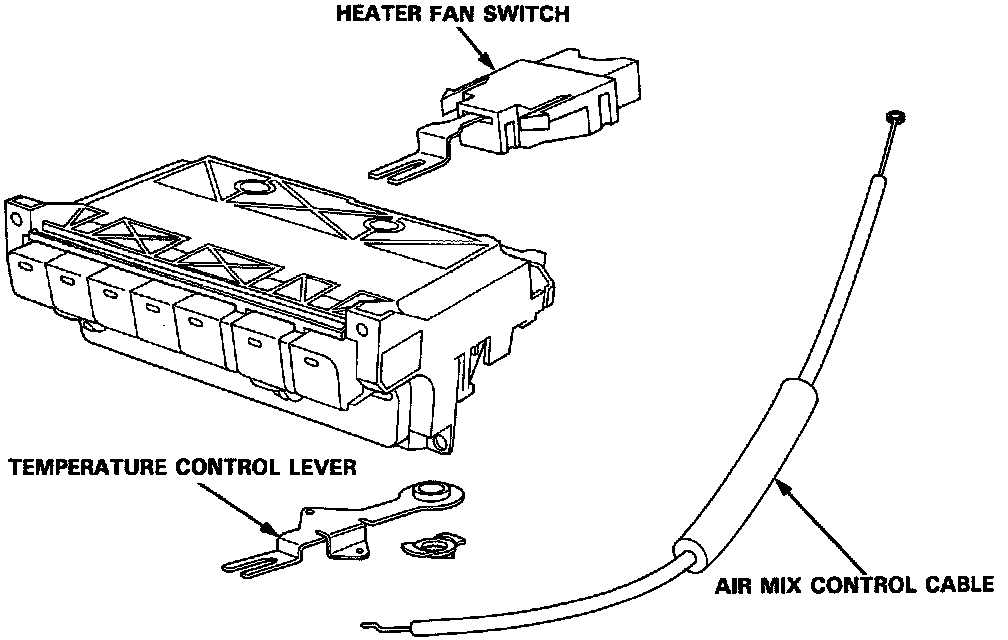

Air Mix Control Cable Replacement




1. Remove the air mix control cable.

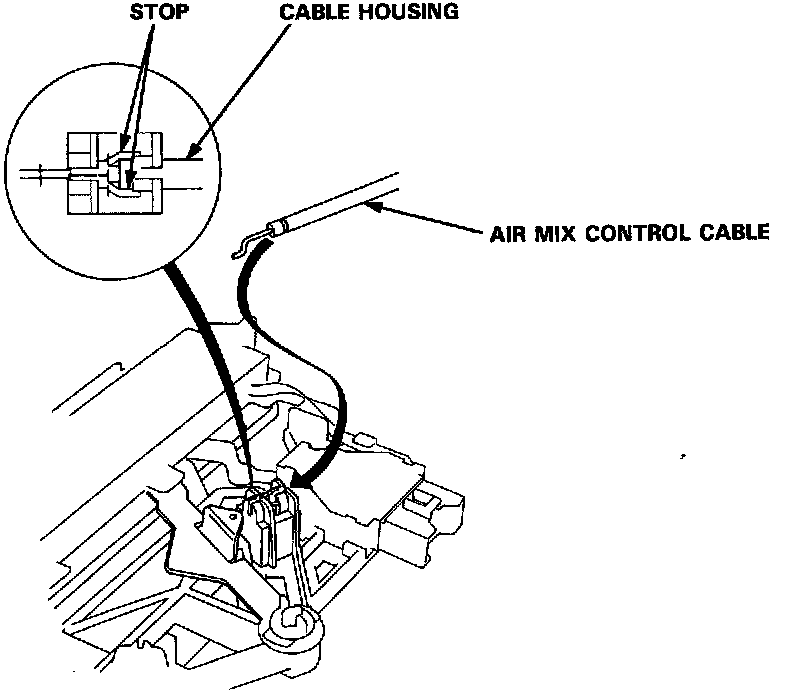

2. Hook the tip of the new air mix control cable to the temperature control lever, and push the cable housing unt is locked.

NOTE: After assembly, check that the temperature control lever slides smoothly through the full stroke from right to left.
