Converter View

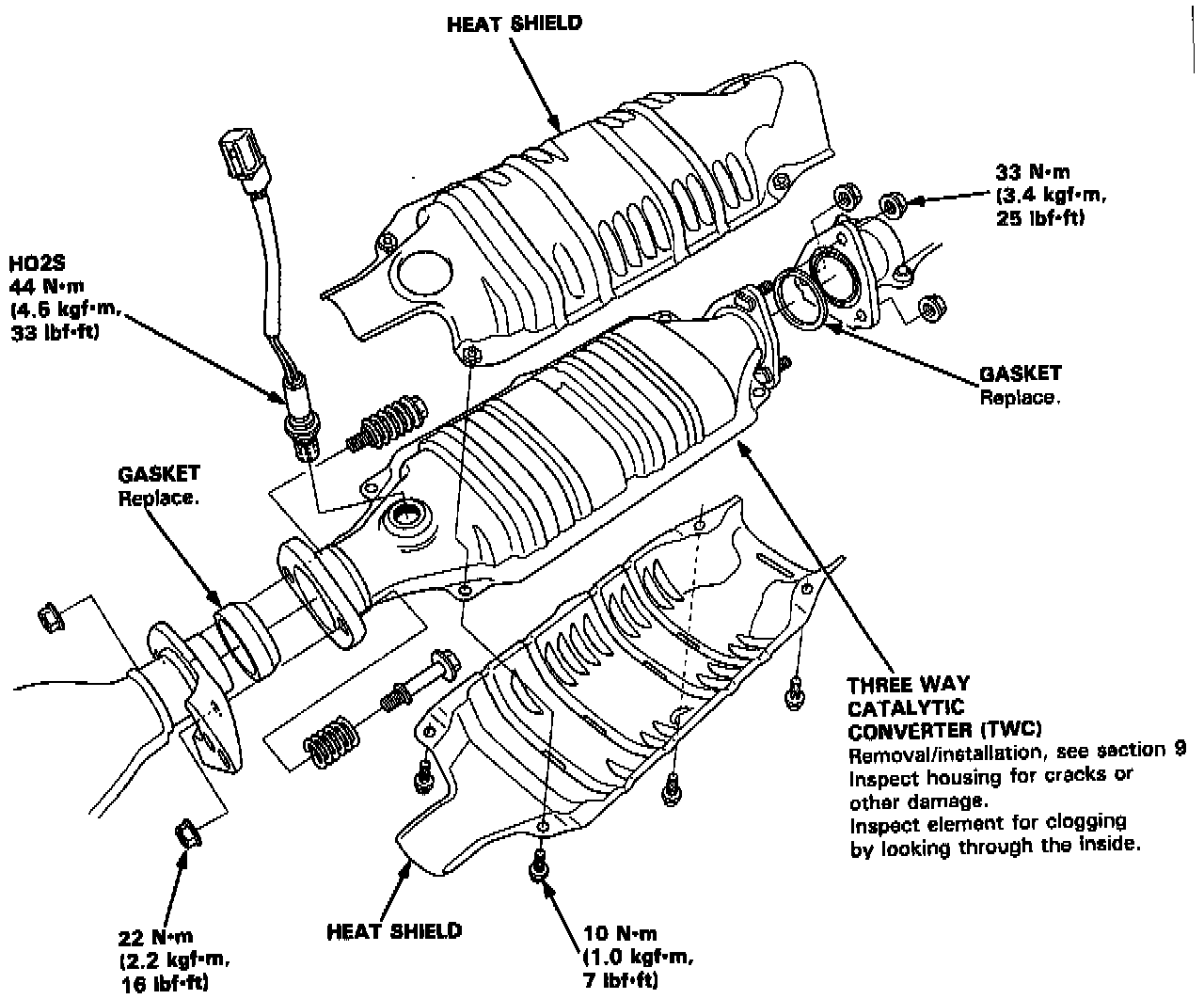

Heated Oxygen Sensor And Three Way Catalytic Converter:






The Heated Oxygen Sensor is located at the front of the Three Way Catalytic Converter.
