Engine Compartment View

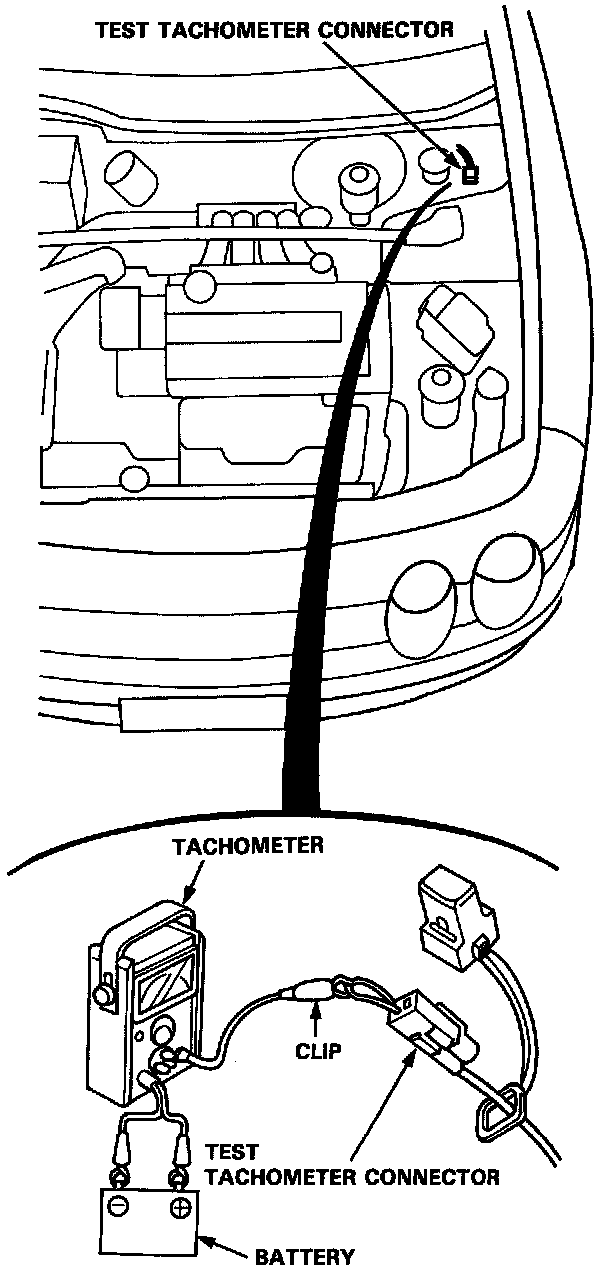

Tachometer Connector Location:






The Tachometer connector is located in the engine compartment, near the brake booster.
