A/T Torque Data

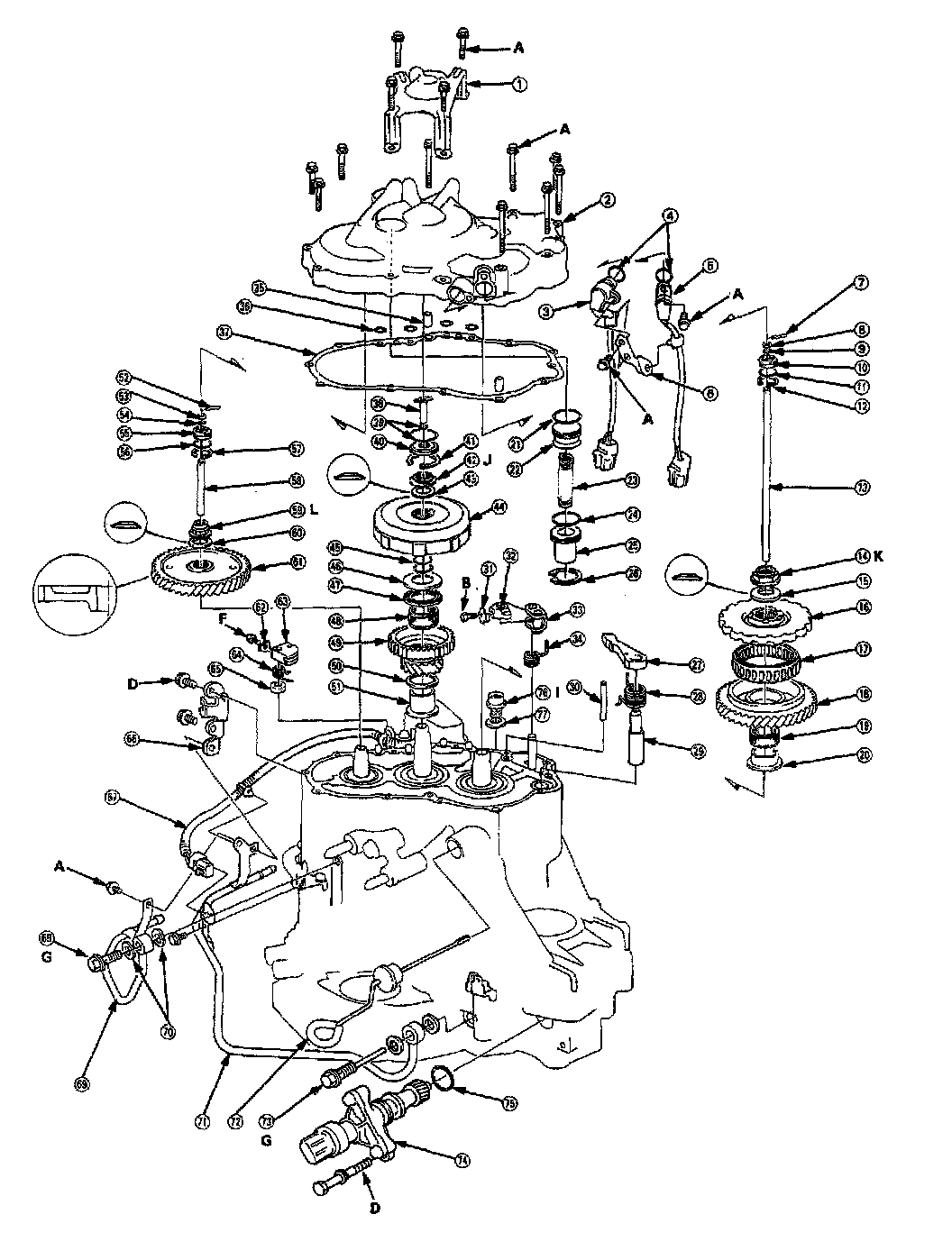

MP7A 4-spd A/T, R. Side Cover Assembly (1 Of 6):

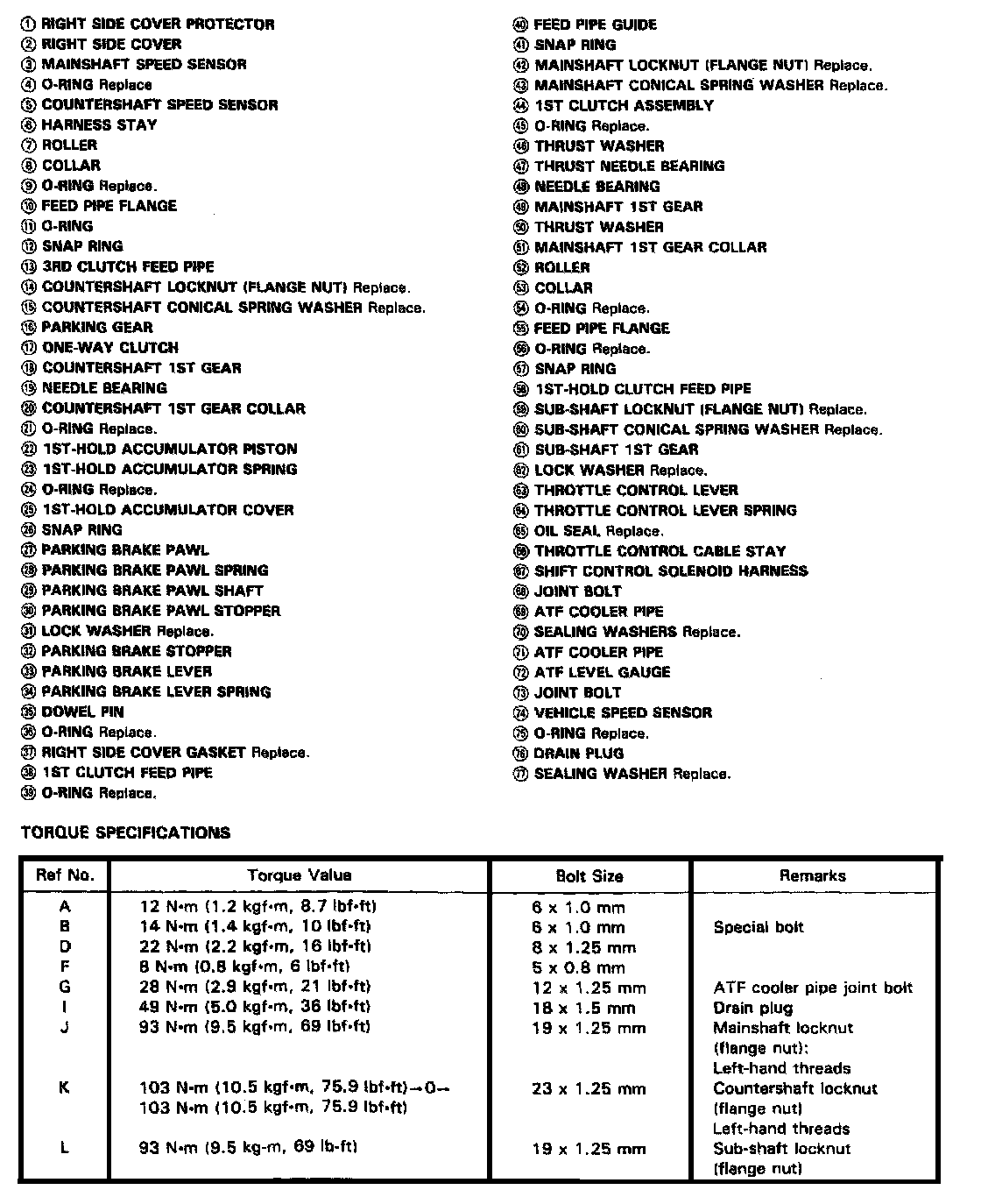

MP7A 4-spd A/T, R. Side Cover Assembly Legend (2 Of 6):

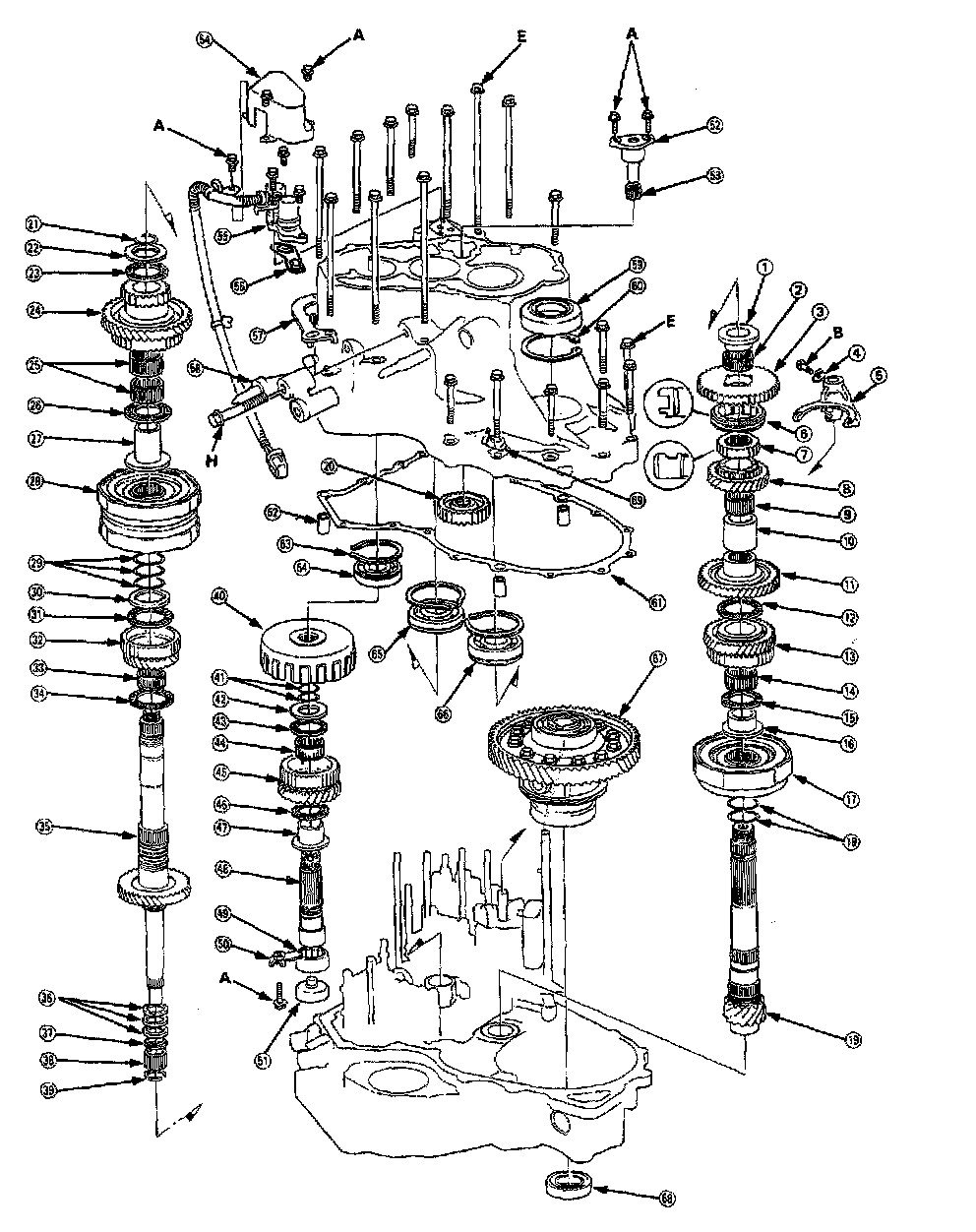

MP7A 4-spd A/T, Transmission Housing Assembly (3 Of 6):

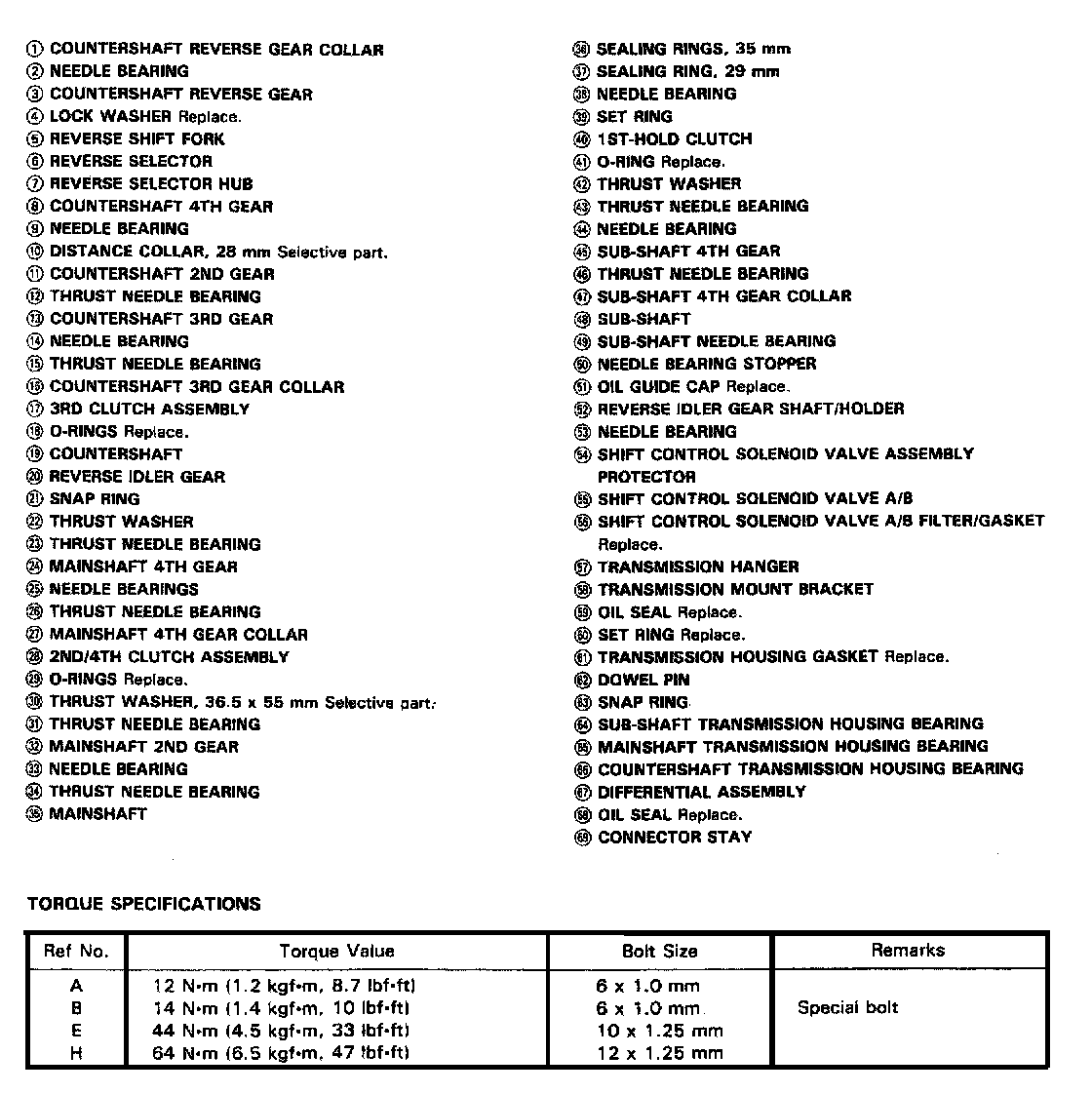

MP7A 4-spd A/T, Transmission Housing Legend (4 Of 6):

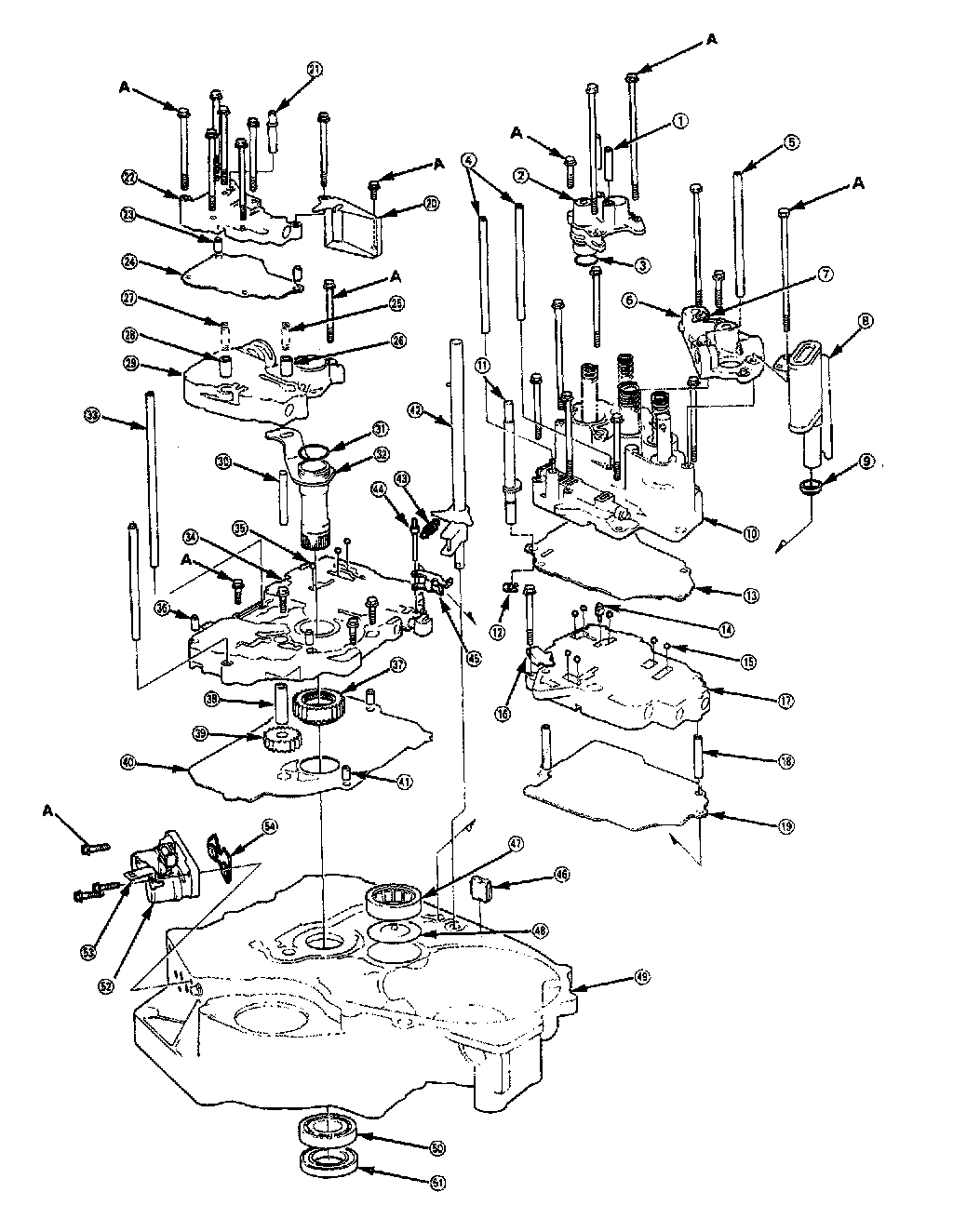

MP7A 4-spd A/T, Torque Converter Housing/Valve Body (5 Of 6):

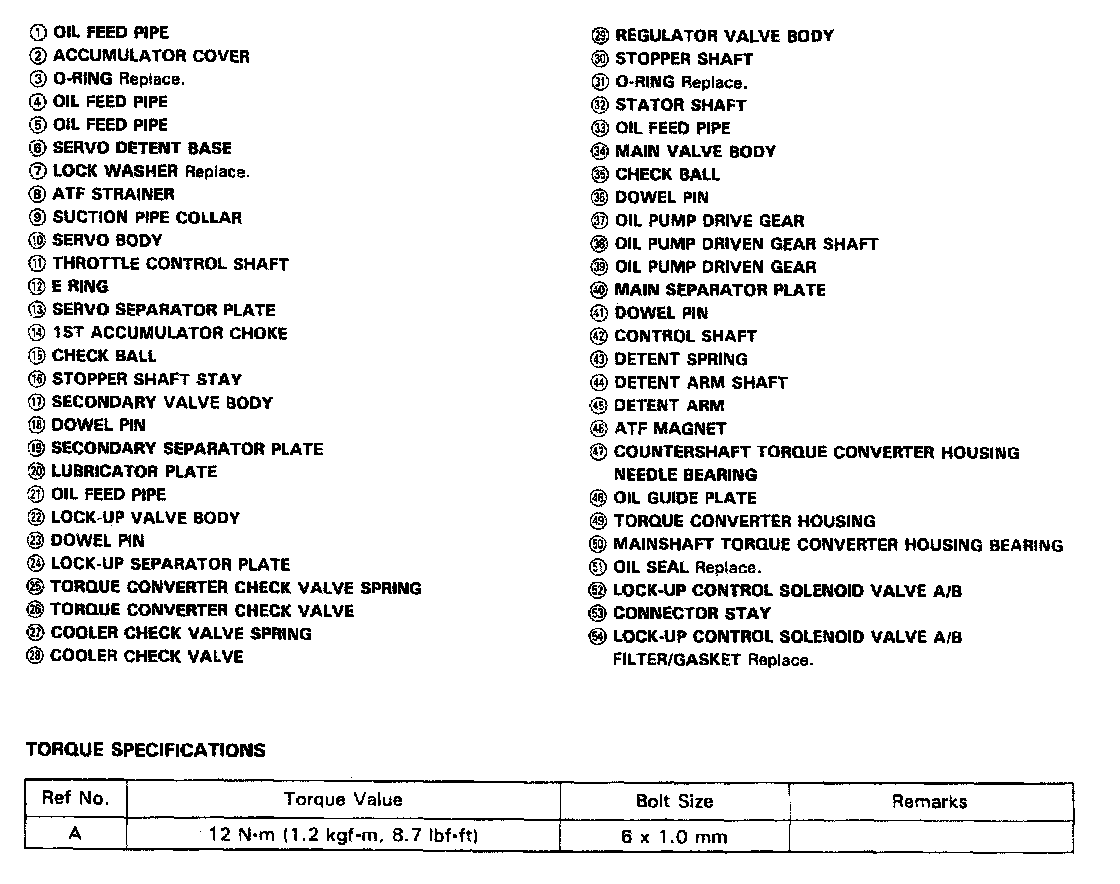

MP7A 4-spd A/T, Torque Converter / Valve Body Legend (6 Of 6):

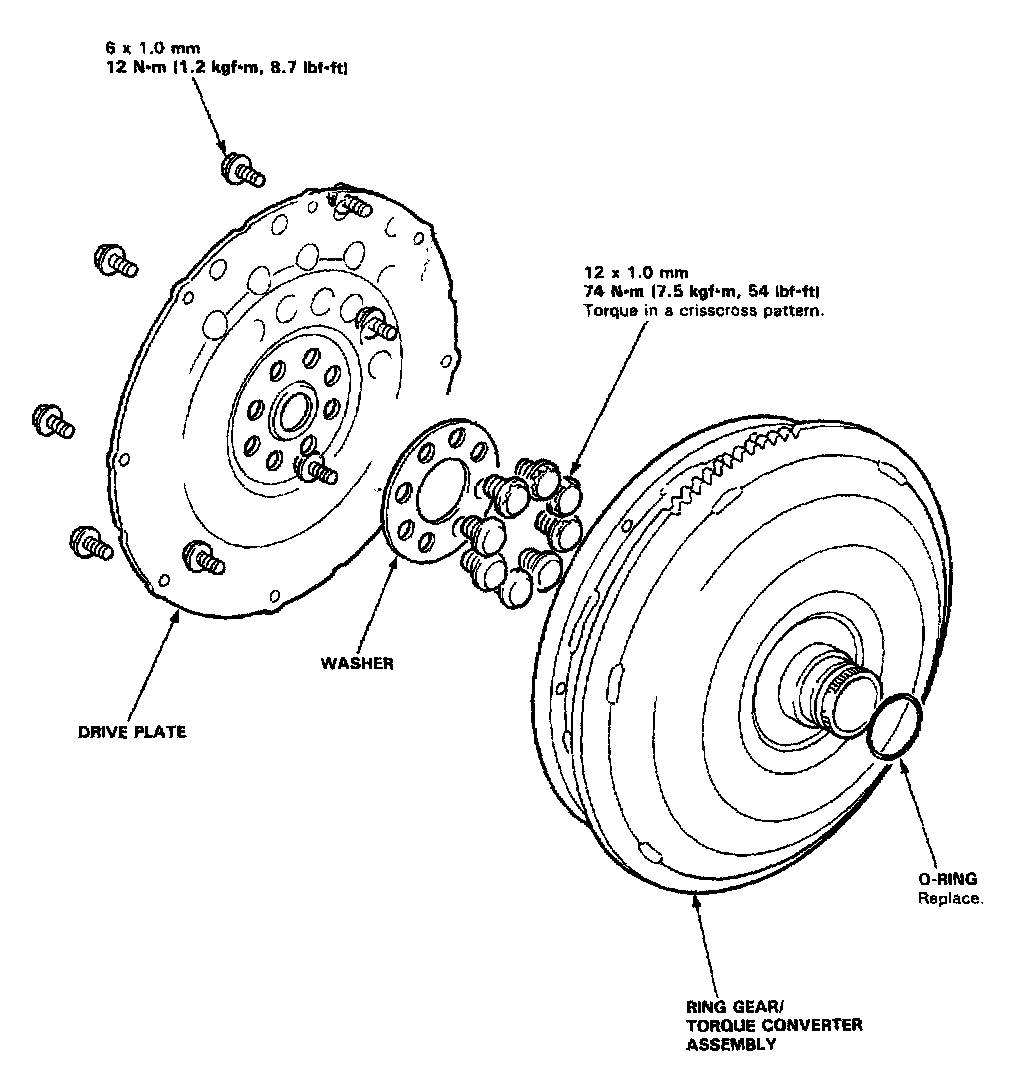

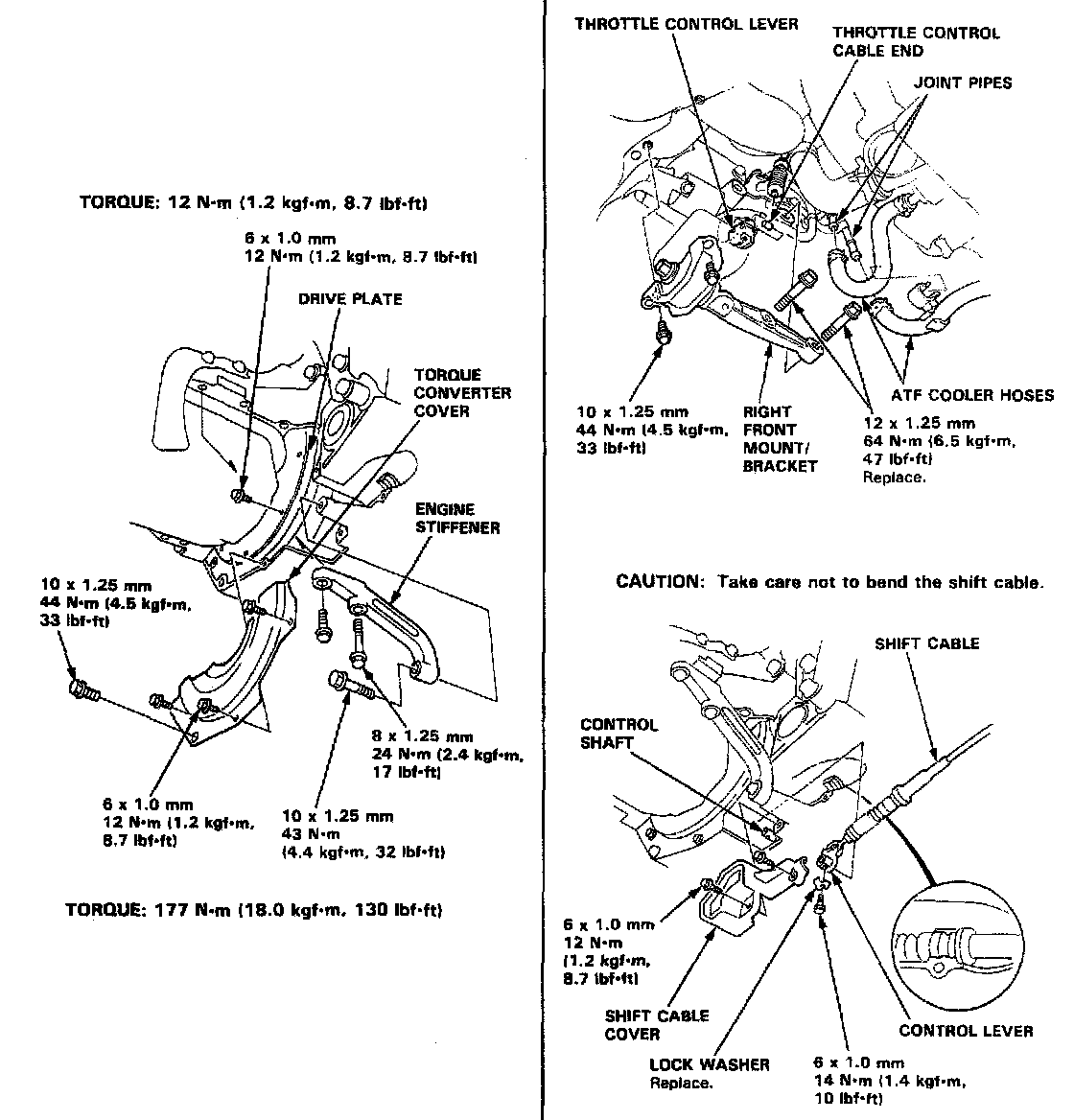

MP7A 4-spd A/T, Torque Converter/Drive Plate:

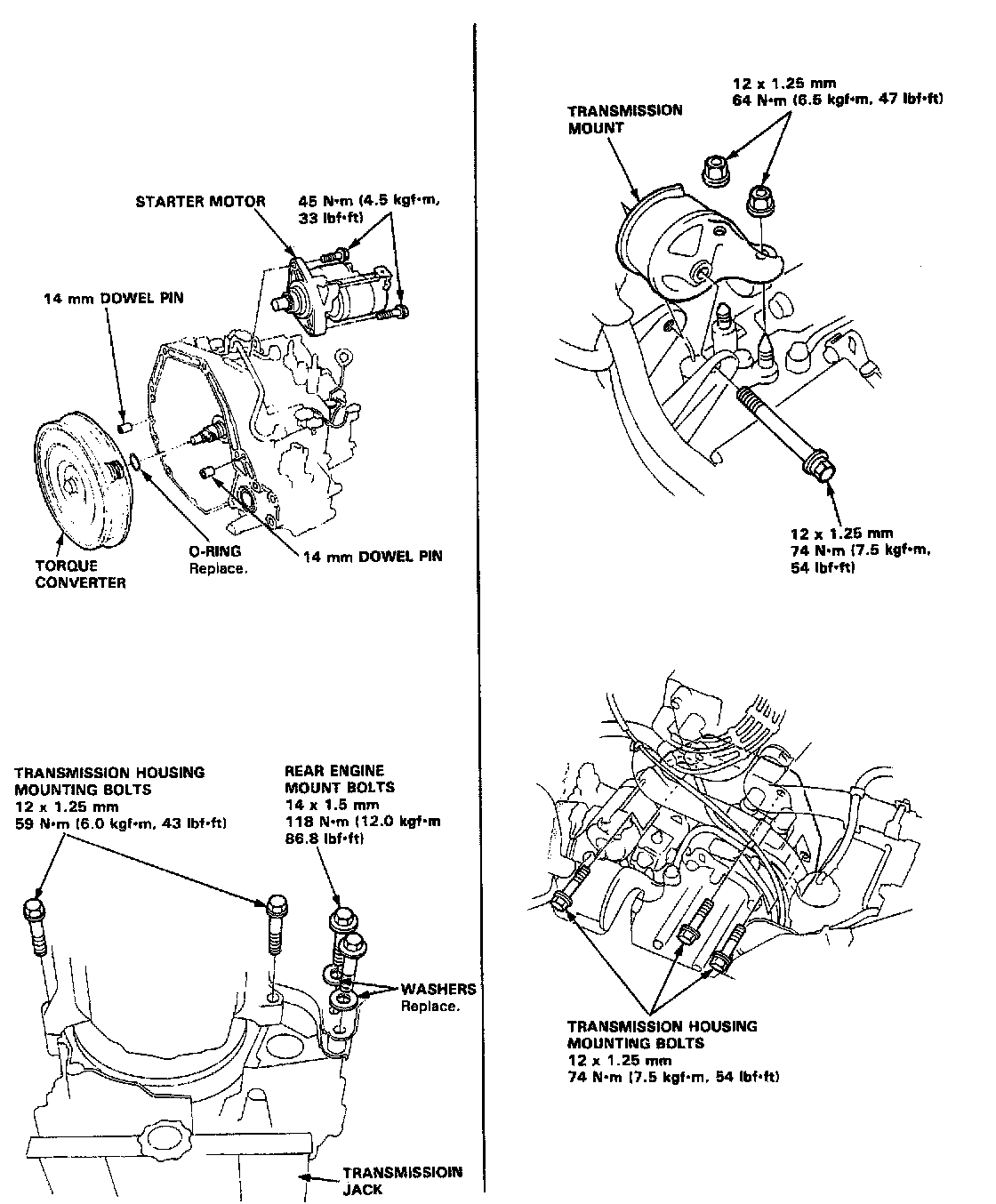

MP7A 4-spd A/T, Transmission Housing Mounting:



MP7A 4-spd A/T, Torque Converter Cover / Shift Cable:
