M/T Technical Data

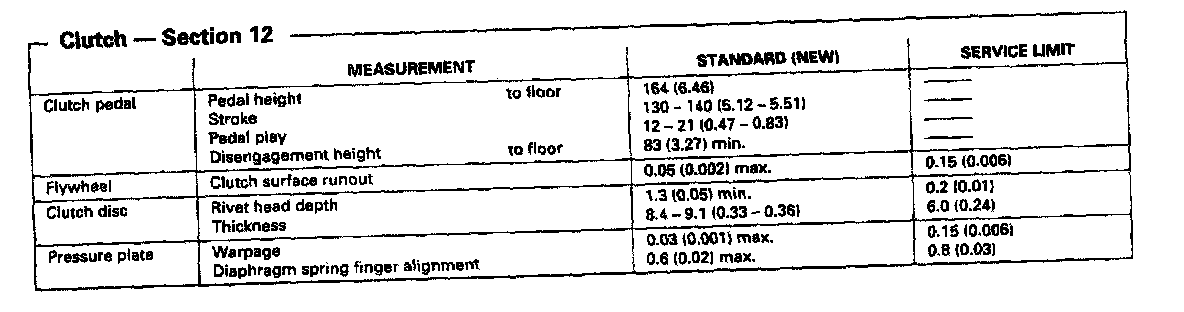

Y80 5-spd M/T, Clutch Measurements:

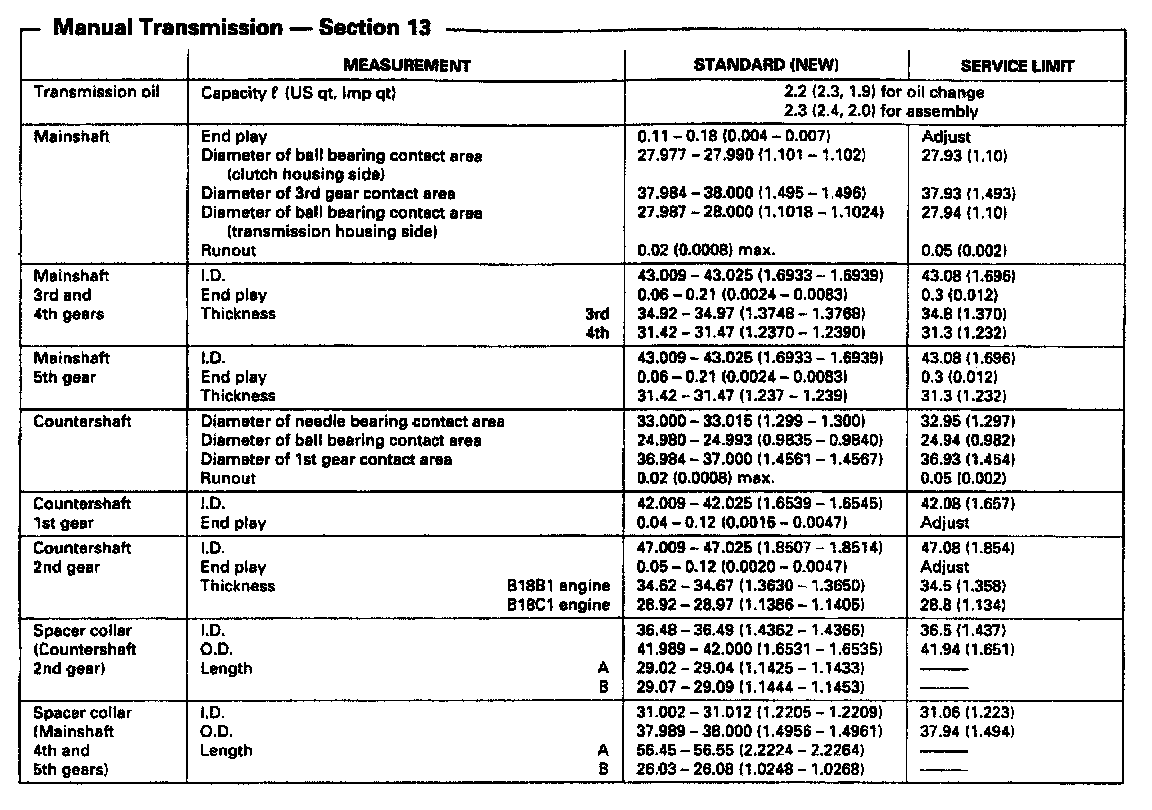

Y80 5-spd M/T, Mainshaft/Countershaft Measurements:

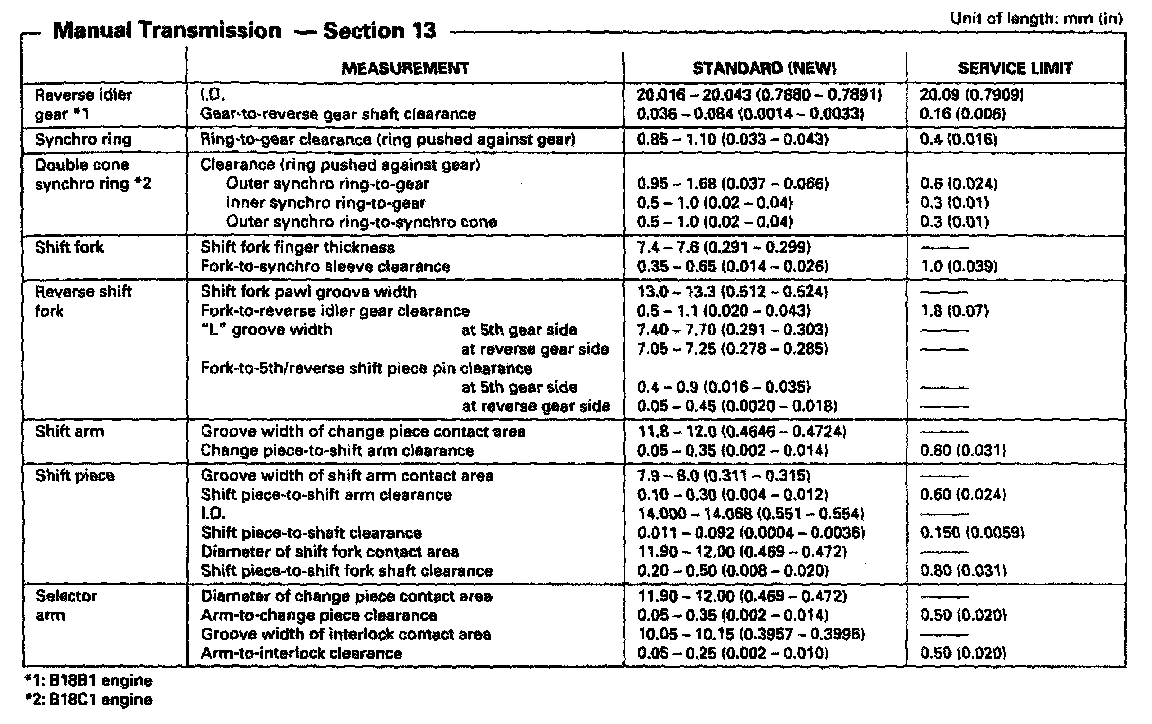

Y80 5-spd M/T, Synchro Rings, Shift Fork & Selector Arm:

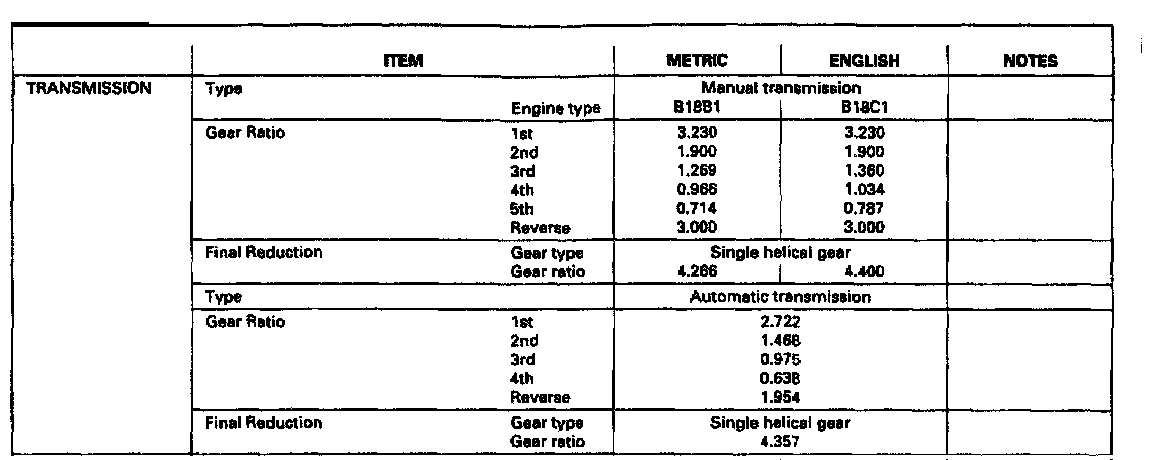

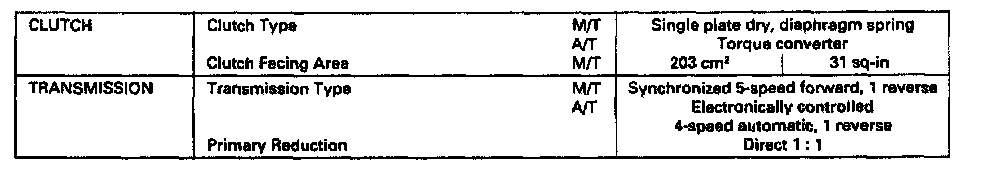

Manual/Automatic Transmission Gear Ratios:
Manual/Automatic Transmission Gear Ratios:
