Exploded Views

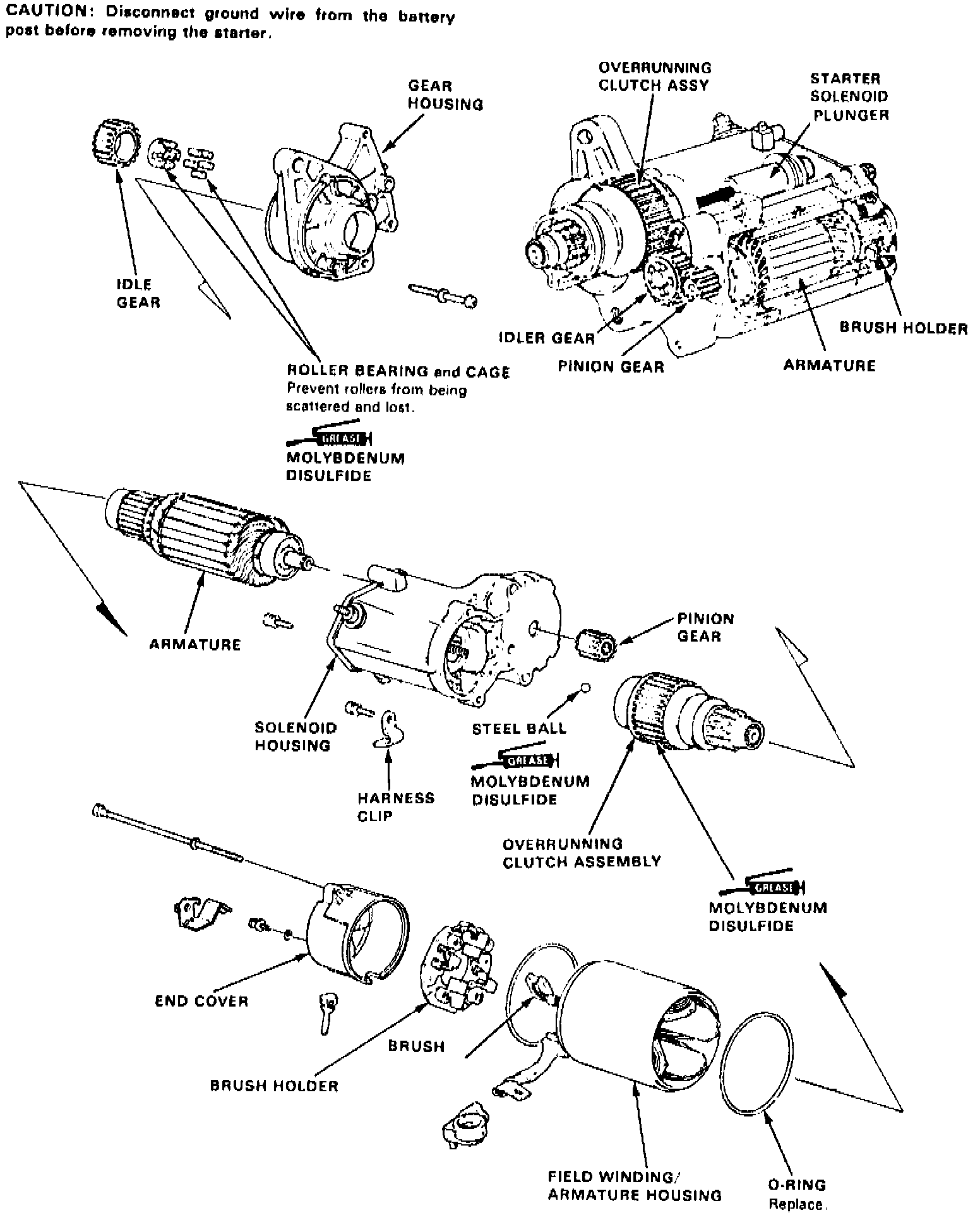

Fig. 1 Exploded View Of Starter Motor:





Refer to Fig. 1 for starter motor exploded view.
