Ignition Switch: Service and Repair

On models equipped with airbag system, refer to Technician Safety Information for system disarming and arming procedures.

1. On models equipped with radio coded theft protection system, refer to Vehicle Damage Warnings for system disarming and arming procedures.
2. Remove steering column lower panel and cover.
3. Disconnect electrical connector from switch.
4. Insert ignition key and move switch to O position.

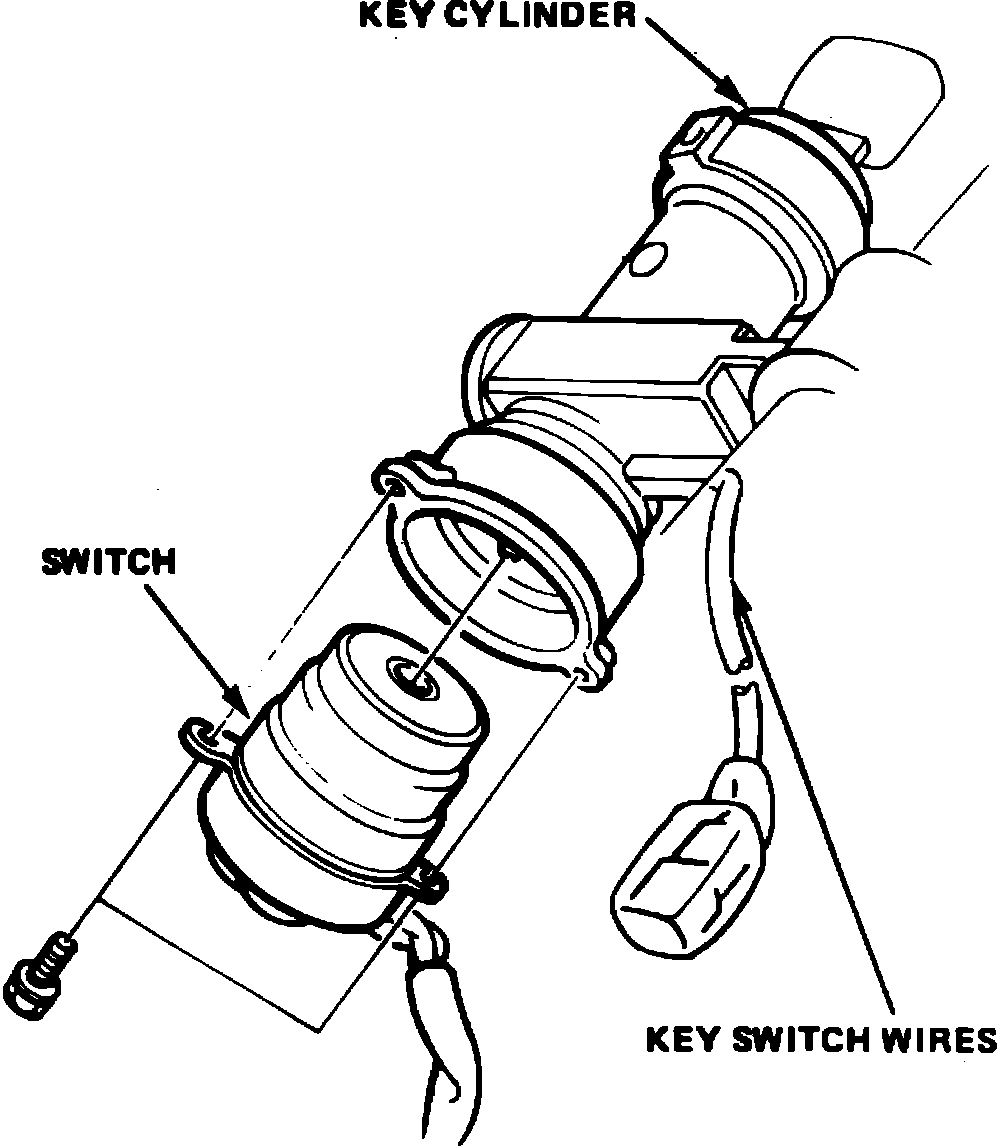

Fig. 13 Ignition switch replacement (Typical):

5. Unfasten switch wires, then remove switch attaching bolts and switch, Fig. 6.
6. Reverse procedure to install.
7. On models equipped with radio coded theft protection system, refer to Vehicle Damage Warnings for system disarming and arming procedures.
8. On models equipped with airbag system, refer to Technician Safety Information for system disarming and arming procedures.
