Wiper/Washer Switch Test

Remove horn pad and steering wheel. Remove upper and lower steering column covers. Unplug 6-pin and 8-pin connectors from wiper/washer switch. Check for continuity between specified terminals in each switch position. See Fig 1 . If wiper/washer switch does not operate as specified, replace switch.

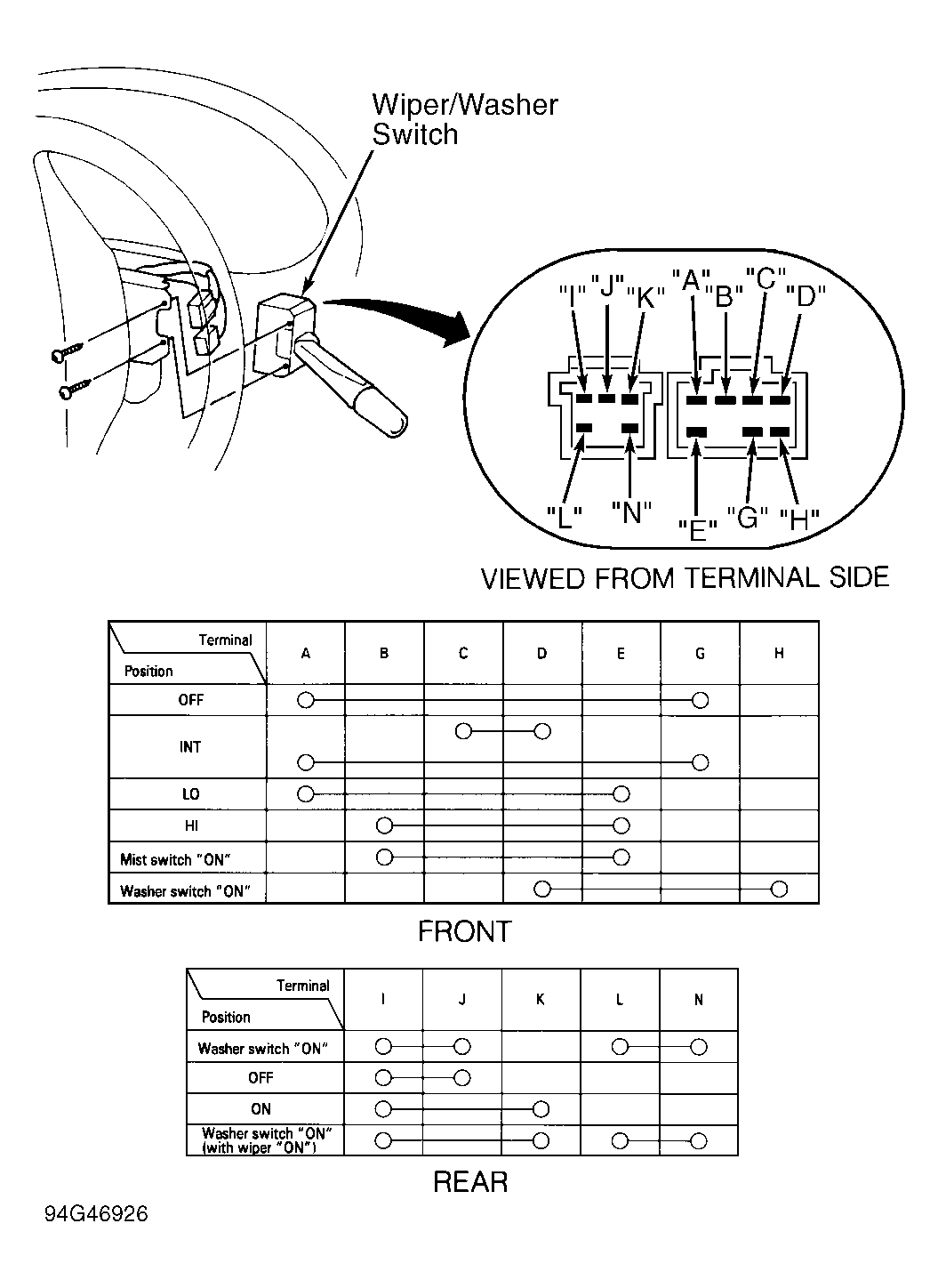

Fig 1: Testing Windshield Wiper/Washer Switch
G94G46926Courtesy of AMERICAN HONDA MOTOR CO., INC.
