Switch Test

  1. Remove the power door mirror switch from the armrest.
  2. Check for continuity between the terminal in each switch position. See Fig 1 .

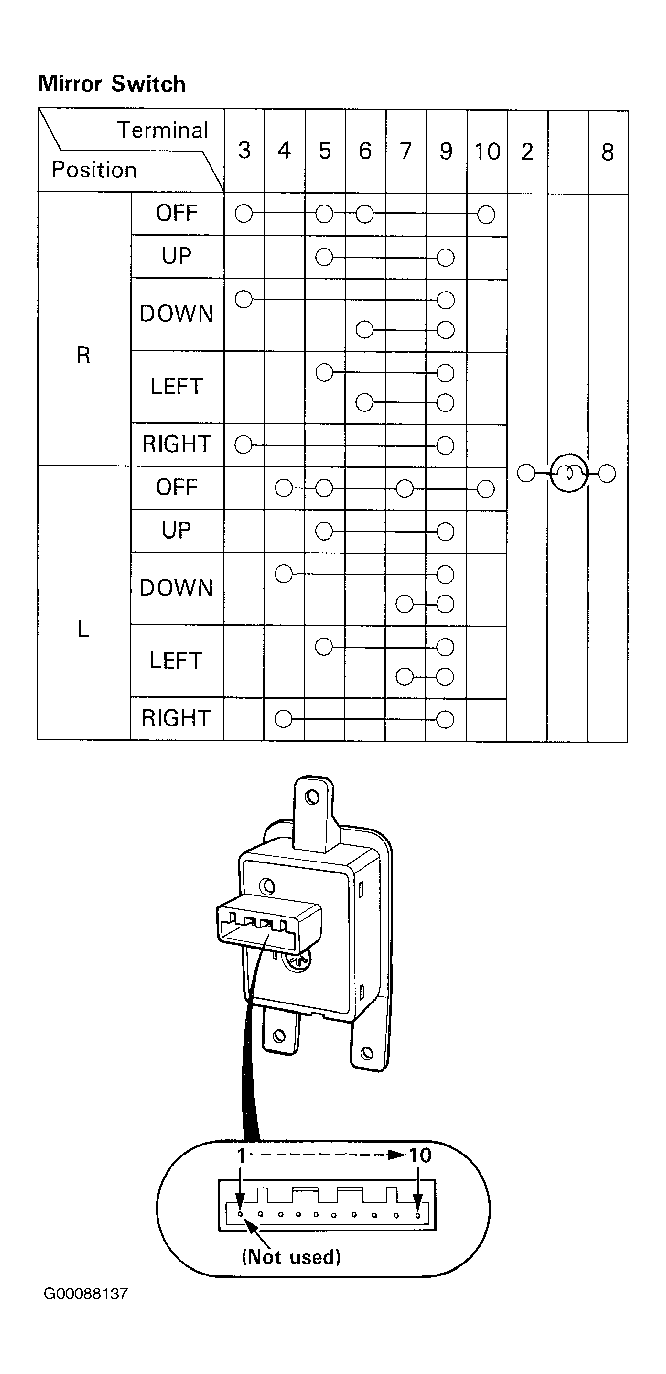

Fig 1: Testing Mirror Switch
G00088137Courtesy of AMERICAN HONDA MOTOR CO., INC.
