Generators & Regulators: Overhaul: Alternator
NOTE:
It is only necessary to separate pulley, drive end housing and rotor when front bearing needs replacement.

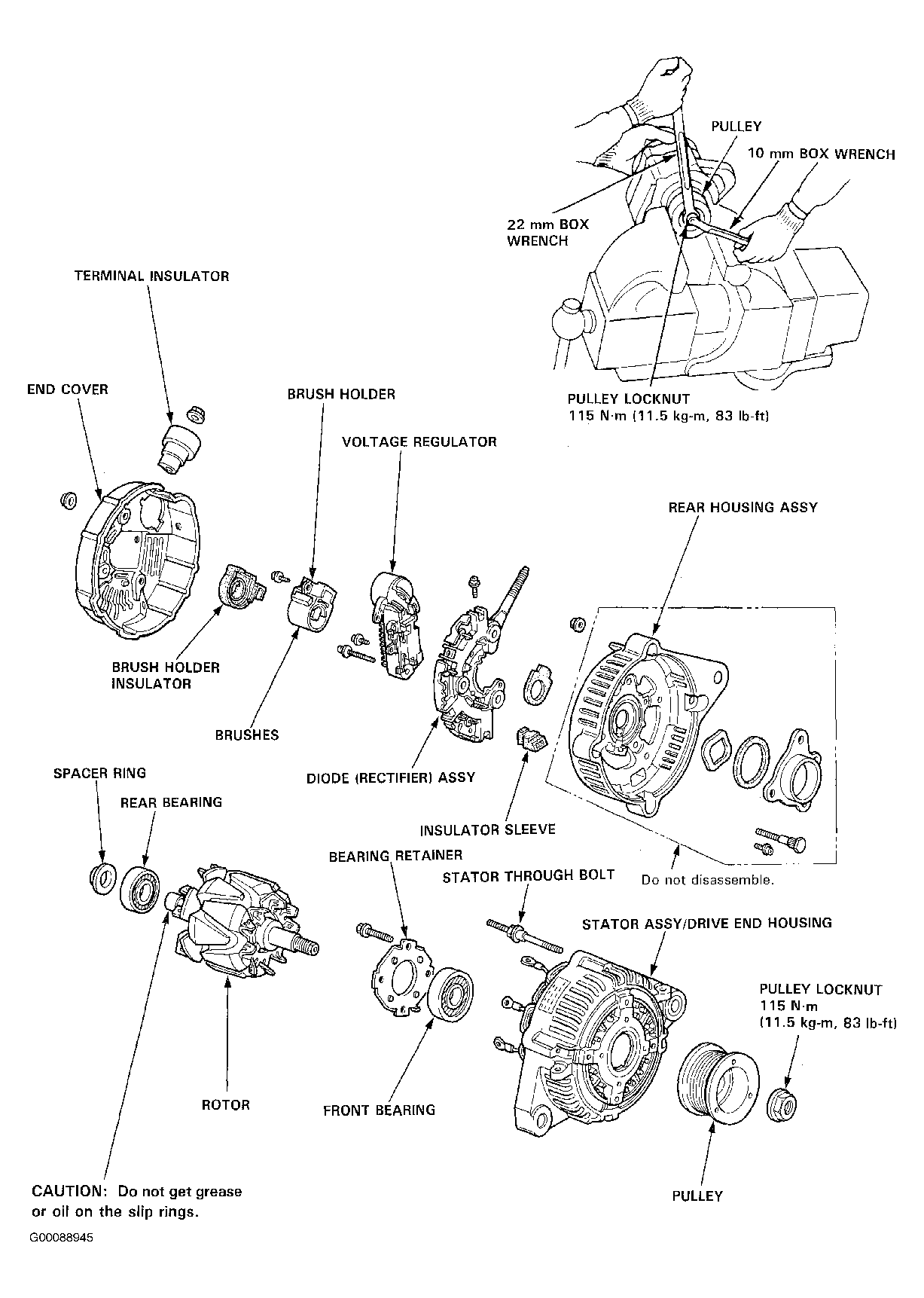

To remove pulley and rotor, use 10 mm and 22 mm box wrenches to loosen pulley locknut. Use an impact wrench to remove nut if necessary.
