Entry Light Timer System

See Figure for connector identification.

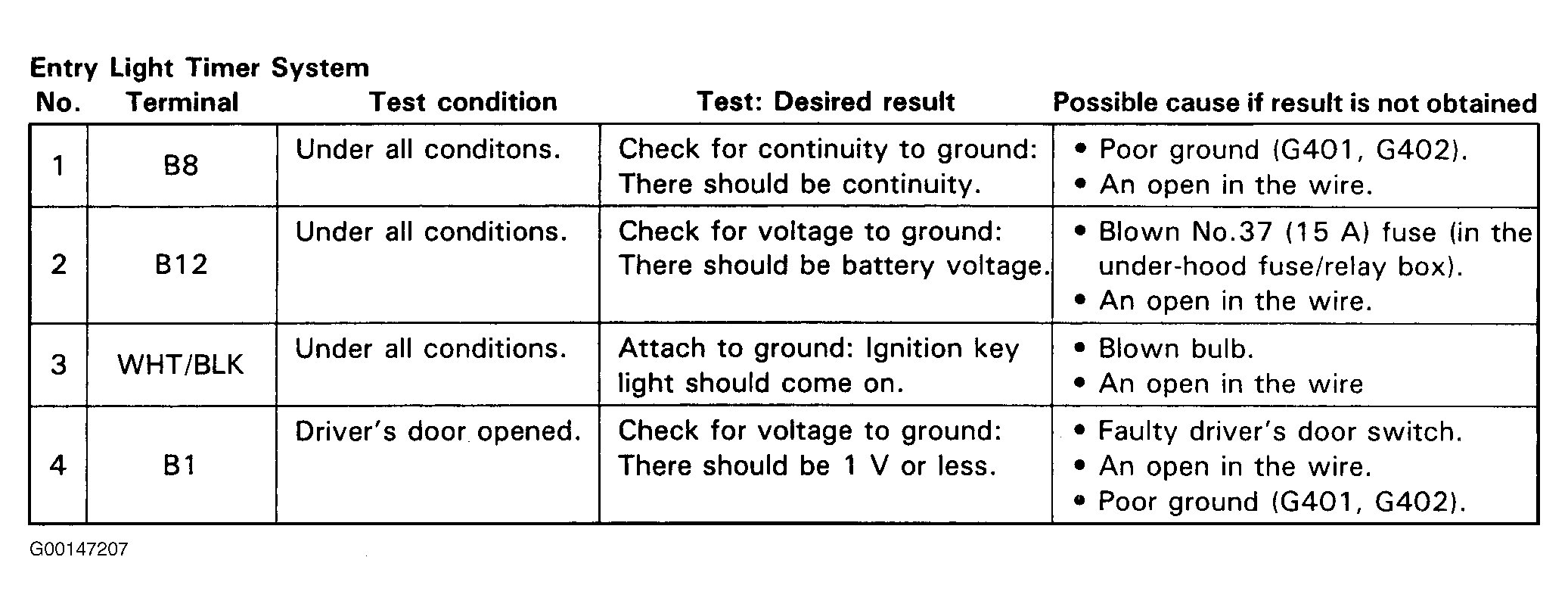

Fig 1: Entry Light Timer System Input Test
G00147207Courtesy of AMERICAN HONDA MOTOR CO., INC.
