M/T Technical Data

S80 5-spd M/T, Clutch Measurements:

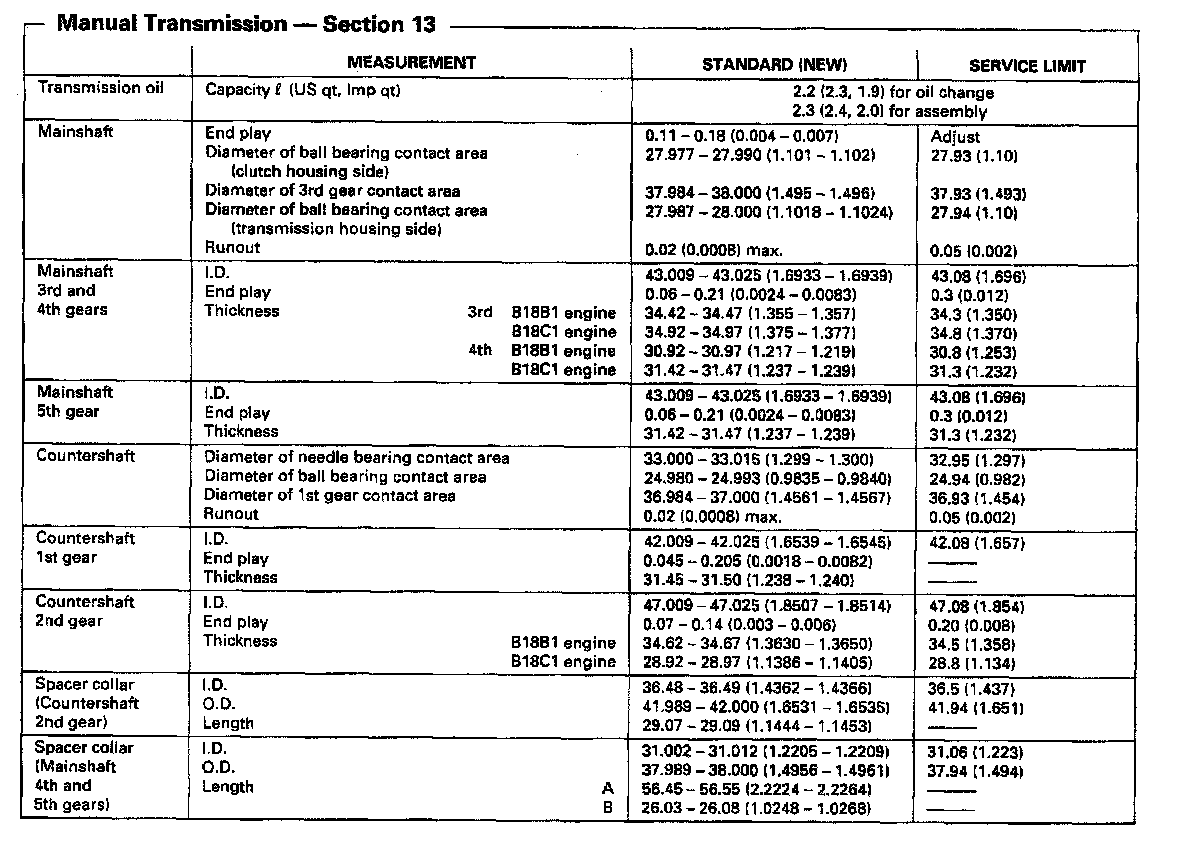

S80 5-spd M/T, Mainshaft/Countershaft Measurements:

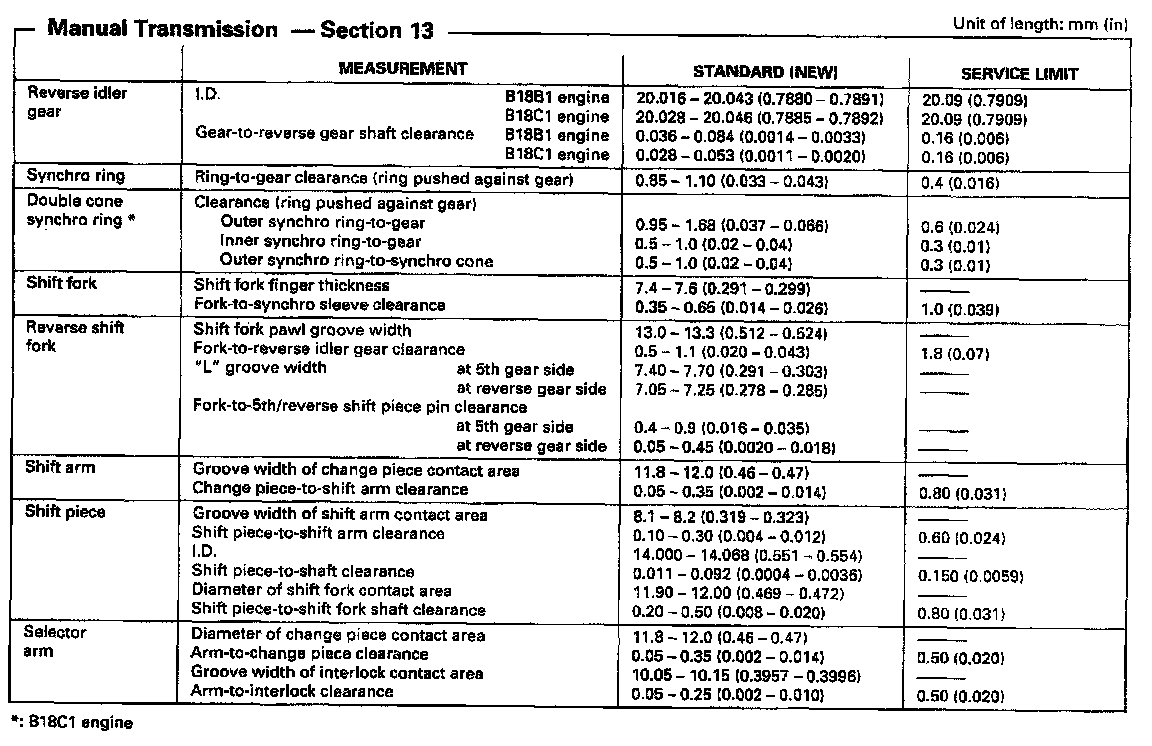

S80 5-spd M/T, Synchro Ring, Shift Piece & Selector Arm:

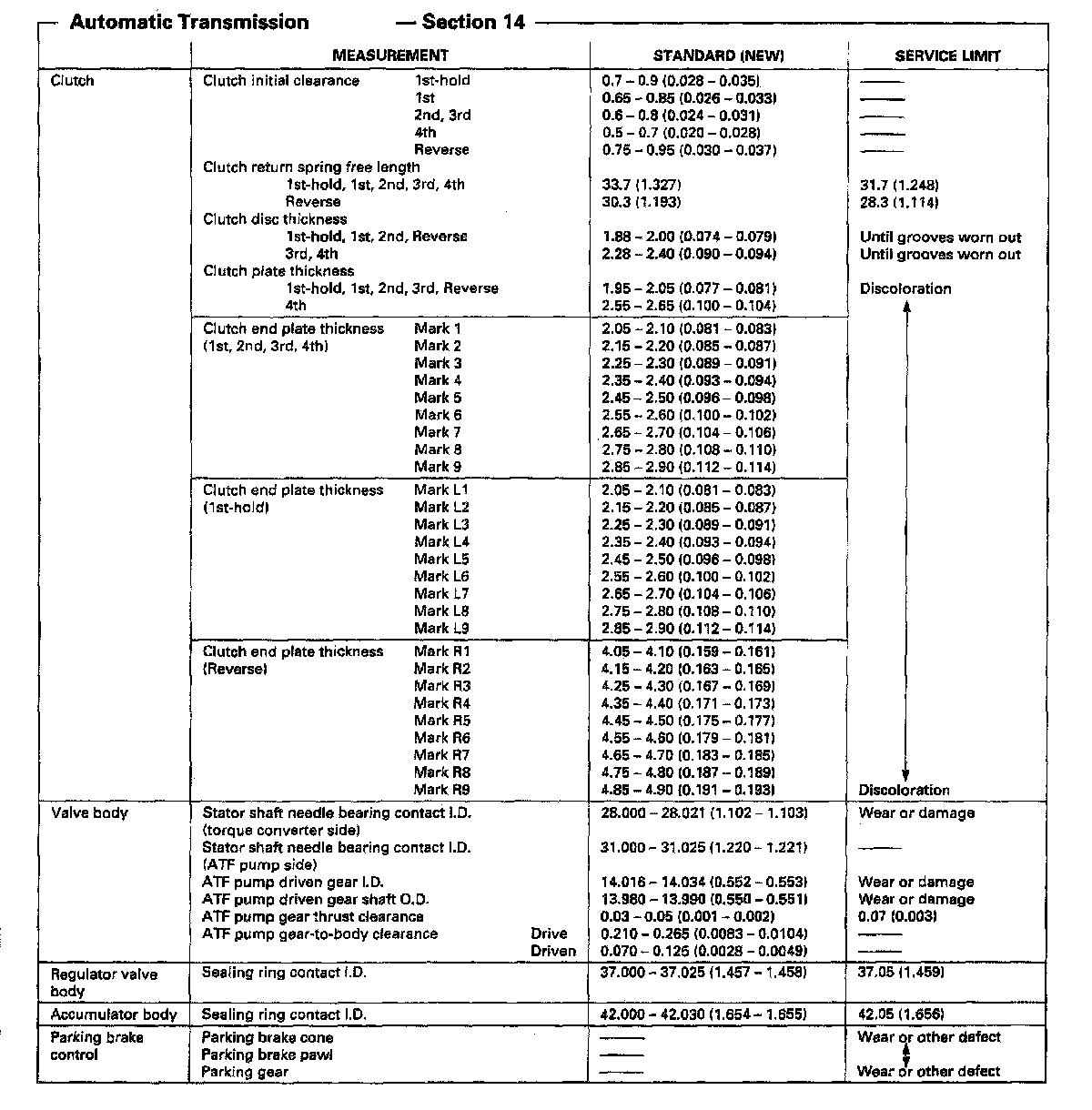

Manual/Automatic Transmission Clutch Ratio:




Manual/Automatic Transmission Gear Ratios:





Manual/Automatic Transmission Clutch Design:




Manual/Automatic Transmission Gear Ratios:
