Piston Pin Removal

  1. Install Piston Base Head (07HAF-PL20102) and Piston Pin Base Insert (07GAF-PH60300) into Base (07973-6570500). Turn handle on Piston Pin Driver Head (07973-PE00320) so piston driver length is 2.035" (51.69 mm). See Fig 1.
  2. Insert Piston Driver Shaft (07973-PE00310) into Pilot Collar (07LAF-PR30100). Place piston onto base. Press out piston pin using a hydraulic press. When removing or installing piston pin, set piston in press with embossed side facing up. Align lugs on base insert with recessed part of piston.

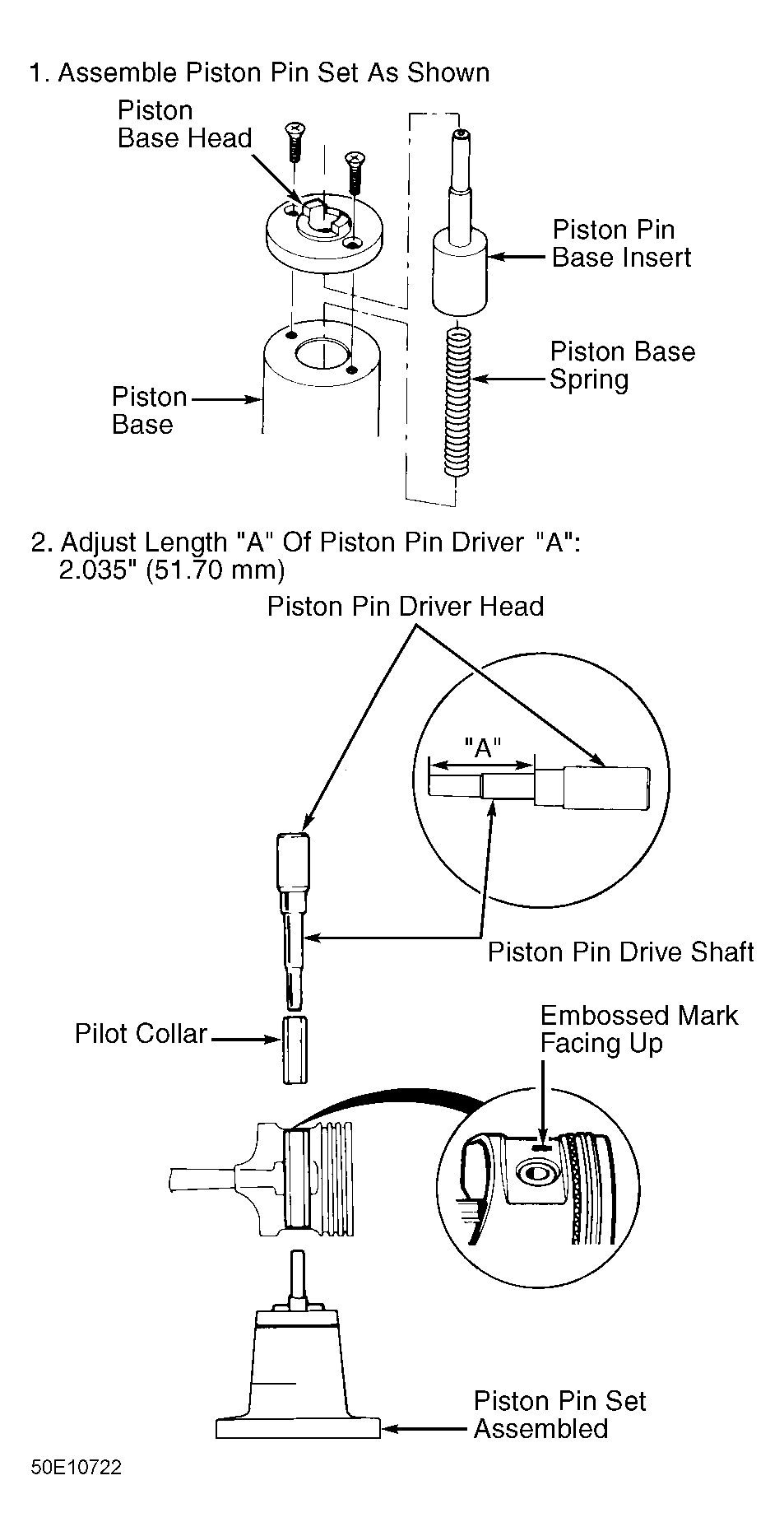

Fig 1: Removing Piston Pin
G50E10722Courtesy of AMERICAN HONDA MOTOR CO., INC.
