Manifold Absolute Pressure (MAP) Sensor

The Manifold Absolute Pressure (MAP) sensor converts manifold absolute pressure into electrical signals and inputs the ECM. See Fig 1 .

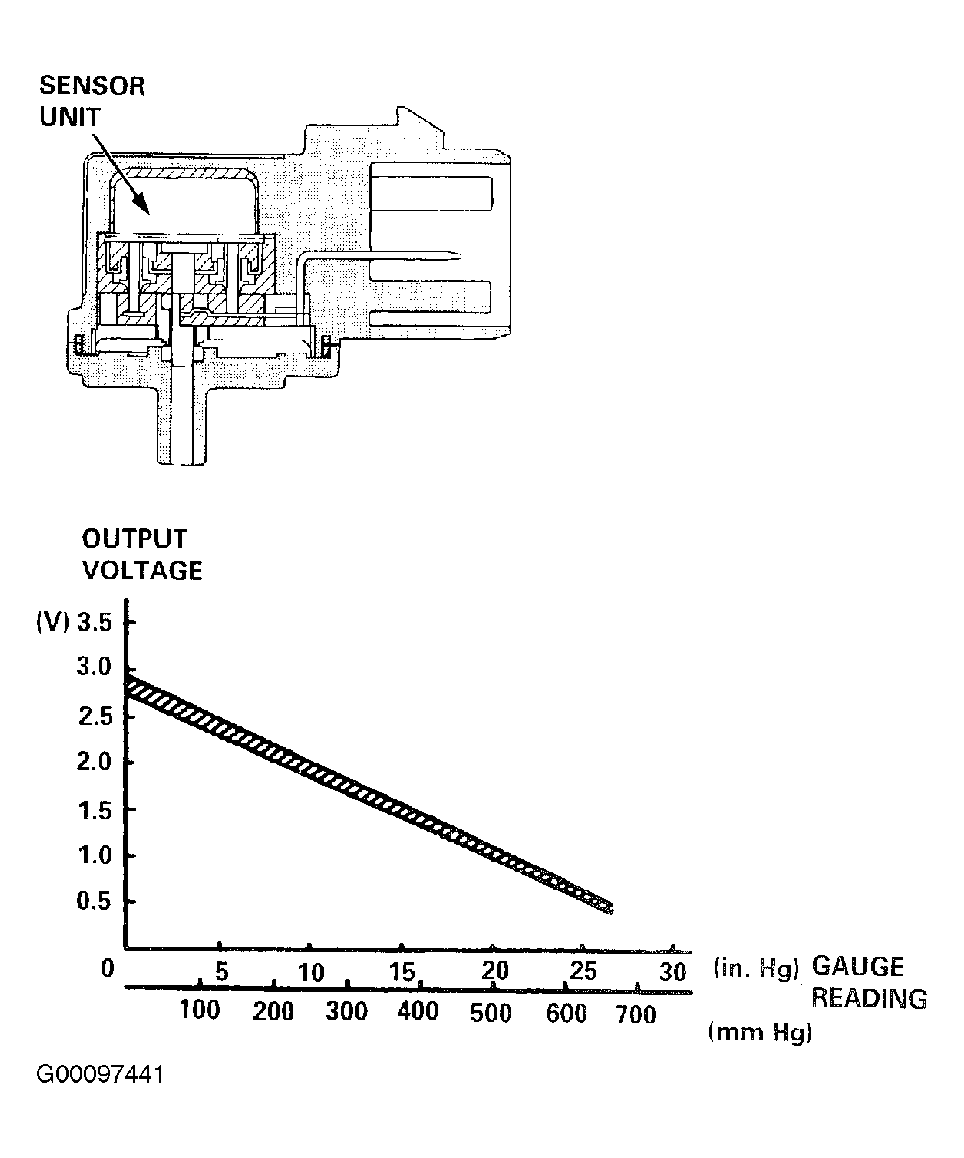

Fig 1: Identifying Manifold Absolute Pressure (MAP) Sensor & Voltage Output Specification Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
