Solenoid Plunger Inspection

Check contact points, and face of starter solenoid plunger for burning, pitting or any other defects. See Fig 1 . If surfaces are rough, recondition with a strip of #500 or #600 sandpaper.

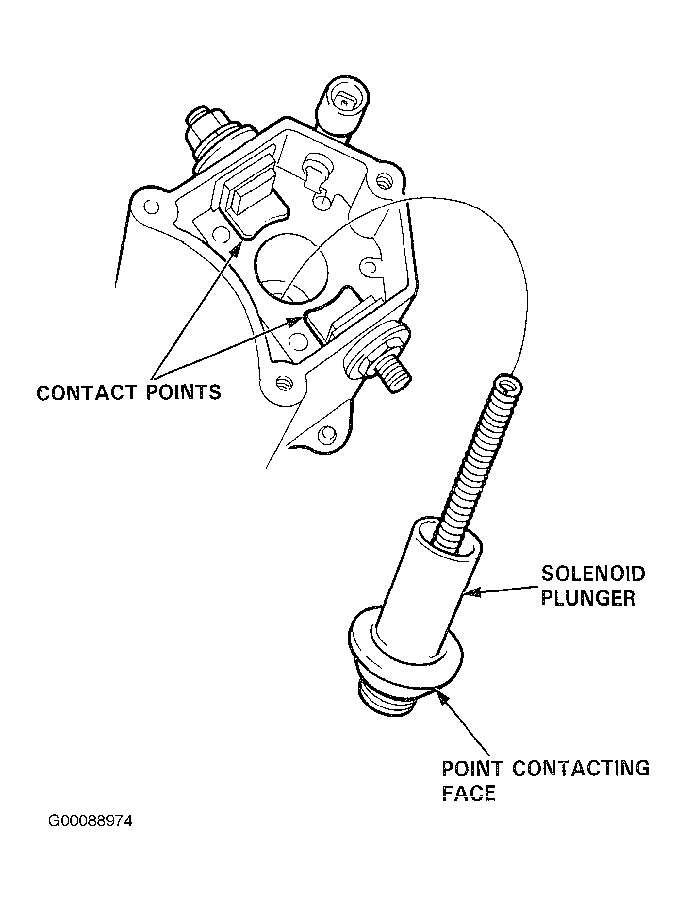

Fig 1: Inspecting Solenoid Plunger

Courtesy of AMERICAN HONDA MOTOR CO., INC.
