DTC 6-1: Transmission Control Module (TCM)

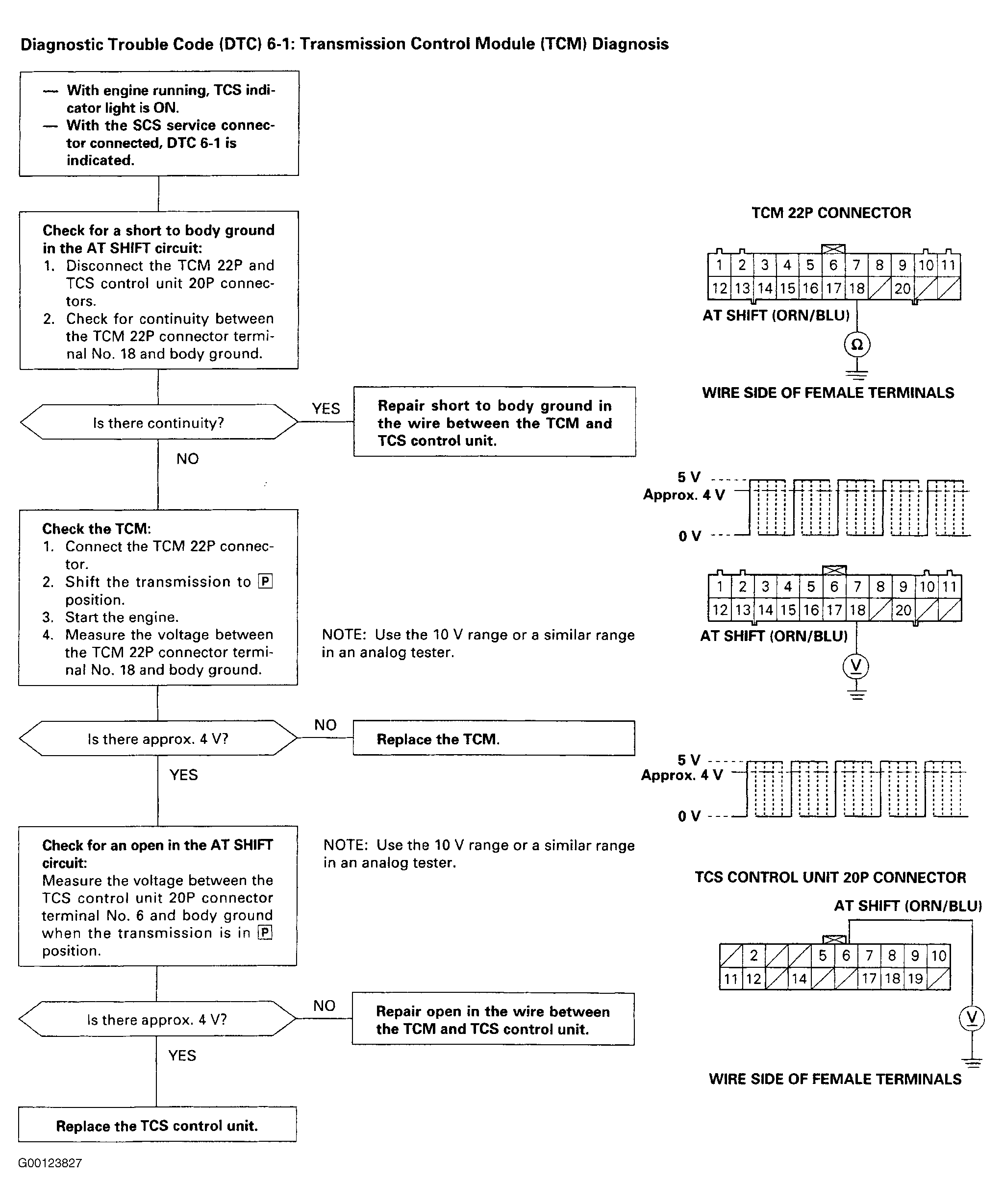

Fig 1: DTC 6-1: Transmission Control Module (TCM) Diagnosis
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
