PGM-FI Control System
The ECM is located behind the passenger seat under the bulkhead panels. For testing, see Fig 1
-Fig 4
.

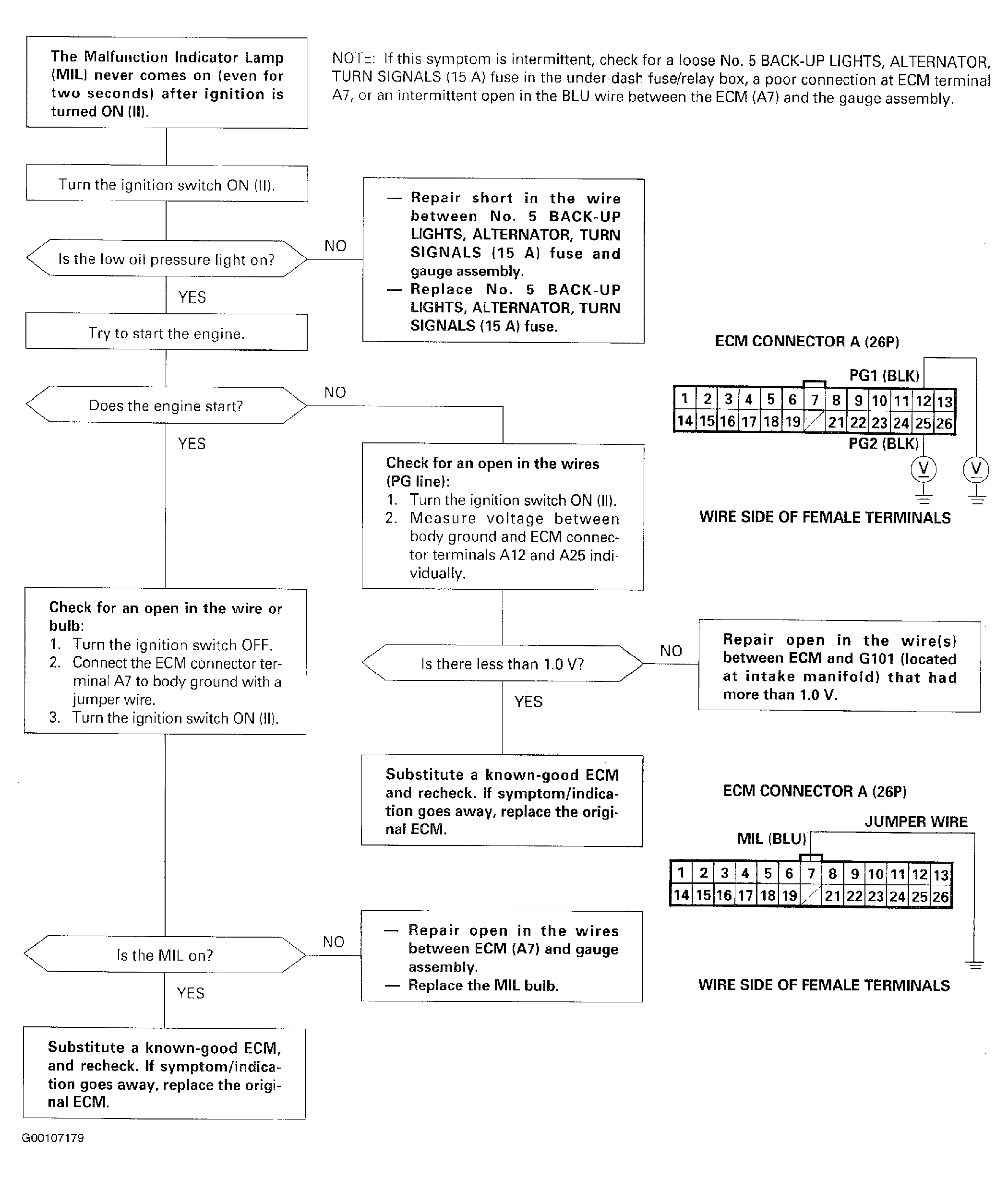

Fig 1: Engine Control Module (ECM) Diagnostic Flow Chart (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Engine Control Module (ECM) Diagnostic Flow Chart (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Engine Control Module (ECM) Diagnostic Flow Chart (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Engine Control Module (ECM) Diagnostic Flow Chart (4 Of 4)
