Power Window Key Off Timer System

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2005 Acura NSX, 2004 Acura NSX, 2003 Acura NSX-T, 2003 Acura NSX, and 2002 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

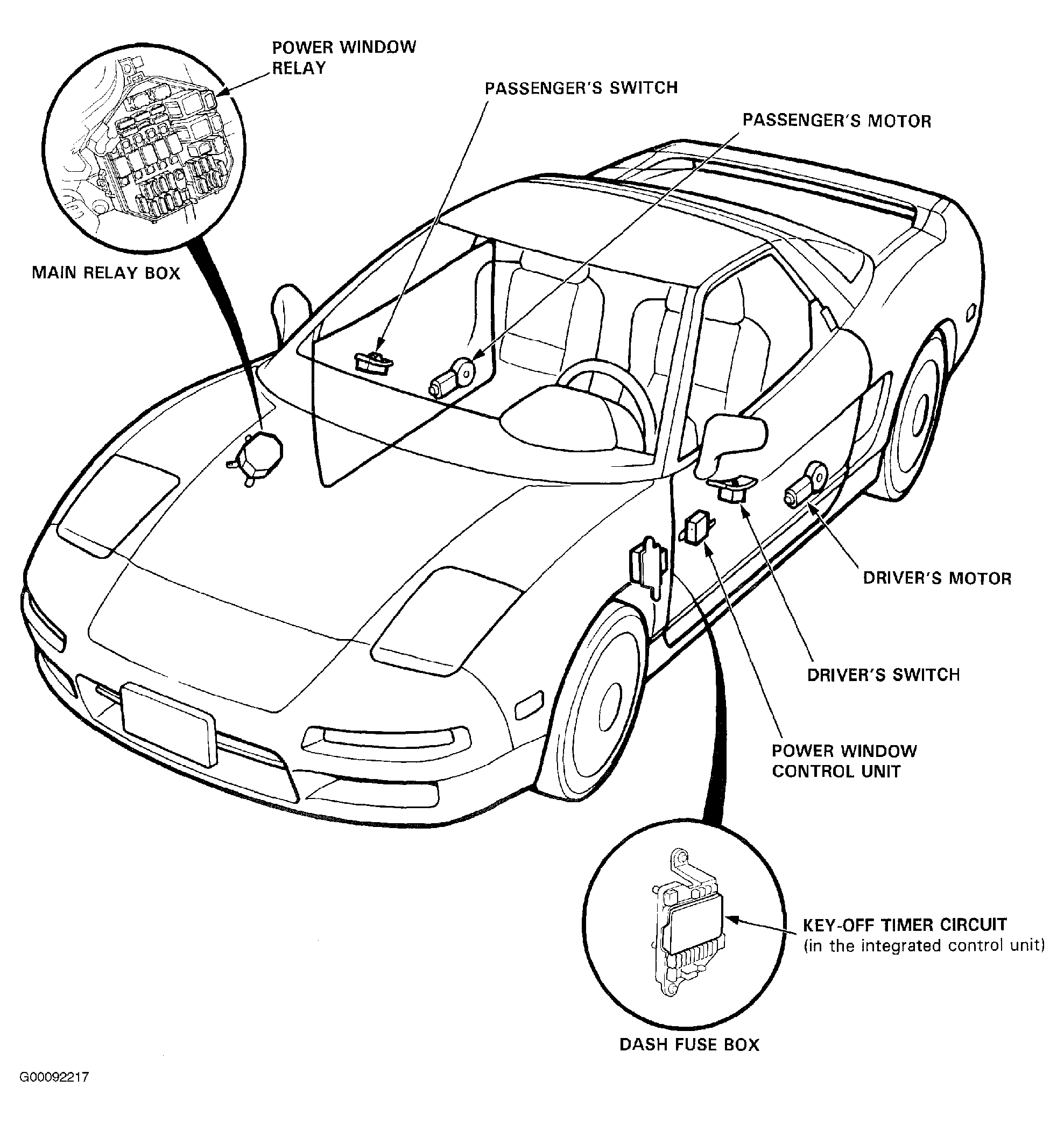

For power window key off timer component location, see Figure . To diagnose power window key off timer fault, follow diagnostic flow chart. See Fig 1 . For more information on power windows, see POWER WINDOWS SYSTEMS -- NSX & NSX-T article in ACCESSORIES & EQUIPMENT.

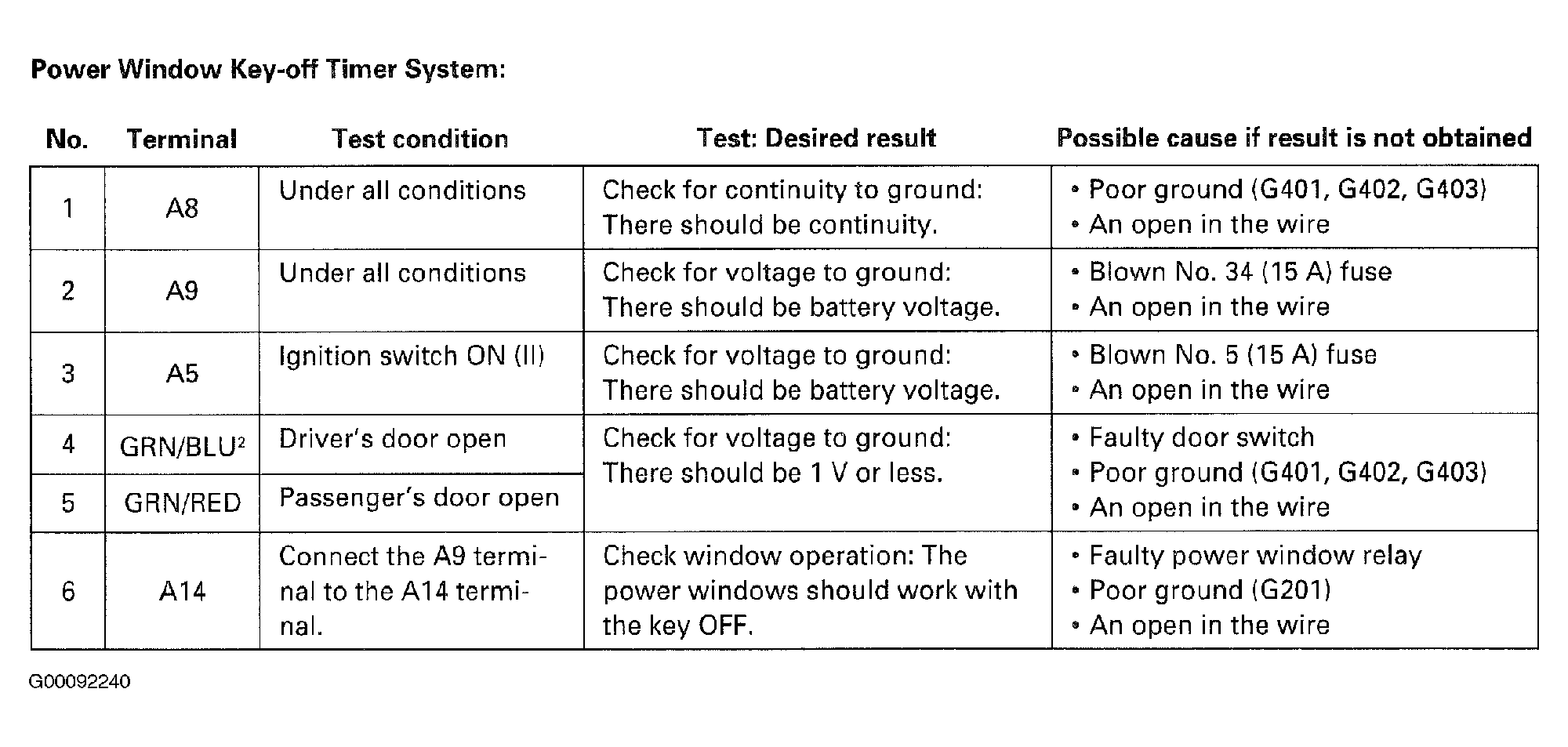

Fig 1: Power Window Key-Off Timer System Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
