Rear Window Defogger Timer System

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2005 Acura NSX, 2004 Acura NSX, 2003 Acura NSX-T, 2003 Acura NSX, and 2002 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

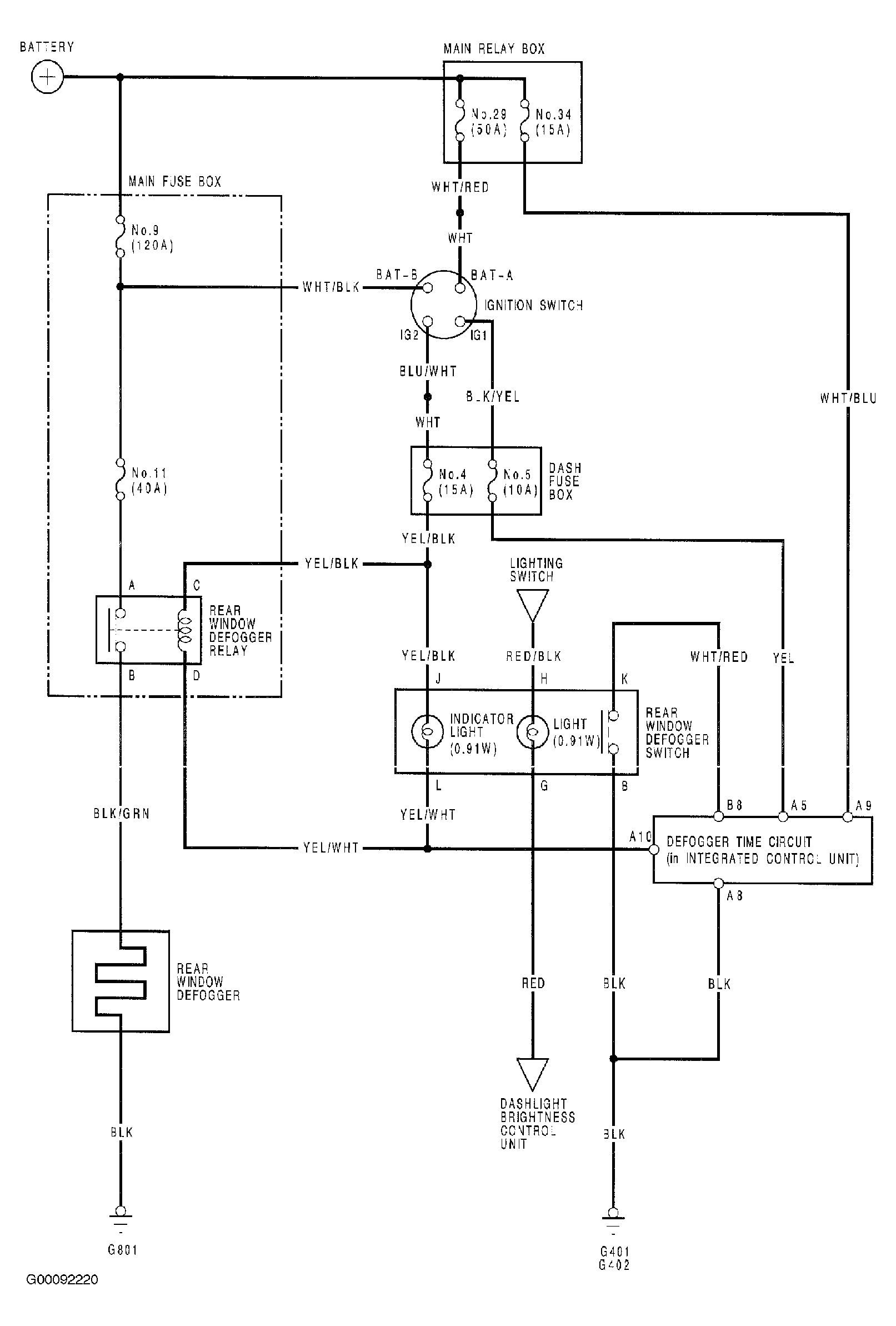

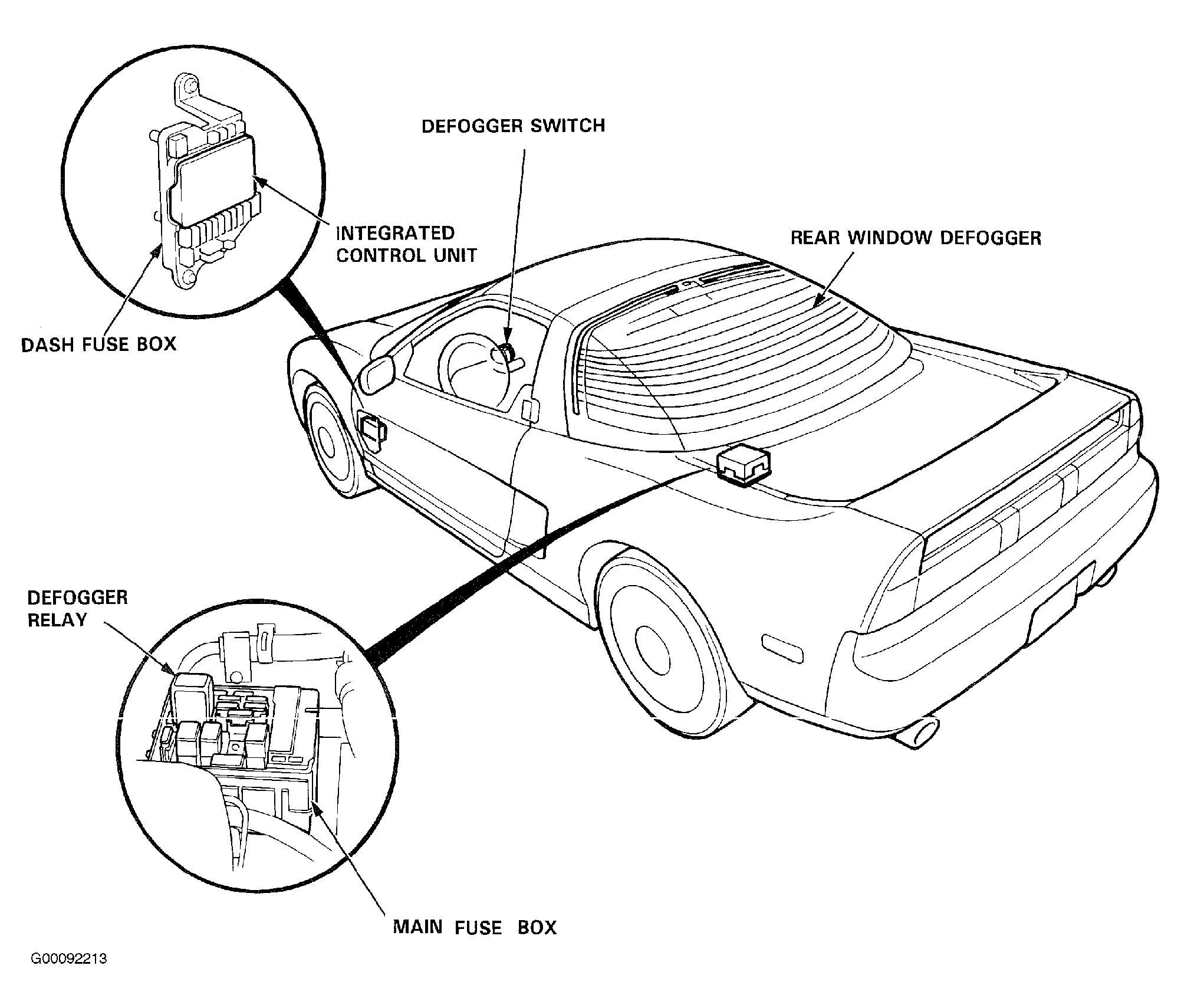

For rear window defogger component location and circuit diagram, see Figure and Figure . To diagnose rear window defogger, follow diagnostic flow chart. See Fig 1 . For more information on rear window defogger system, see REAR WINDOW DEFOGGER SYSTEM -- NSX & NSX-T article in ACCESSORIES & EQUIPMENT.

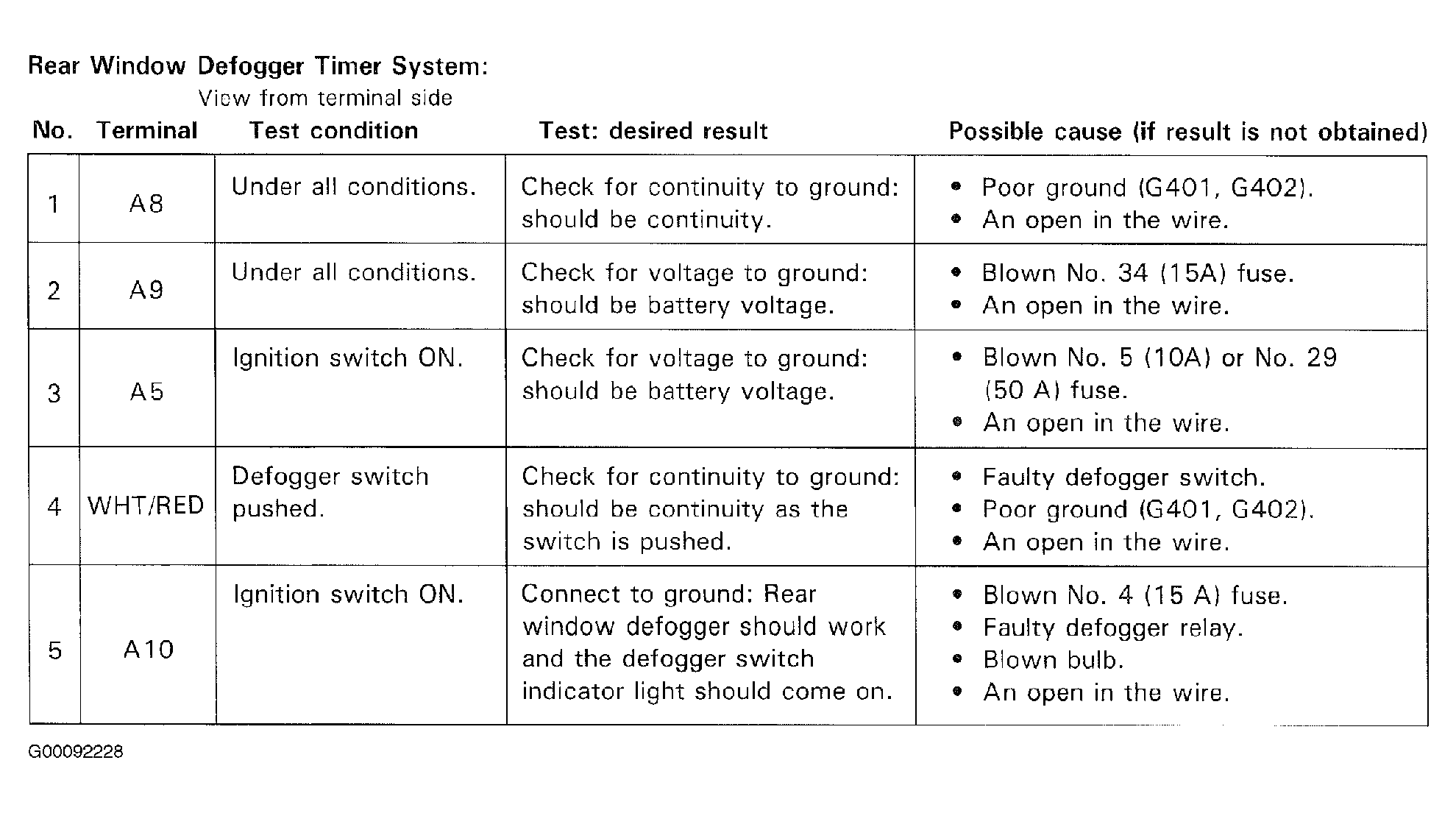

Fig 1: Rear Window Defogger Timer System Input Test
G00092228Courtesy of AMERICAN HONDA MOTOR CO., INC.
