Trunk Opener Control Unit / Input Test
Trunk Opener Control Unit / Input TestNOTE:
- Before testing. go to the Troubleshooting Guide. Initial Inspection and Diagnostic Overview Be sure to go through self-diagnosis function modes 1 and 2.
Self-Diagnosis Function (Mode 1)
Self-Diagnosis Function (Mode 2)

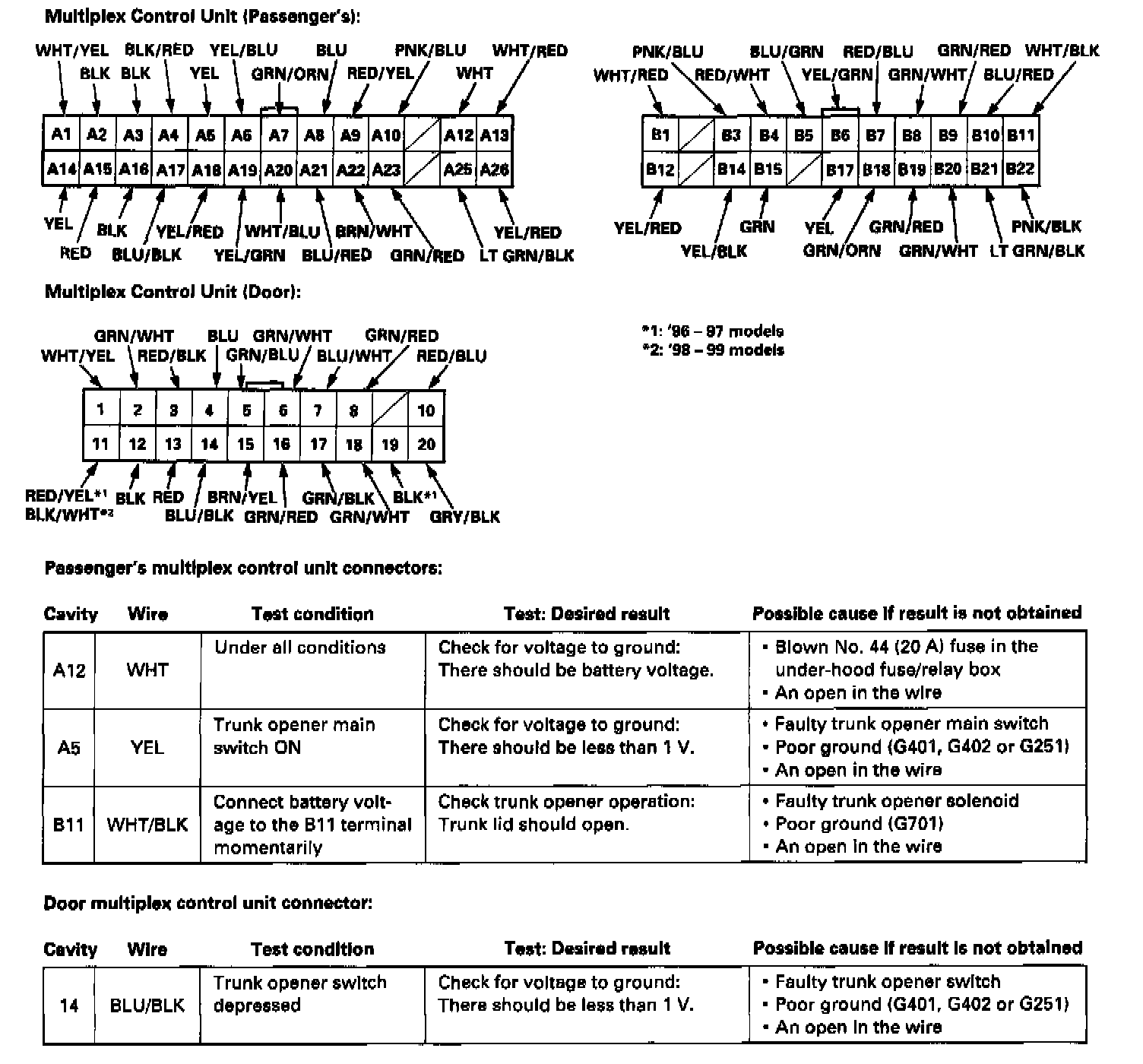

- All connector views are from the wire side of female terminals unless otherwise noted.
Inspect the connector and socket terminals to be sure they are all making good contact,
If the terminals are bent. loose or corroded, repair them as necessary, and recheck the system.
If the terminals look OK, make the following input tests at the connector.
- If any test indicates a problem, find and correct the cause. then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace it.
