Fuse/Relay Box

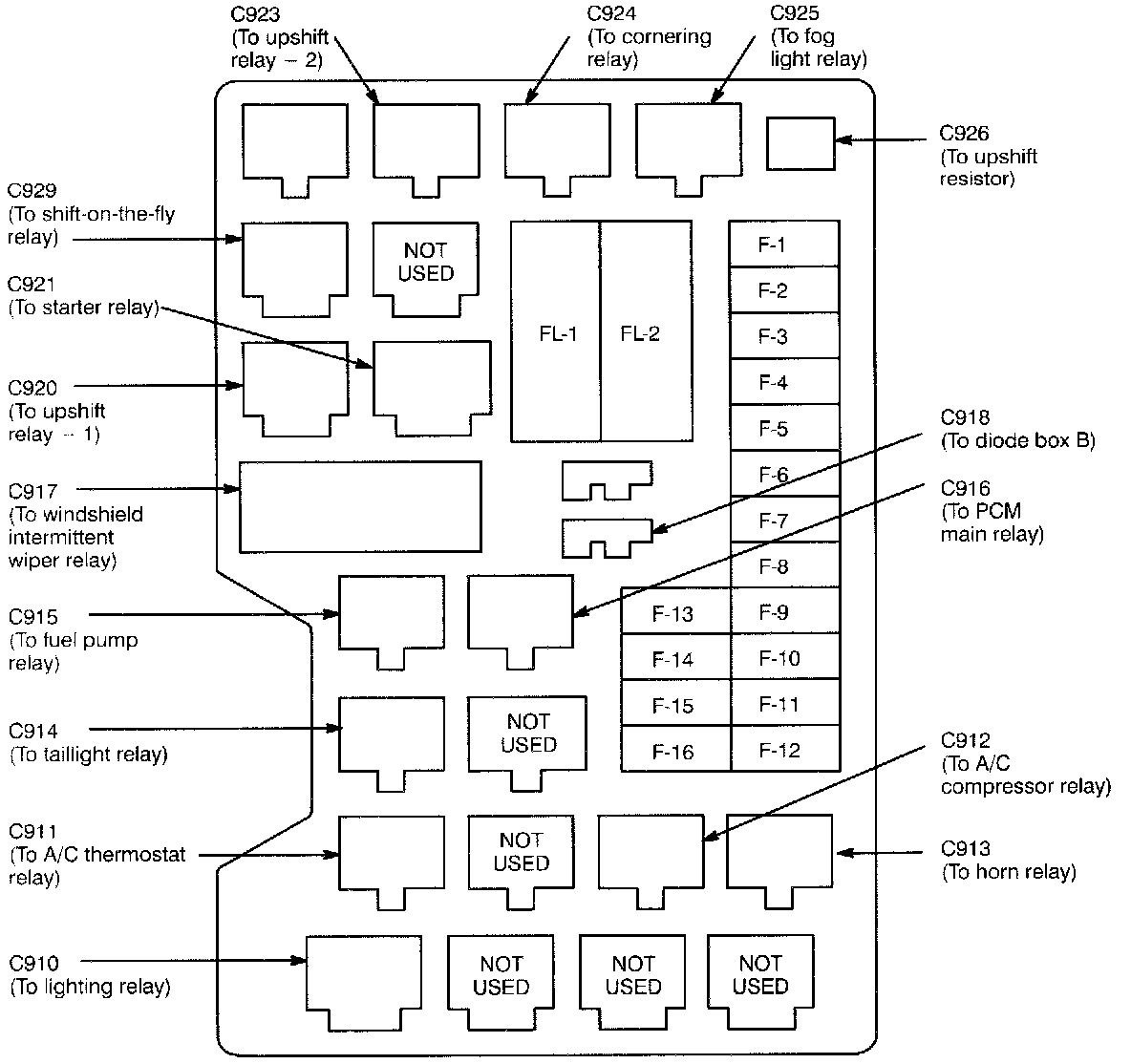

Fuse/Relay Information-Fuse/Relay Box (Part 1a Of 2):




Fuse/Relay Information-Fuse/Relay Box (Part 1b Of 2):




Fuse/Relay Information-Fuse/Relay Box (Part 2 Of 2):
