Fan Control Module/Unit

If fan does not operate, check for open or short circuits in wiring between components and fan control module or fan control unit. See appropriate FAN CONTROL MODULE TERMINALS  or FAN CONTROL UNIT TERMINALS  table. Also see WIRING DIAGRAMS  . If all wiring and other components are okay, replace fan control unit.

FAN CONTROL MODULE TERMINALS (2.2CL & 2.3CL)

Terminal No. (1) Wire Color Circuit
1 Yellow Radiator Fan Relay (+)
2 Black/Yellow Power Supply (Ign. On)
3 Yellow/White Condenser Fan Relay (+)
4 Black Ground
5 White/Green ECT Switch "B"
6 White Power Supply (Ign. Off)
7 Black/Yellow Power Supply (Ign. On)
8 Green Condenser & Radiator Fan Relay (-)
(1) See Fig 1 .
Fig 1: Identifying Radiator Fan Control Module Connector Terminals (2.2CL, 2.3CL & 3.0CL)
G97E08809Courtesy of AMERICAN HONDA MOTOR CO., INC.

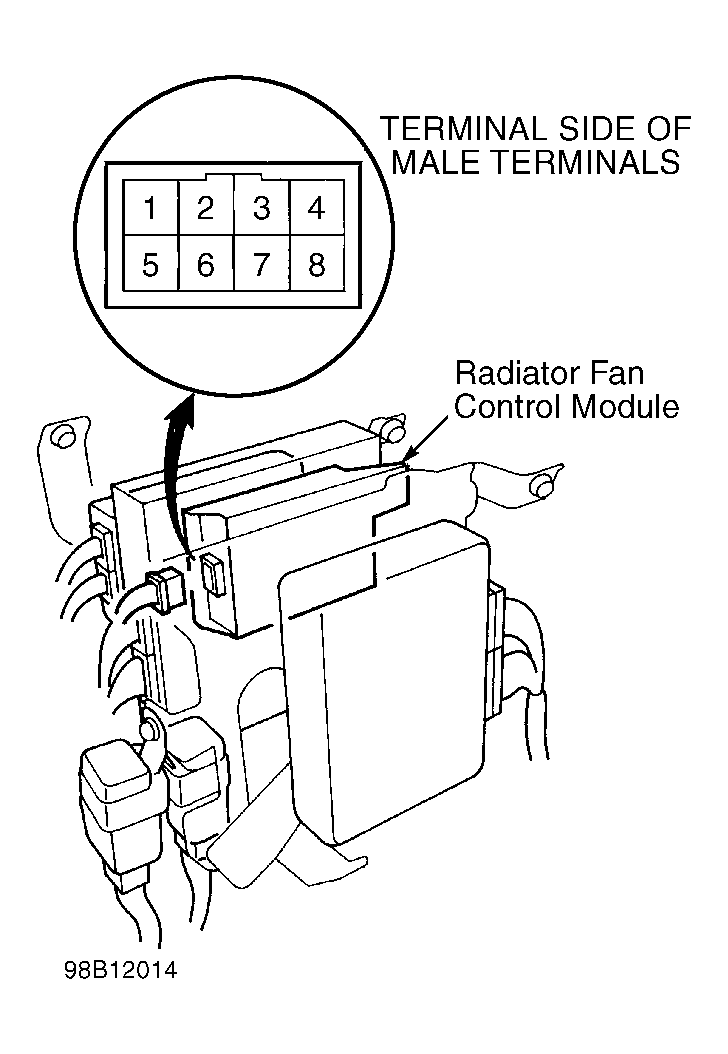

Fig 2: Identifying Radiator Fan Control Module Connector Terminals (2.5TL)
G98B12014Courtesy of AMERICAN HONDA MOTOR CO., INC.
FAN CONTROL MODULE TERMINALS (2.5TL)

Terminal No. (1) Wire Color Circuit
1 Yellow Radiator Fan Relay (+)
2 Yellow/Black Power Supply (Ign. On)
3 Yellow/White Condenser Fan Relay (+)
4 Black Ground
5 White/Green ECT Switch "B"
6 White/Green Power Supply (Ign. Off)
7 Black/Yellow Power Supply (Ign. On)
8 Lt. Grn./Yellow Condenser & Radiator Fan Relay (-)
(1) See Fig 2 .
FAN CONTROL MODULE TERMINALS (3.0CL)

Terminal No. (1) Wire Color Circuit
1 Yellow Radiator Fan Relay (+)
2 Black/Yellow Power Supply (Ign. On)
3 Yellow/White Condenser Fan Relay (+)
4 Black Ground
5 White/Green ECT Switch "B"
6 White/Yellow Power Supply (Ign. Off)
7 Black/Yellow Power Supply (Ign. On)
8 Green Condenser & Radiator Fan Relay (-)
(1) See Fig 1 .
FAN CONTROL MODULE TERMINALS (3.2TL)

Terminal No. (1) Wire Color Circuit
1 Yellow Condenser Fan Relay (+)
2 Black/Yellow Power Supply (Ign. On)
3 Yellow/White Radiator Fan Relay (+)
4 Black Ground
5 Orange Engine Oil Temp. Sw.
6 White/Green Power Supply (Ign. On)
7 Black/Yellow Power Supply (Ign. On)
8 Lt. Grn./Yellow Condenser & Radiator Fan Relay (-)
(1) See Fig 3 .

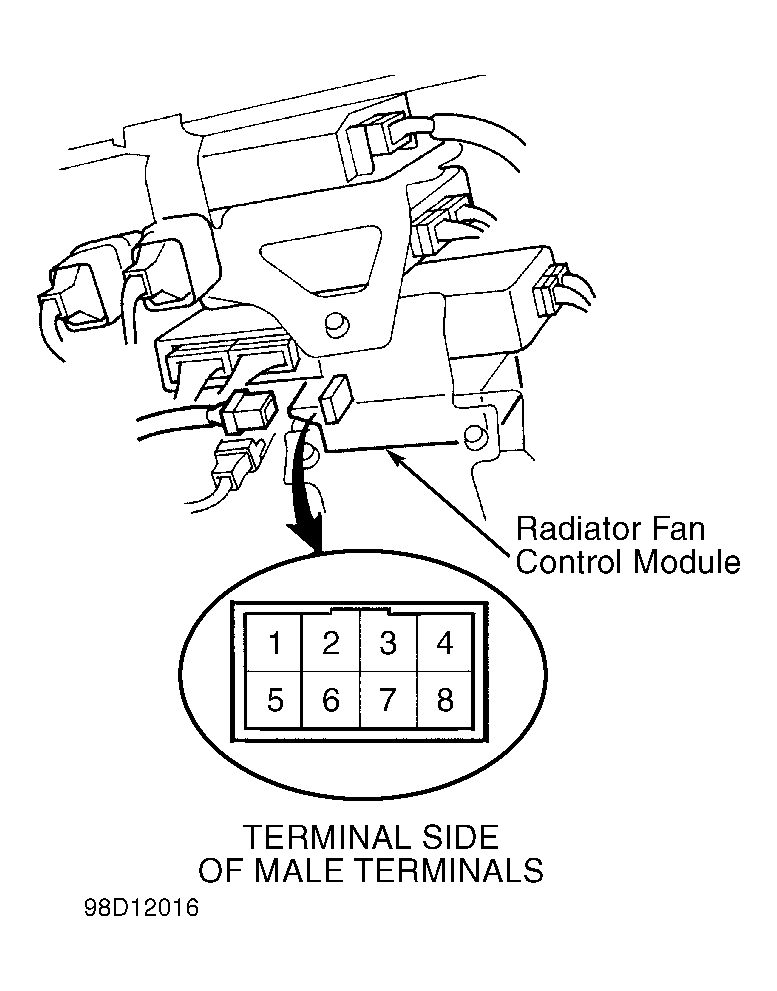

Fig 3: Identifying Radiator Fan Control Module Connector Terminals (3.2TL)
G98D12016Courtesy of AMERICAN HONDA MOTOR CO., INC.
FAN CONTROL UNIT TERMINALS (3.5RL)

Terminal No. (1) Wire Color Circuit
1 Green/Red A/C Pressure Sw.
2 --------- Not Used
3 Black Ground
4 Red/White A/C Pressure Sw.
5 Lt. Green/Black Radiator Fan Relay (-)
6 Green/Black Fan Control Sensor (-)
7 Black/Yellow Power Supply (Ign. On)
8 Pink PCM/ECM
10 Blue/Orange Condenser Fan Relay (-)
11 ----------- Not Used
12 Blue/Green Fan Control Sensor (+)
(1) See WIRING DIAGRAMS.
