Rear Window Defogger Timer Circuit

For connector identification, see Figure. For input test, see Fig 1.

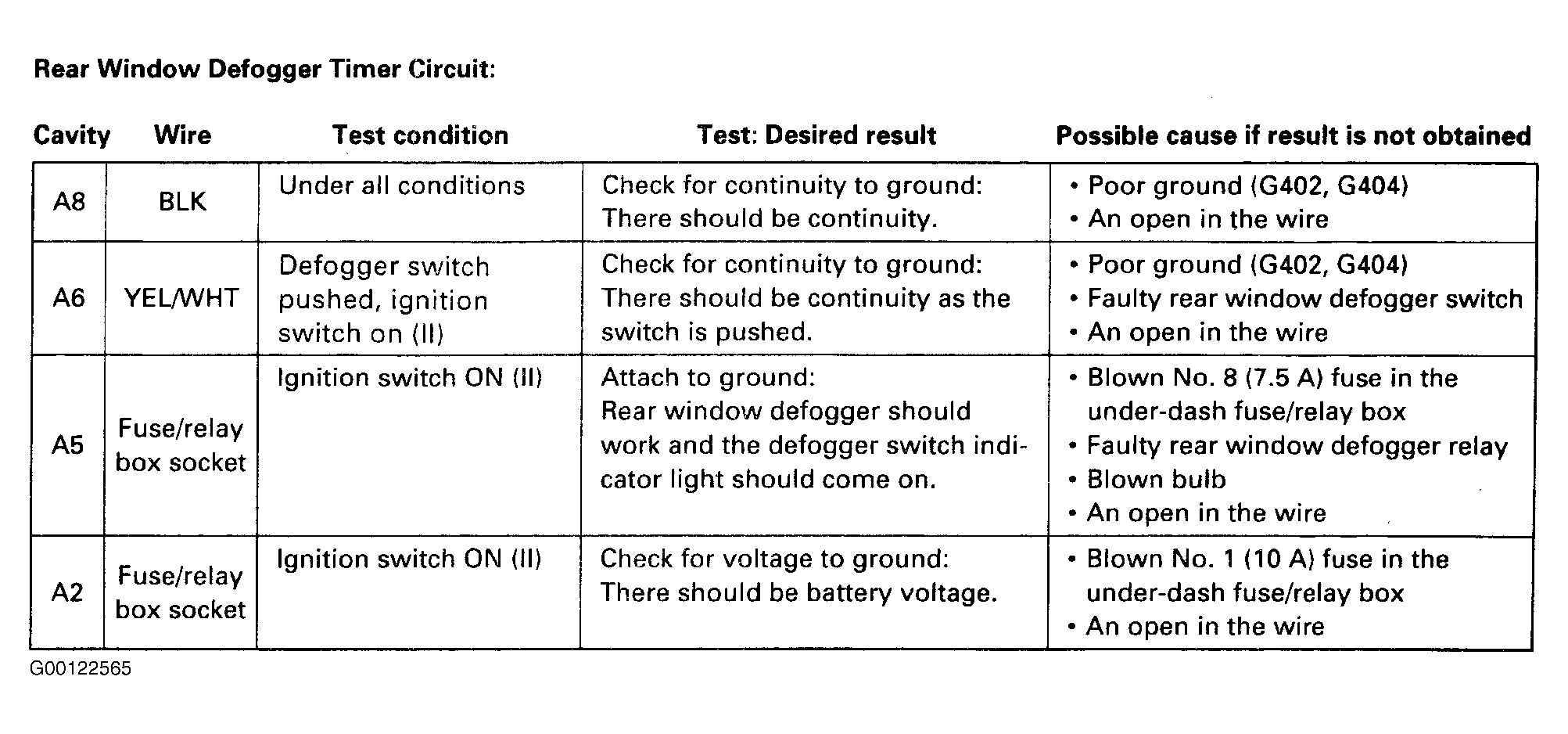

Fig 1: Rear Window Defogger Timer Circuit Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
