TCS (On/Off) Switch

With TCS switch disconnected and removed, check continuity between terminals No. 9 and 10. See Fig 1 . With switch released, (off position) continuity should not exist. With switch depressed, (on position) continuity should exist.

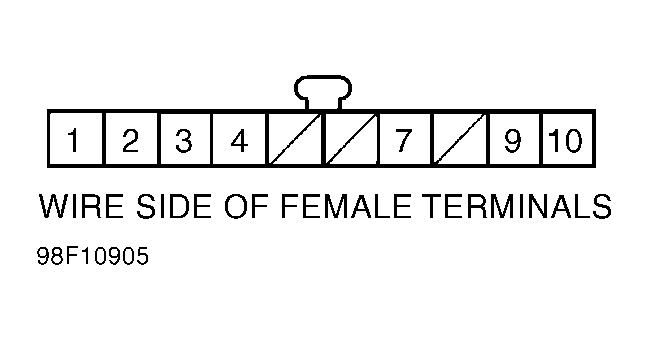

Fig 1: Identifying TCS Switch Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
