Control Units

CONTROL UNITS

Component Component Location
ABS Control Unit Behind glove box, on back of bracket. See Figure .
ABS Modulator Unit On right rear corner of engine compartment.
Cruise Control Unit Behind dash, left of steering column. See Figure .
Daytime Running Lamps (DRL) Control Unit Behind dash, above right kick panel.
Ignition Control Module (ICM) On right side of engine. See Figure .
Integrated Control Unit Behind left kick panel, on top of underdash fuse/relay box. See Figure .
Interlock Control Unit Behind dash, left of steering column, on bracket. See Figure .

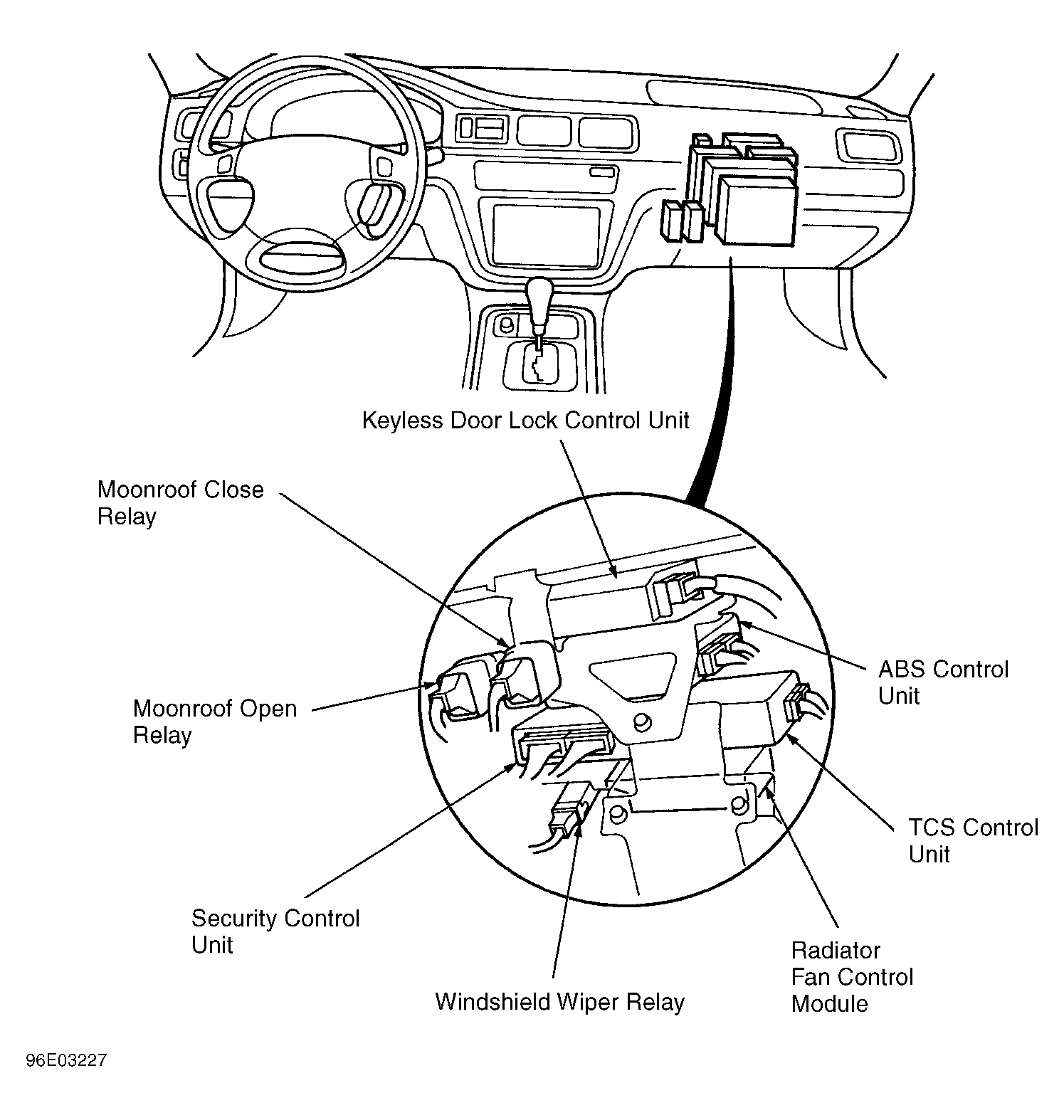

Keyless Door Lock Control Unit Behind glove box. See Figure .
Powertrain Control Module (PCM) On underside of front passenger's footrest. See Figure .
Radiator Fan Control Module Behind right side of dash, on bracket. See Figure .
Security Control Unit Behind right side of dash. See Figure .
Spark Plug Voltage Detection Module On right rear corner of engine compartment. See Figure .
SRS Unit Behind center of dash, below radio. See Figure .
TCS Control Unit Behind right side of dash, behind ABS control unit. See Figure .
