Ic Regulator

  1. Check for continuity between IC regulator terminals "B" and "F". See Fig 1 . Note ohmmeter reading.
  2. Reverse leads, and repeat test. Continuity should only be present in one direction. If continuity is not as specified, replace IC regulator assembly.

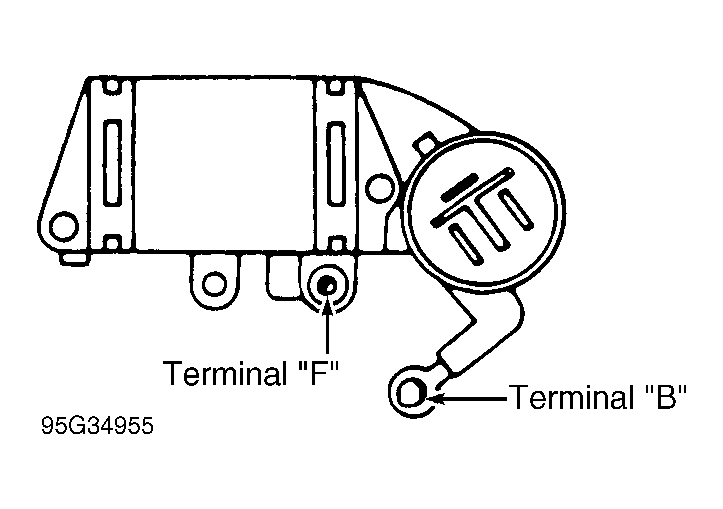

Fig 1: Identifying IC Regulator Terminals
G95G34955Courtesy of AMERICAN HONDA MOTOR CO., INC.
