Combination Switch

WARNING: This page is about a different car, the 1997 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.
  1. If necessary, remove cruise control switch (part of combination switch assembly. See COMBINATION SWITCH under REMOVAL & INSTALLATION in STEERING COLUMN SWITCHES article.
  2. Disconnect cruise control switch harness connector. Check continuity between specified terminals of combination switch connector with switch in appropriate position. See Fig 1 . Replace combination switch if readings are not as specified. See COMBINATION SWITCH under REMOVAL & INSTALLATION in STEERING COLUMN SWITCHES article.

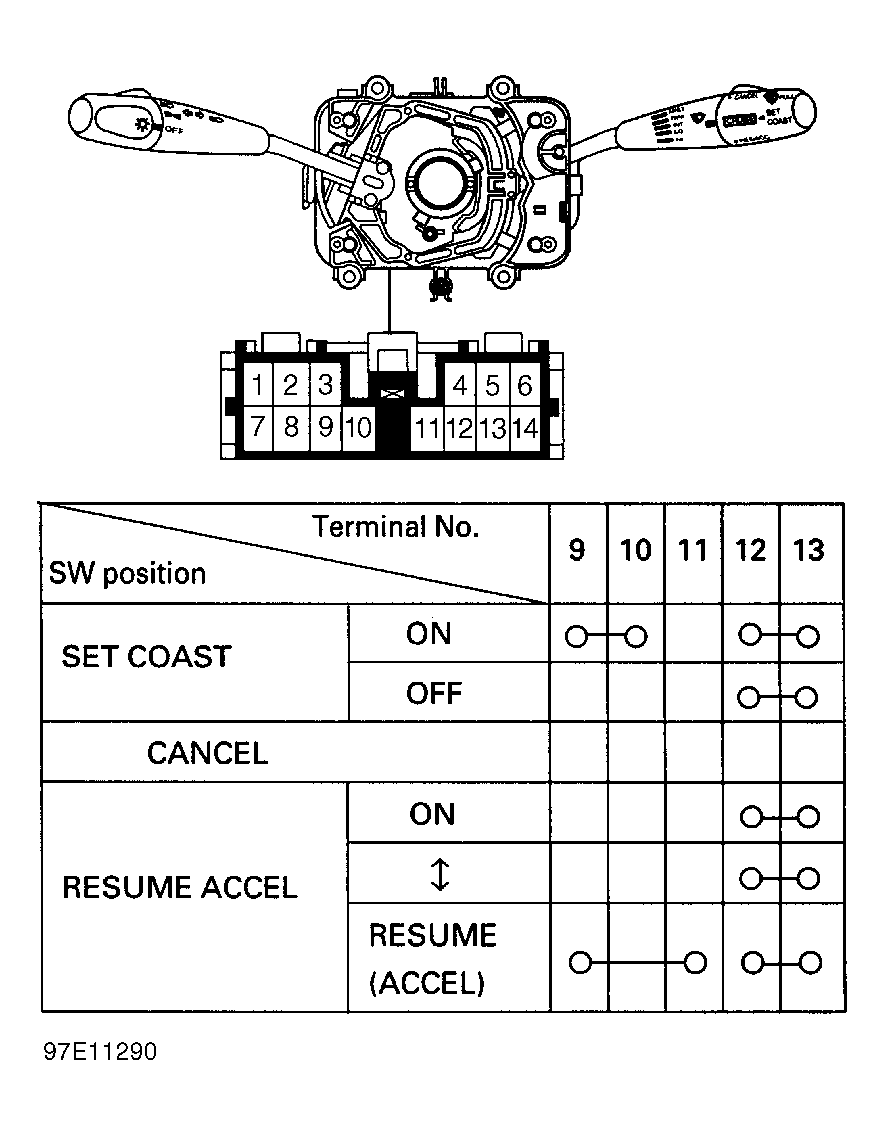

Fig 1: Identifying Combination Switch & Connector Terminals
G97E11290Courtesy of ISUZU MOTOR CO.
