Traction Control: Anti-Lock: Description

Anti-Lock Brake System (ABS) is designed to prevent wheel lock-up during hard braking. This allows driver to maintain control of vehicle under severe braking conditions. System consists of ABS control unit, wheel sensors, wheel pulsers (trigger wheel), ABS modulator unit (ABS pump, pump motor, inlet and outlet solenoid valves, reservoir and damping chamber), indicator light, master cylinder, power booster assembly, pump motor relay, fail-safe relay and connecting wiring. See Fig 1 or Fig 2 .

NOTE: For more information on brake system, see appropriate DISC article.

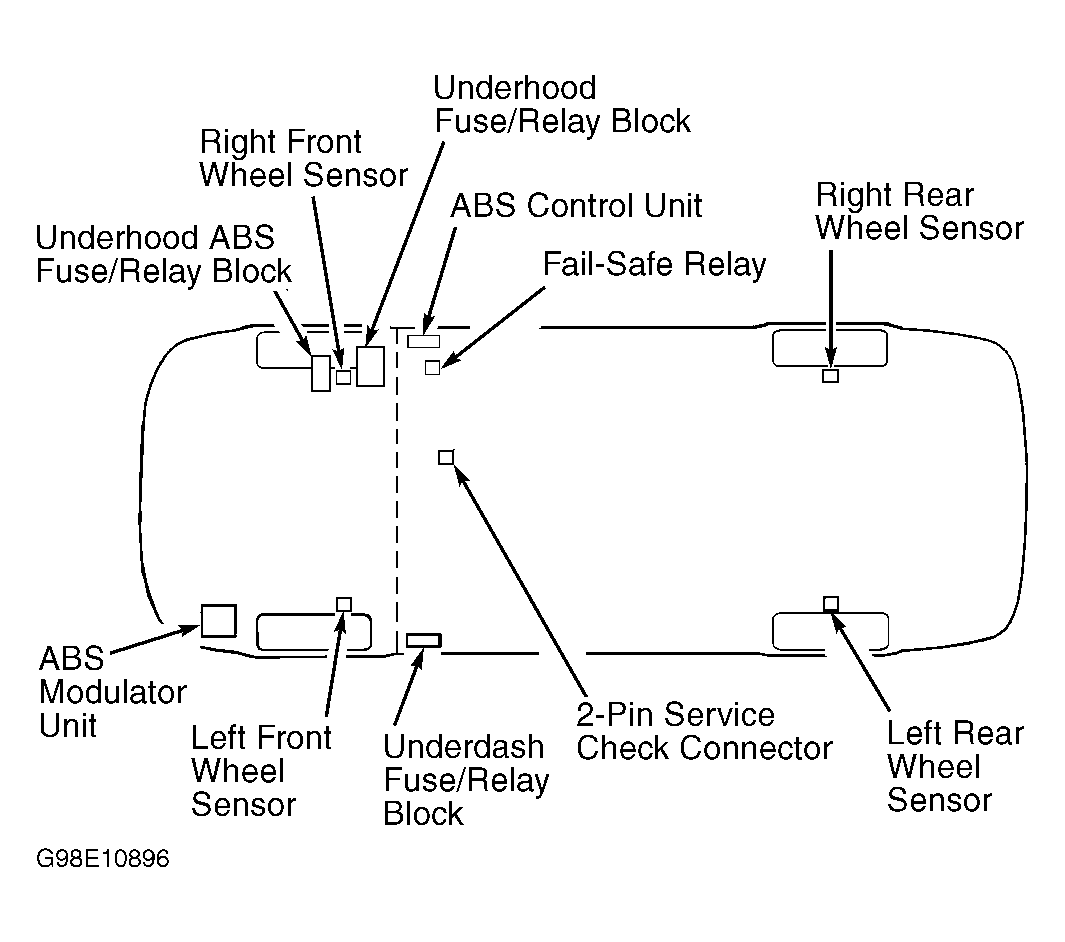

Fig 1: Locating ABS Components (2.3CL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

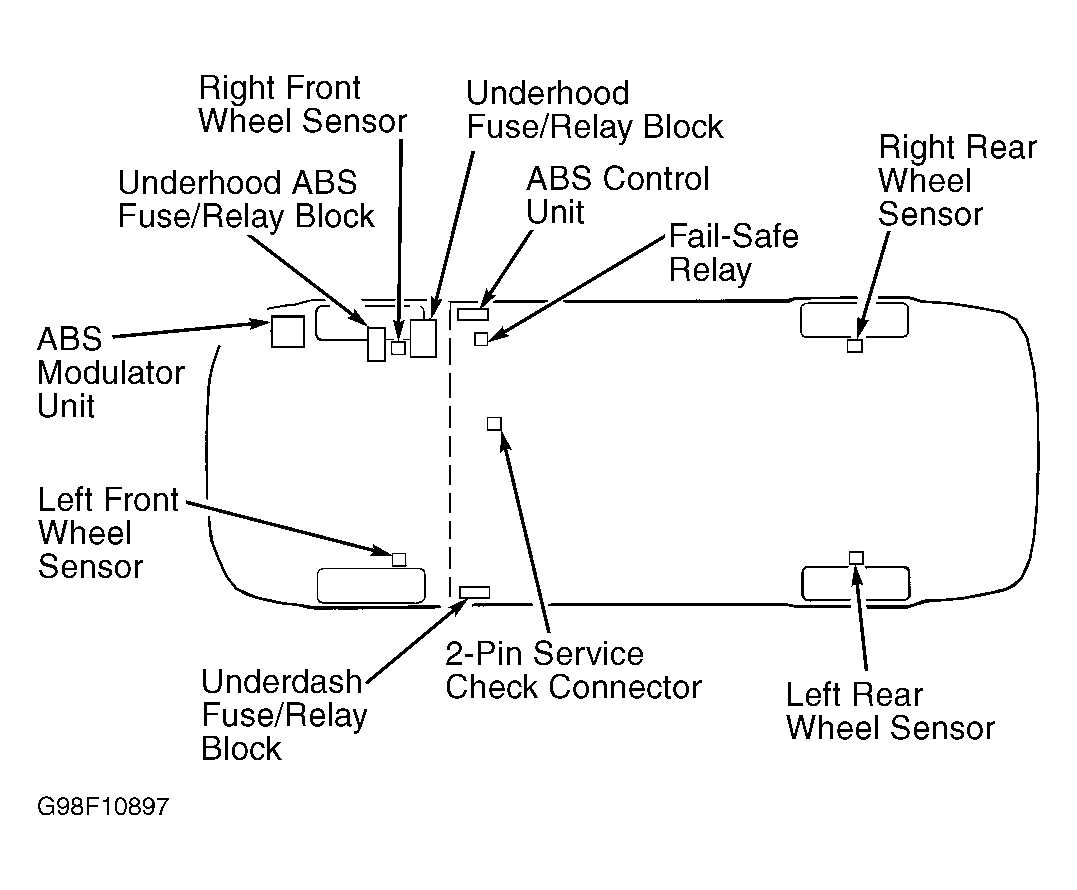

Fig 2: Locating ABS Components (3.0CL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

CAUTION: See ANTI-LOCK BRAKE SAFETY PRECAUTIONS article in GENERAL INFORMATION.
