Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
In-Line Diode "A" (Interior Lights) Above underdash fuse/relay box, taped to harness.
In-Line Diode "B" (Interior Lights) Behind right kick panel, taped to harness.
In-Line Diode No. 1 (Keyless Entry) Behind right kick panel.
In-Line Diode No. 2 (Keyless Entry) Behind right kick panel.
In-Line Diode No. 3 (Keyless Entry) Above right kick panel.
In-Line Diode No. 4 (Keyless Entry) Behind glove box.
Underdash Fuse/Relay Box Behind left side of dash. See Figure .

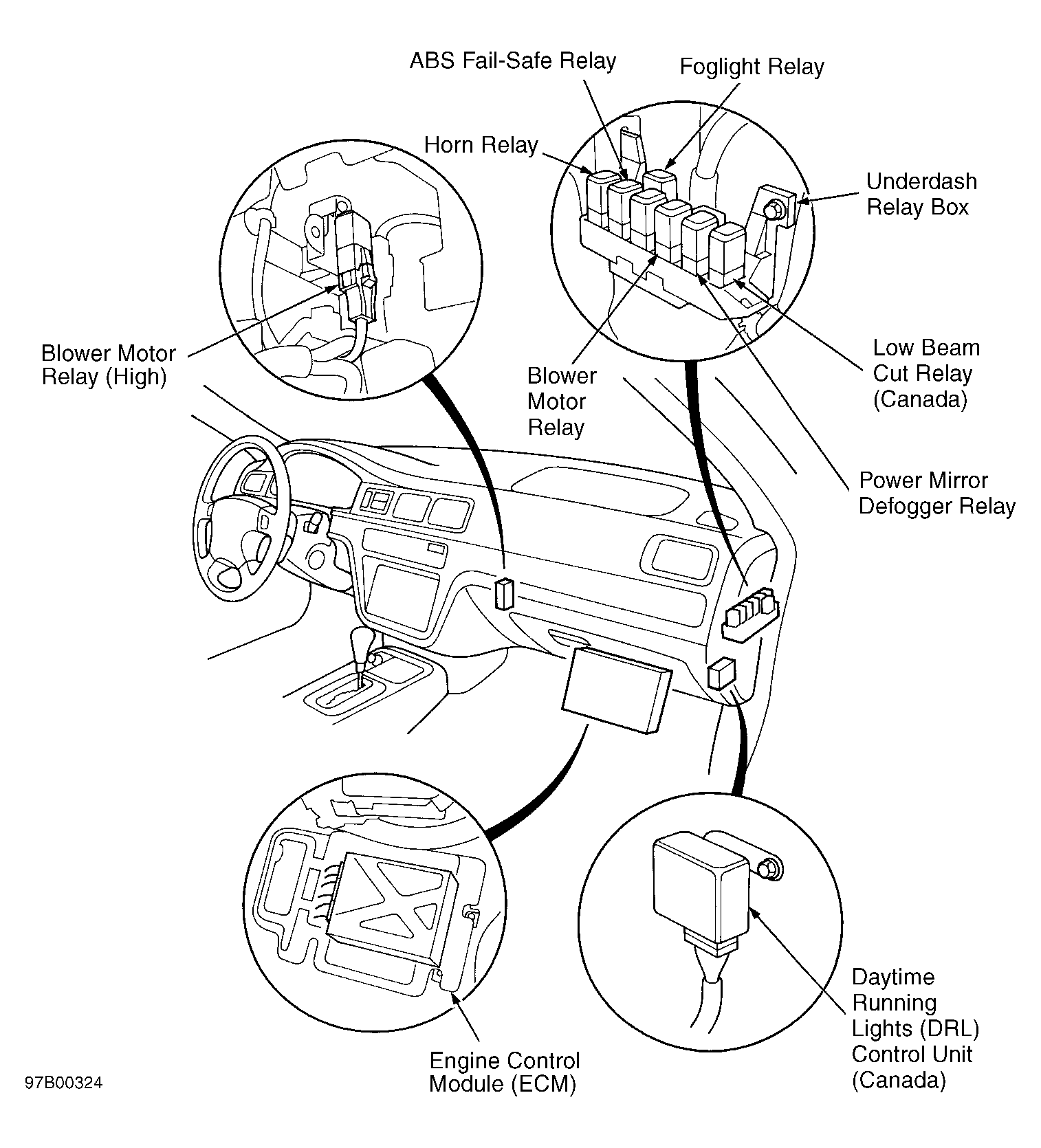

Underdash Relay Box Behind right side of dash. See Figure .

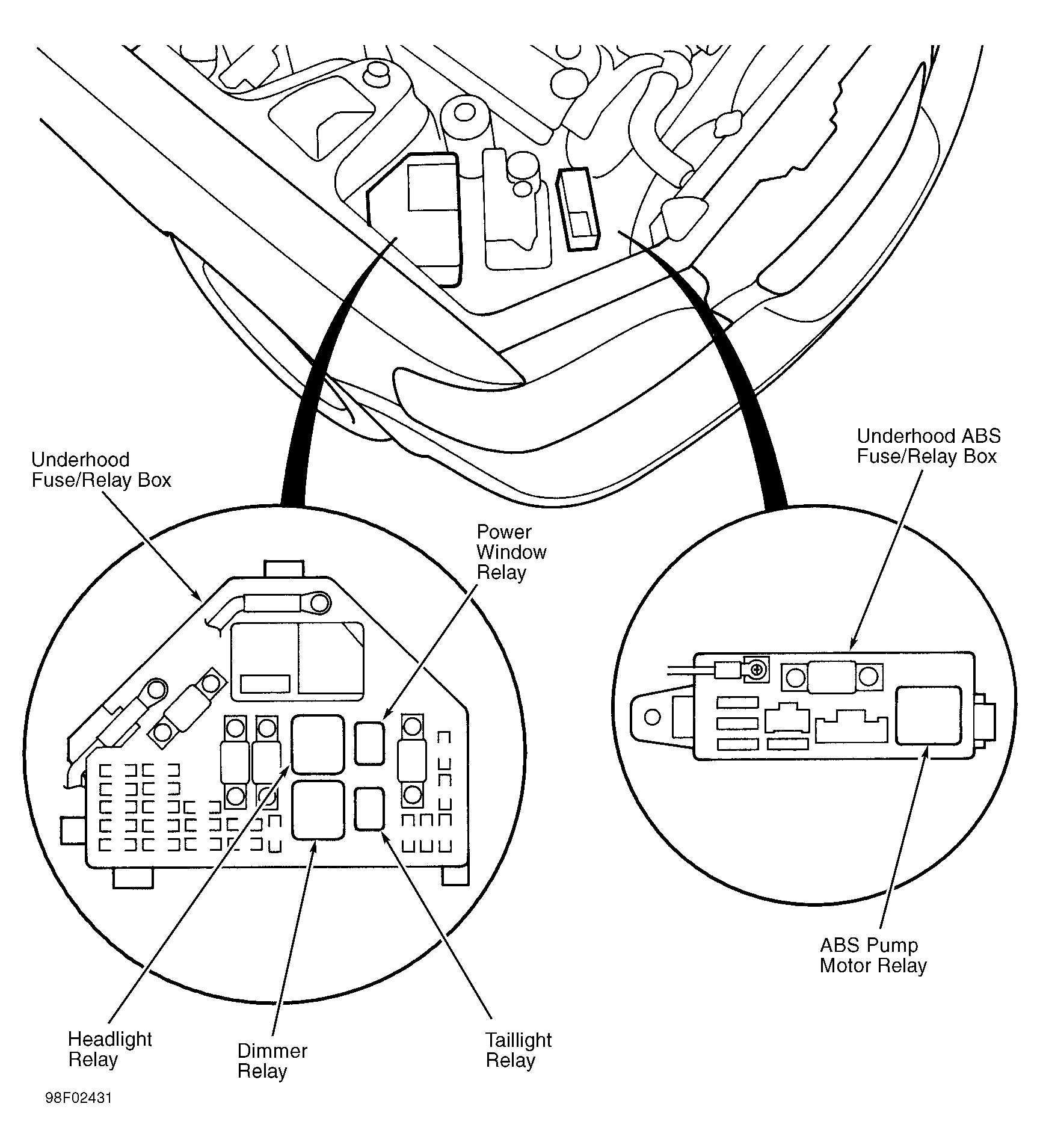

Underhood ABS Fuse/Relay Box On right front corner of engine compartment. See Figure .
Underhood Fuse/Relay Box On right side of engine compartment. See Figure .
