Component Locations

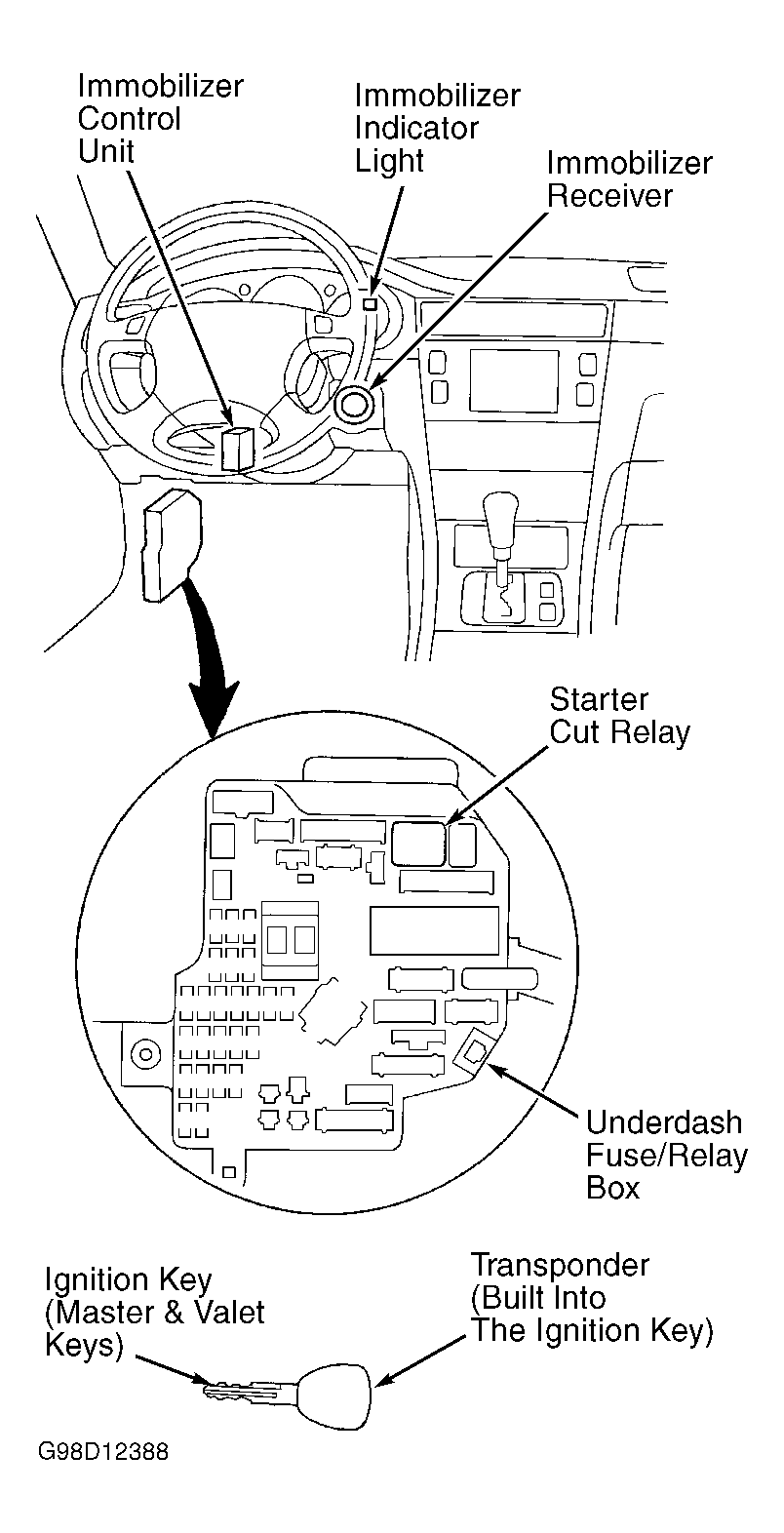

Fig 1: Locating Immobilizer System Components

G98D12388

Courtesy of AMERICAN HONDA MOTOR CO., INC.
