3.5RL (Without Memory)

Remove door panel and disconnect power mirror motor 8-pin connector and defogger 2-pin connector. See Fig 1. Using jumper wires, check motor operation by applying power and ground as specified. See POWER MIRROR MOTOR TEST (3 .5RL Without Memory) table. If motor does not function as specified, replace motor assembly.

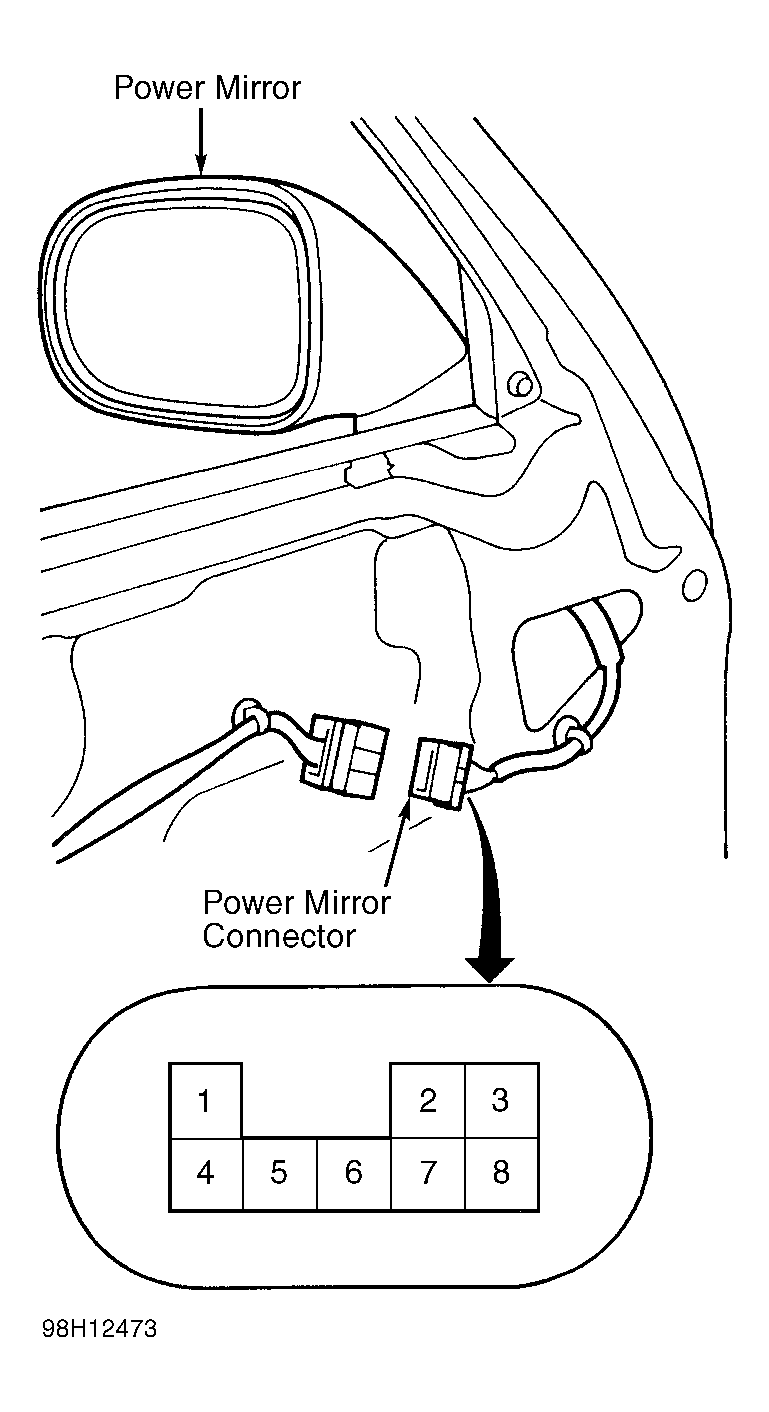

Fig 1: Power Mirror Motor Terminals (3.5RL Without Memory)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

POWER MIRROR MOTOR TEST (3.5RL WITHOUT MEMORY)

Application & Mirror Movement

⁽¹⁾ Battery Connection (+) & (-)

Tilt

6 & 5

Down

5 & 6

Swing

Left

5 & 4

Right

4 & 3

⁽¹⁾	Connect battery + and - terminals to indicated terminal.
