Removal & Installation (Integra)

Disable air bag system. See DISABLING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM. Remove upper and lower steering column covers. Unplug combination switch connectors and remove turn signal canceling sleeve. Remove combination switch mounting screws and switch. To install, reverse removal procedure.

CAUTION: On vehicles with TCS, DO NOT remove steering angle sensor from the combination switch.

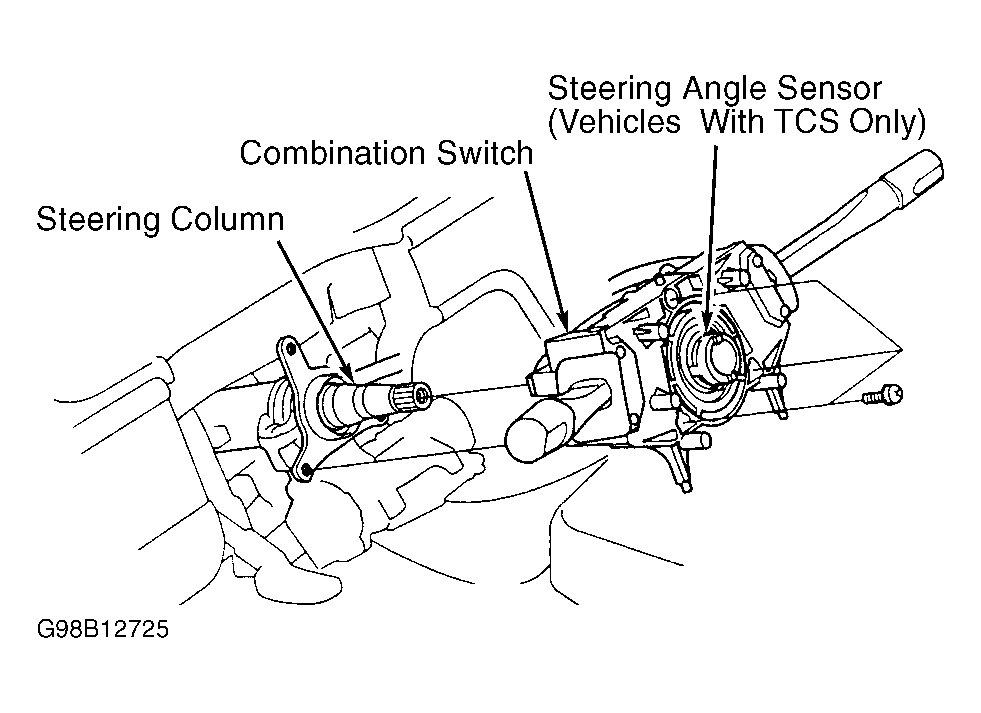

Fig 1: Removing Combination Switch
G98B12725Courtesy of AMERICAN HONDA MOTOR CO., INC.
