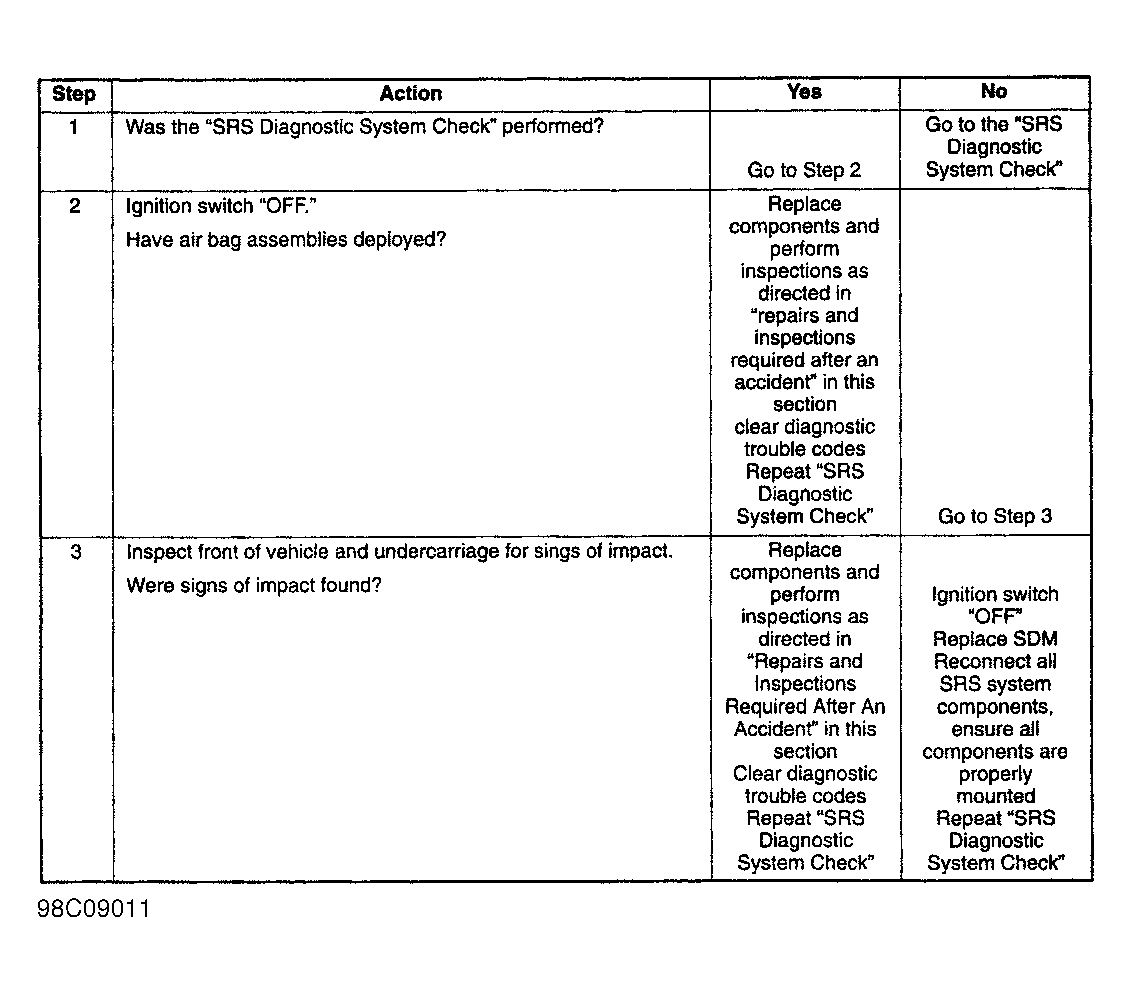

Diagnostic Chart Step References
NOTE:
Following step references refer to test step numbers on diagnostic chart. For circuit number and wire color identification, see WIRING DIAGRAMS
.
- If air bag assemblies have not deployed, DTC 51 and/or 53 may have set falsely.
- If DTC 51 and/or 53 has set with no signs of frontal impact, diagnostic trouble code has set falsely.
