Door Lock Switch Test

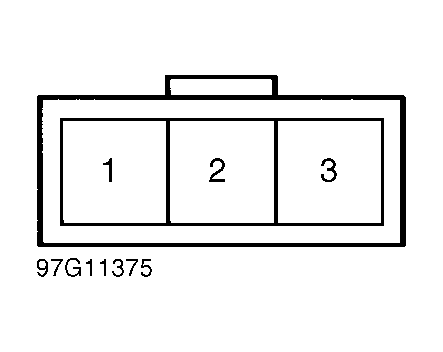

Remove door inside handle case from interior door trim panel. Disconnect 3-pin connector from key cylinder switch harness. Using an ohmmeter, check for continuity between indicated terminals with switch in specified position. See DOOR KEY CYLINDER SWITCH & DOOR LOCK SWITCH TEST  table. See Figure . If continuity is not as specified, replace switch.
