Speed Sensor Replacement

  1. Disconnect the connectors from the mainshaft and countershaft speed sensors.
  2. Remove the bolt securing the mainshaft speed sensor, then remove the mainshaft speed sensor from the end cover.
    Fig 1: Removing Mainshaft Speed Sensor
    G01159882
  3. Remove the bolt securing the countershaft speed sensor, then remove the countershaft speed sensor from the transmission housing.

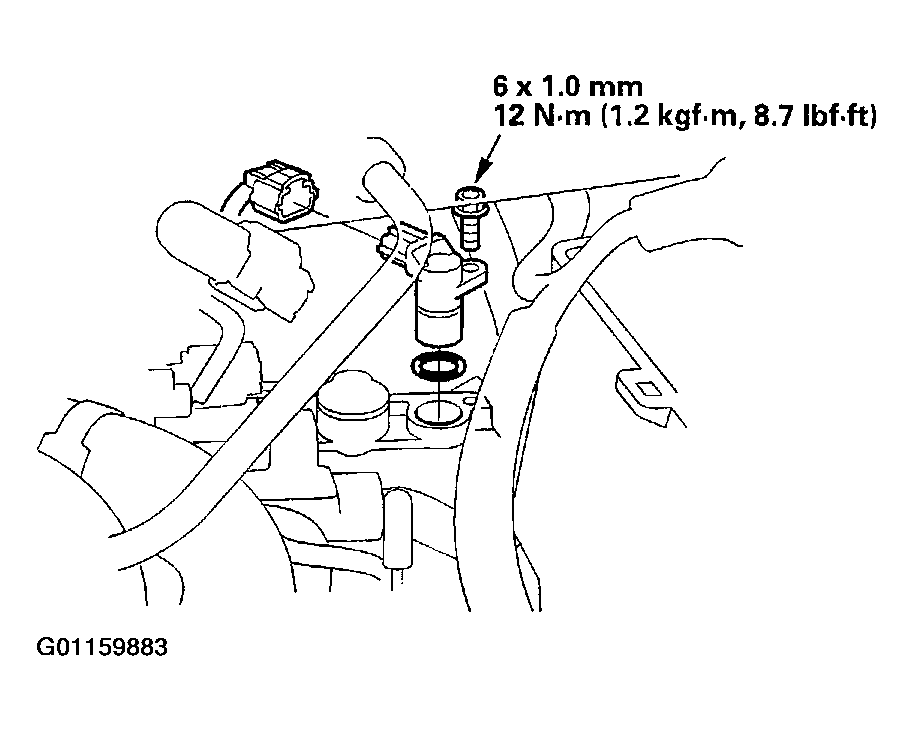

    Fig 2: Removing Countershaft Speed Sensor
    G01159883
  4. Replace the O-rings with new ones before installing the sensors.
  5. Install the mainshaft and countershaft speed sensors, then connect the connectors.
