Power Mirror Switch Test: Notes

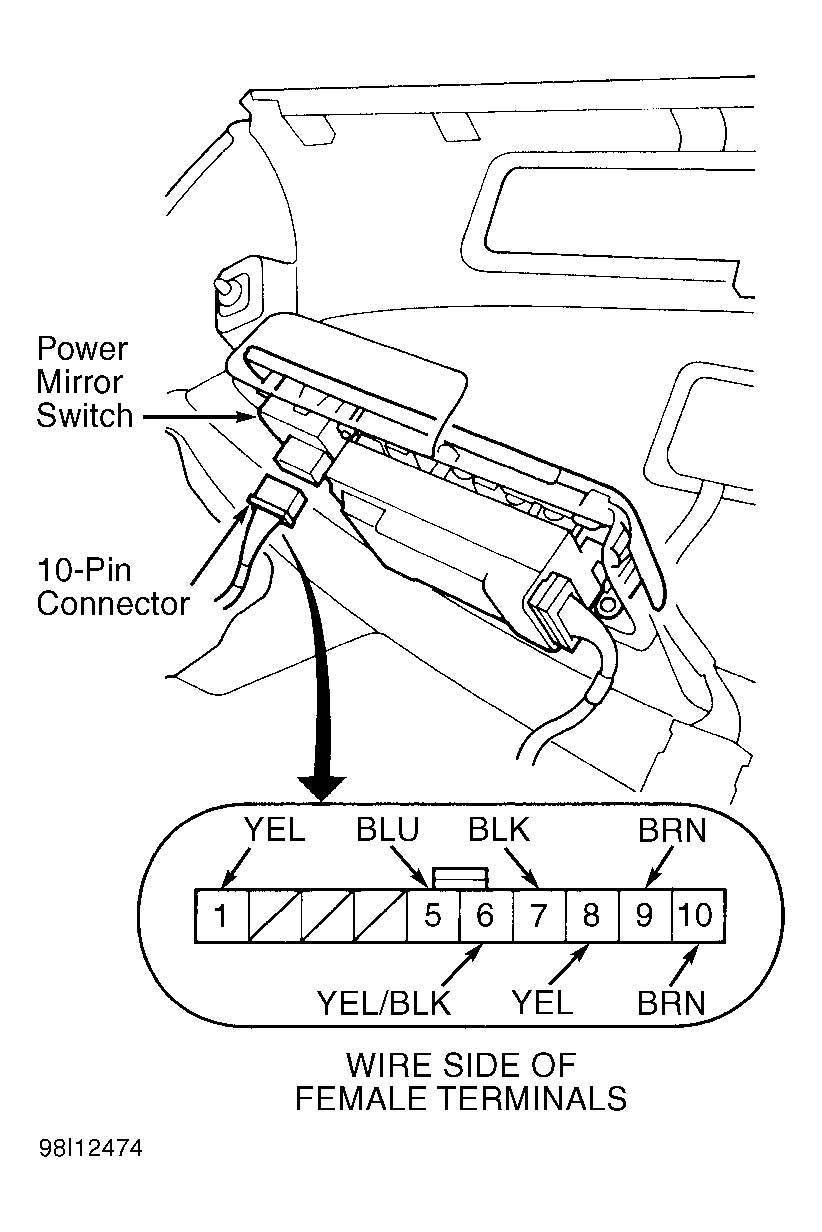

Remove power mirror switch. See POWER MIRROR SWITCH  under REMOVAL & INSTALLATION. Using an ohmmeter, check continuity between specified switch terminals. See Figure through Figure . See appropriate POWER MIRROR SWITCH CONTINUITY TEST table. If switch does not test as specified, replace faulty power mirror switch.
