Vacuum Connections

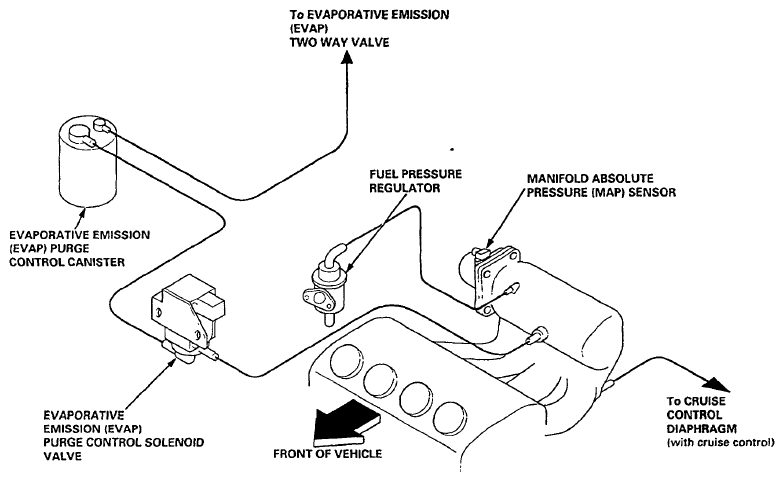

Fig 1: Vacuum Connections System Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

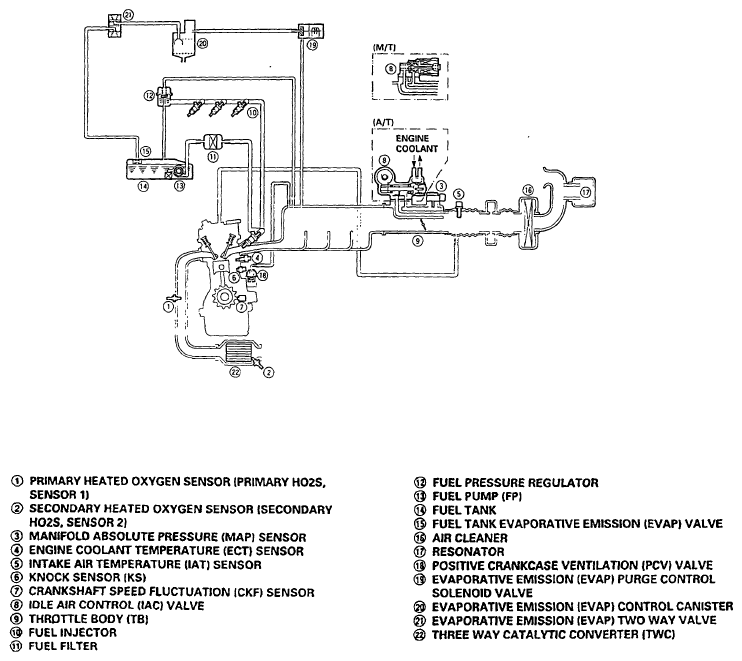

Fig 2: Vacuum Connections System Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
