Troubleshooting Flowchart - Countershaft Speed Sensor

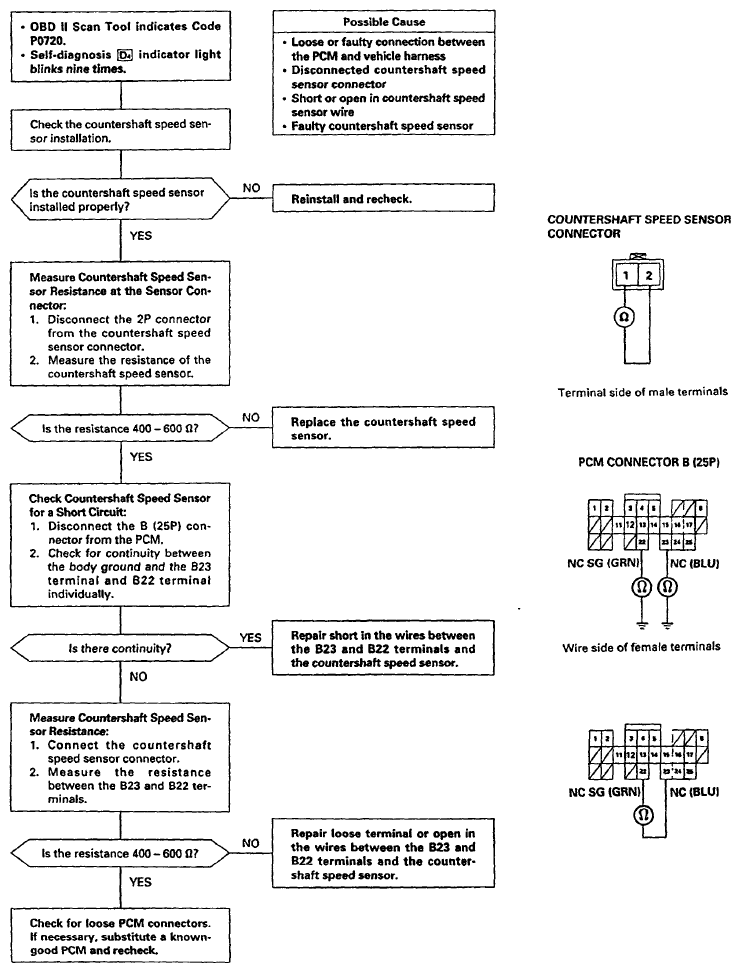

Fig 1: Troubleshooting Flowchart - Countershaft Speed Sensor
G06288236Courtesy of AMERICAN HONDA MOTOR CO., INC.
