PCM Circuit Diagram (A/T Control System)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
PCM Circuit Diagram (A/T Control System)

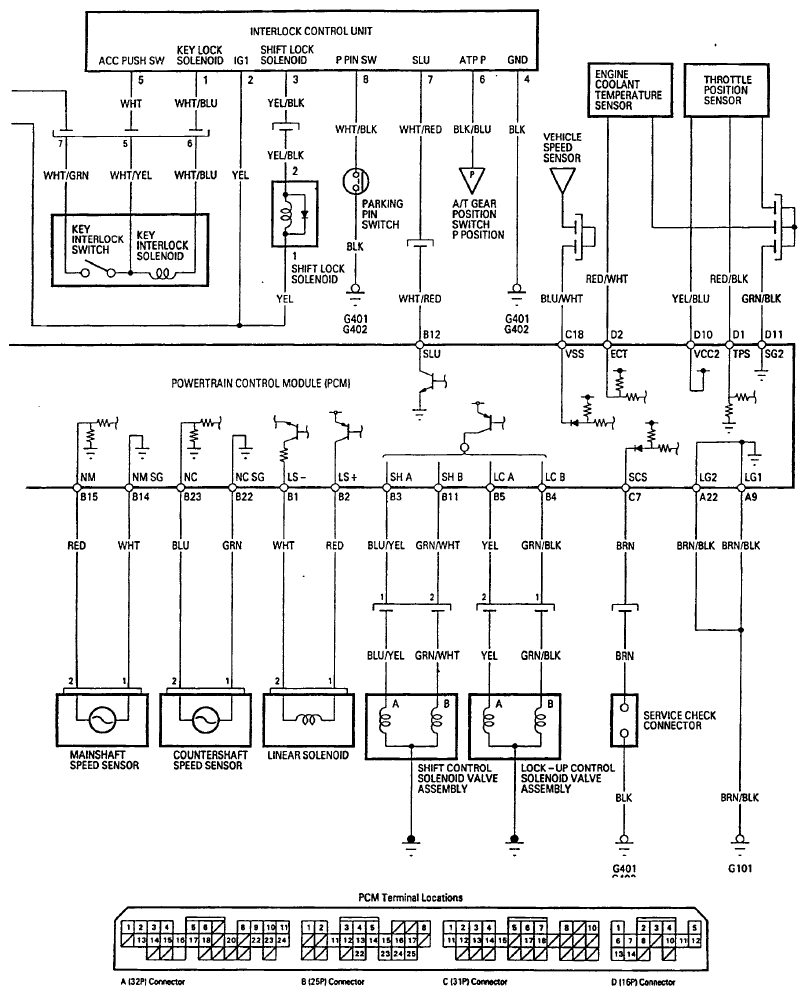

Fig 1: PCM Circuit Diagram - A/T Control System (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

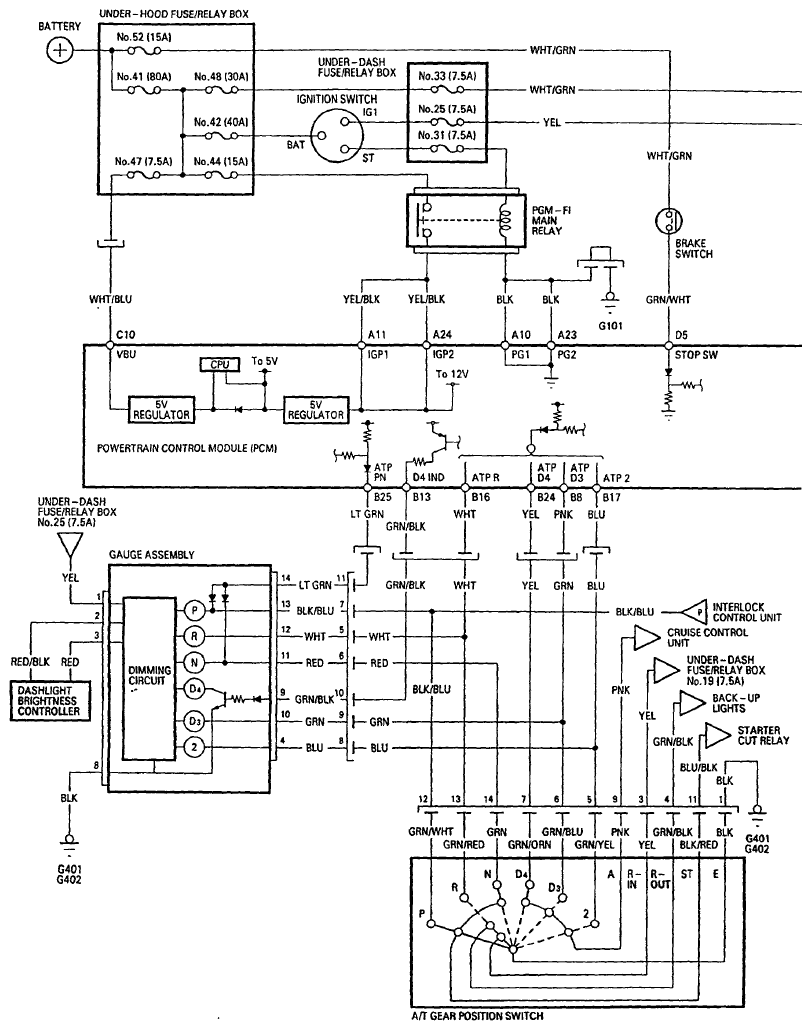

Fig 2: PCM Circuit Diagram - A/T Control System (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
