Component Locations

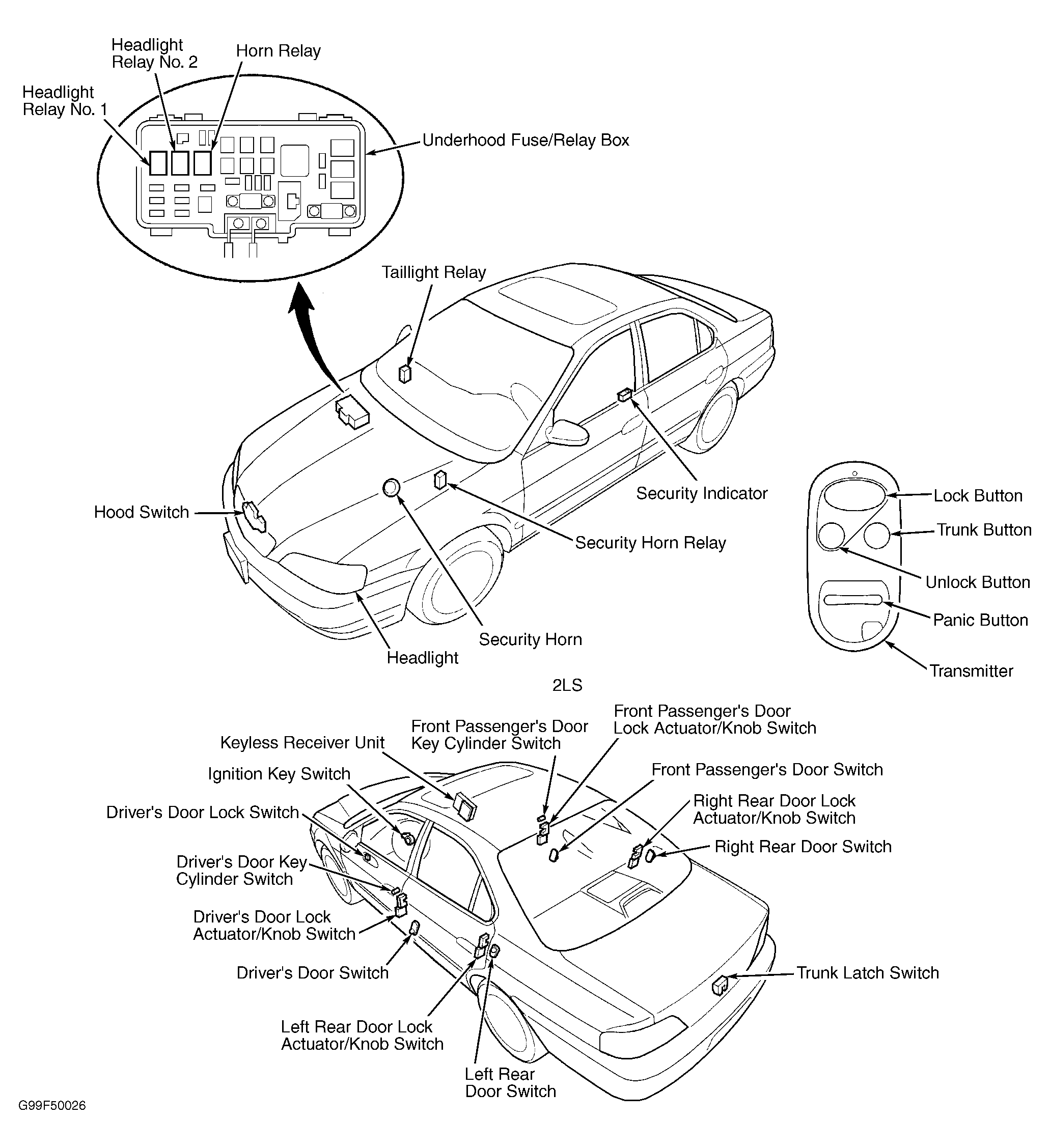

Fig 1: Locating Anti-Theft Components (1 Of 2)
G99F50026Courtesy of AMERICAN HONDA MOTOR CO., INC.

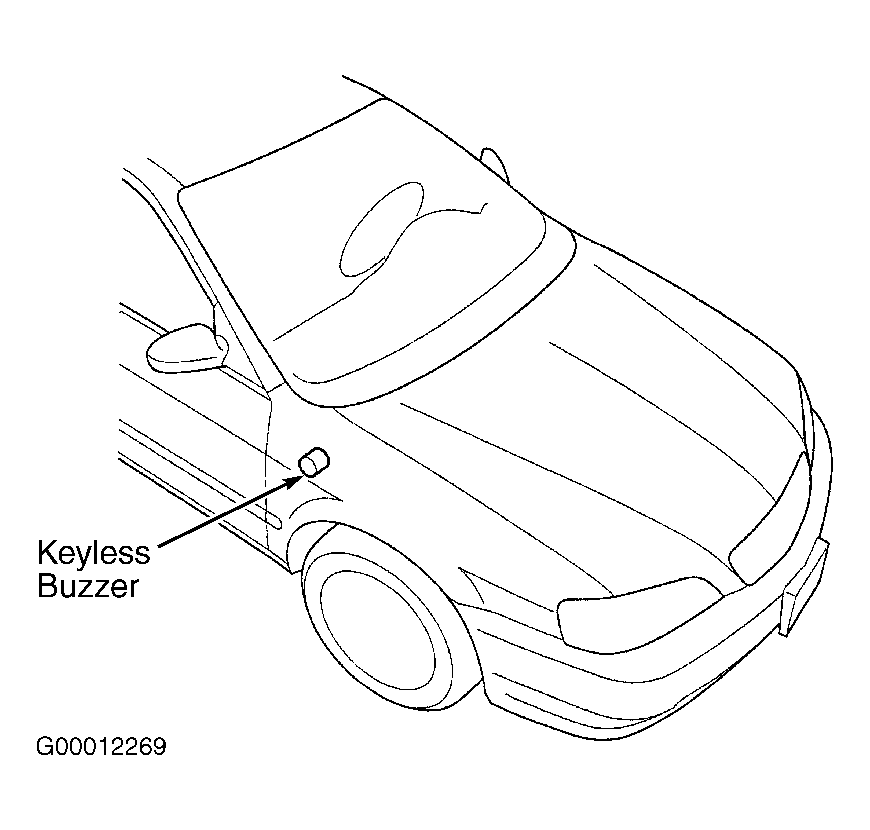

Fig 2: Locating Anti-Theft Components (2 Of 2)
G00012269Courtesy of AMERICAN HONDA MOTOR CO., INC.
